9
|
Web interface operation
9.2.10

Flex Mount: Moving the reference surface

Moving the reference surface after teaching in is necessary if you want to deduct the thickness
of the auxiliary plate used during teaching in, for example.
Example: When using the Delta Height function within Parametrization | Measurement Tools,
the taught-in reference surface impairs the measurement result.

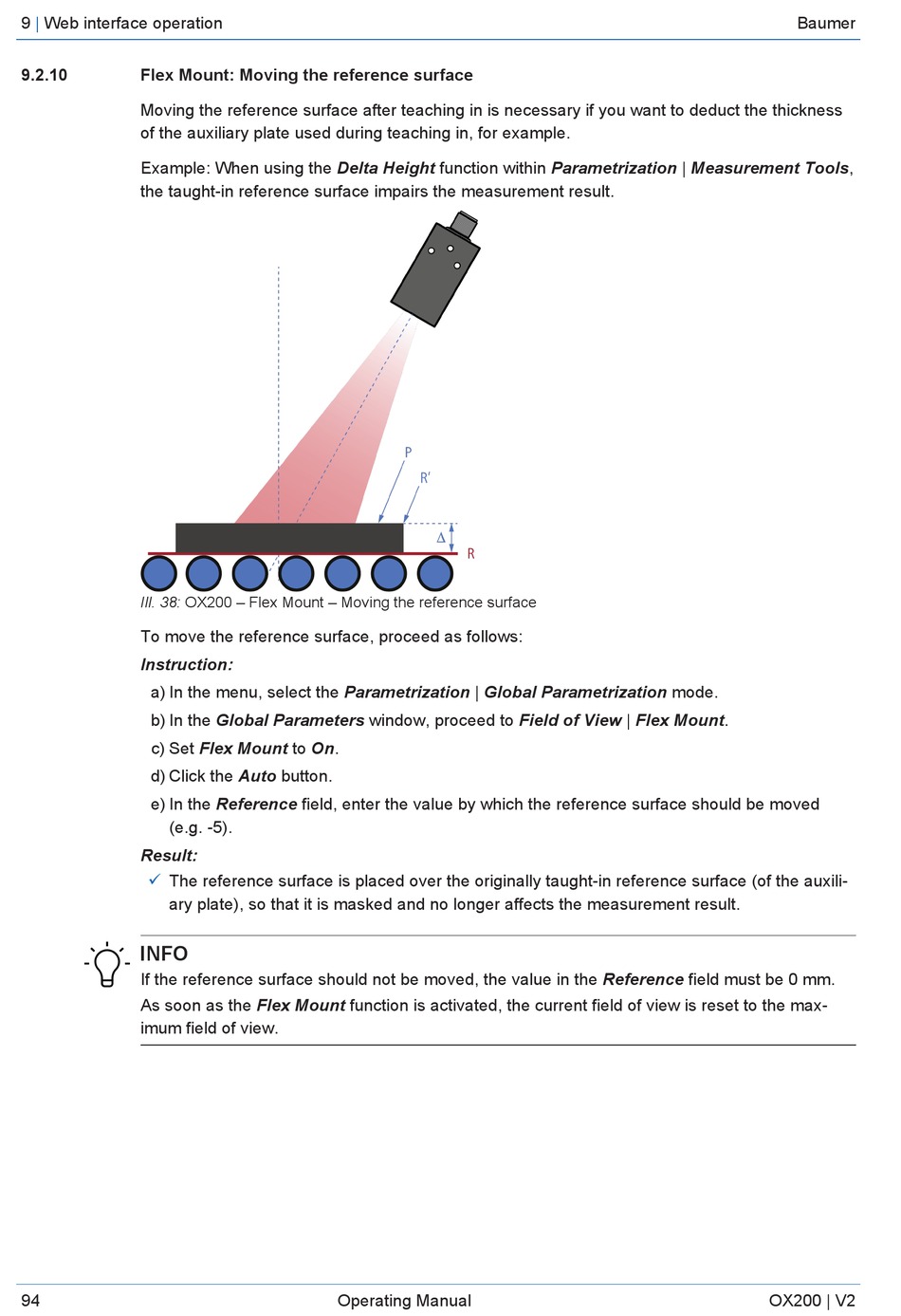

Ill. 38: OX200 – Flex Mount – Moving the reference surface
To move the reference surface, proceed as follows:
Instruction:
a) In the menu, select the Parametrization | Global Parametrization mode.
b) In the Global Parameters window, proceed to Field of View | Flex Mount.
c) Set Flex Mount to On.
d) Click the Auto button.
e) In the Reference field, enter the value by which the reference surface should be moved
(e.g. -5).
Result:
ü
The reference surface is placed over the originally taught-in reference surface (of the auxili-
ary plate), so that it is masked and no longer affects the measurement result.
INFO
If the reference surface should not be moved, the value in the Reference field must be 0 mm.
As soon as the Flex Mount function is activated, the current field of view is reset to the max-
imum field of view.
94
Operating Manual
Baumer
OX200 | V2
