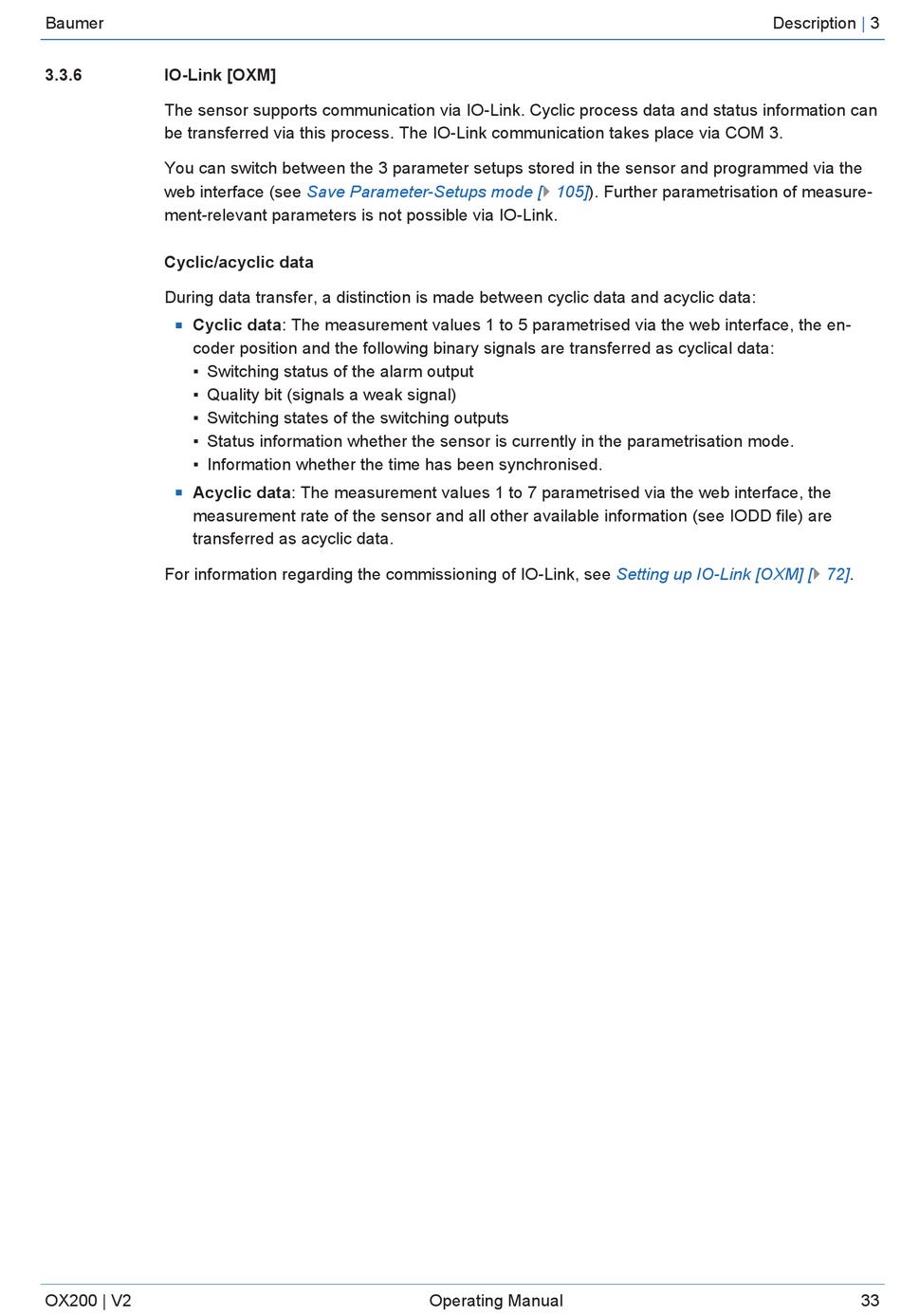

IO-Link [OXM]

The sensor supports communication via IO-Link. Cyclic process data and status information can
be transferred via this process. The IO-Link communication takes place via COM 3.
You can switch between the 3 parameter setups stored in the sensor and programmed via the
web interface (see
ment-relevant parameters is not possible via IO-Link.
Cyclic/acyclic data
During data transfer, a distinction is made between cyclic data and acyclic data:
Cyclic data: The measurement values 1 to 5 parametrised via the web interface, the en-
n
coder position and the following binary signals are transferred as cyclical data:
▪ Switching status of the alarm output
▪ Quality bit (signals a weak signal)
▪ Switching states of the switching outputs
▪ Status information whether the sensor is currently in the parametrisation mode.
▪ Information whether the time has been synchronised.
Acyclic data: The measurement values 1 to 7 parametrised via the web interface, the
n
measurement rate of the sensor and all other available information (see IODD file) are
transferred as acyclic data.
For information regarding the commissioning of IO-Link, see
