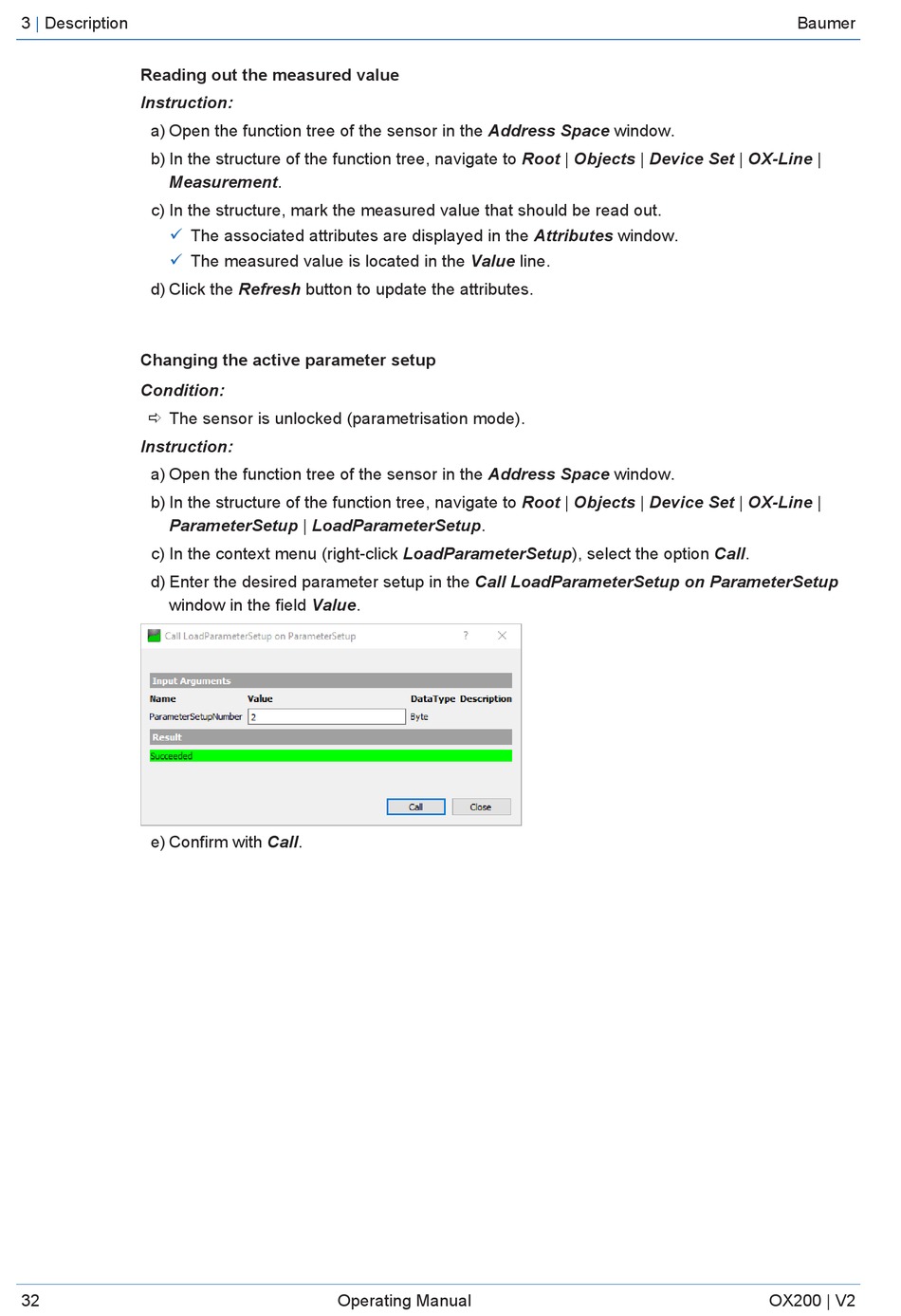

3
|
Description
Reading out the measured value
Instruction:
a) Open the function tree of the sensor in the Address Space window.
b) In the structure of the function tree, navigate to Root | Objects | Device Set | OX-Line |
Measurement.
c) In the structure, mark the measured value that should be read out.
ü
The associated attributes are displayed in the Attributes window.
ü
The measured value is located in the Value line.
d) Click the Refresh button to update the attributes.
Changing the active parameter setup
Condition:
ð The sensor is unlocked (parametrisation mode).
Instruction:
a) Open the function tree of the sensor in the Address Space window.
b) In the structure of the function tree, navigate to Root | Objects | Device Set | OX-Line |
ParameterSetup | LoadParameterSetup.
c) In the context menu (right-click LoadParameterSetup), select the option Call.
d) Enter the desired parameter setup in the Call LoadParameterSetup on ParameterSetup
window in the field Value.
e) Confirm with Call.
32
Operating Manual
Baumer
OX200 | V2
