Web interface description

8.1

Functions and tasks

The web interface offers users the option of configuring the sensor in a simple yet precise way.
The web interface can be used for the configuration of sensor parameters as well as paramet-
risation of the application-specific measuring tasks. The web interface allows you to visualise
what the sensor "sees", so you can use this information to precisely adjust the sensor to the
given conditions.
8.2

Description of the user interface

1
2
3
4

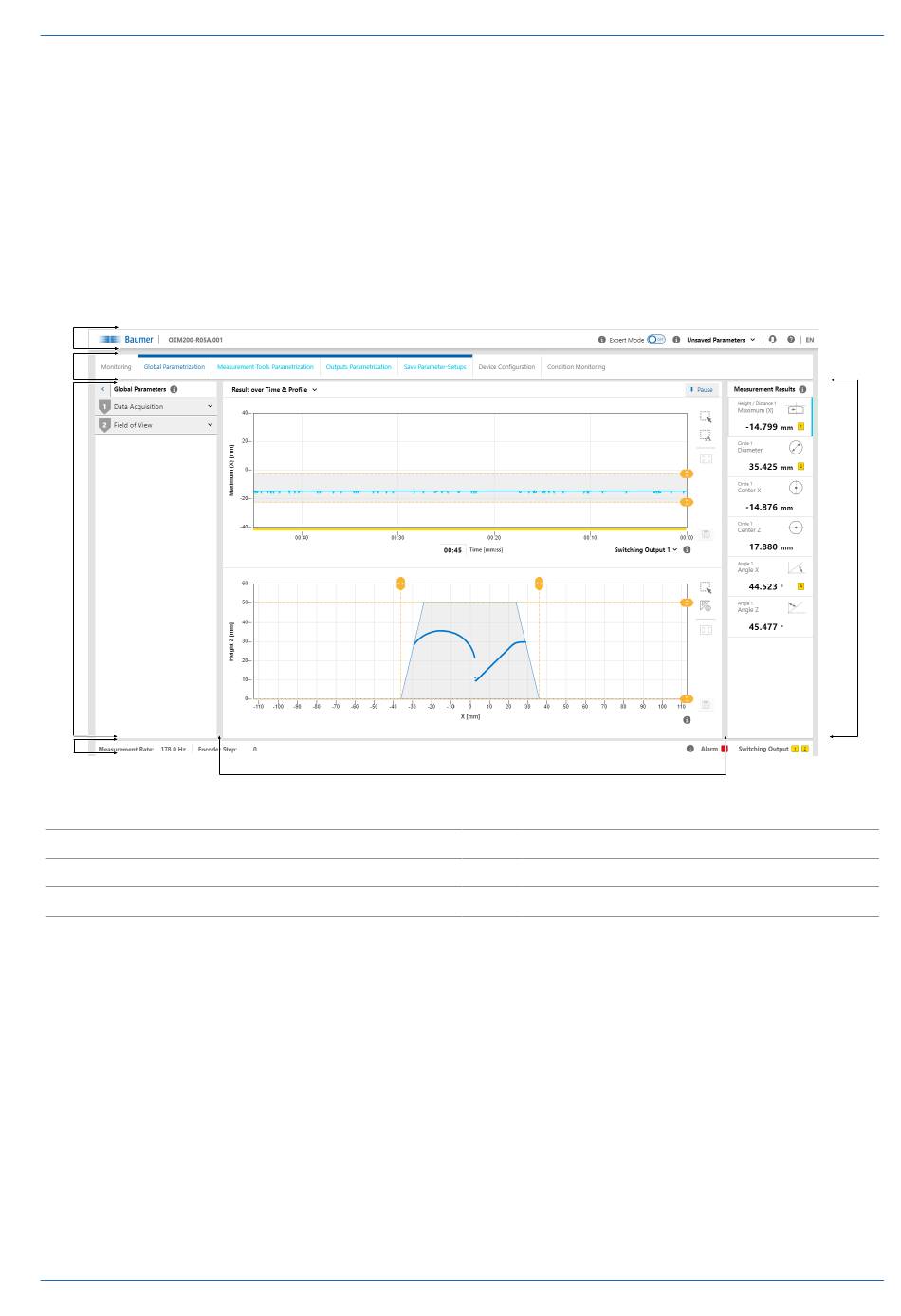

Ill. 26: Web interface – user interface
1
Header area
3
Parametrisation area
5
Visualisation area
OX200 | V2
5
2
Menu bar
4
Footer area
6
Measurement Results window
Operating Manual
