9
|
Web interface operation

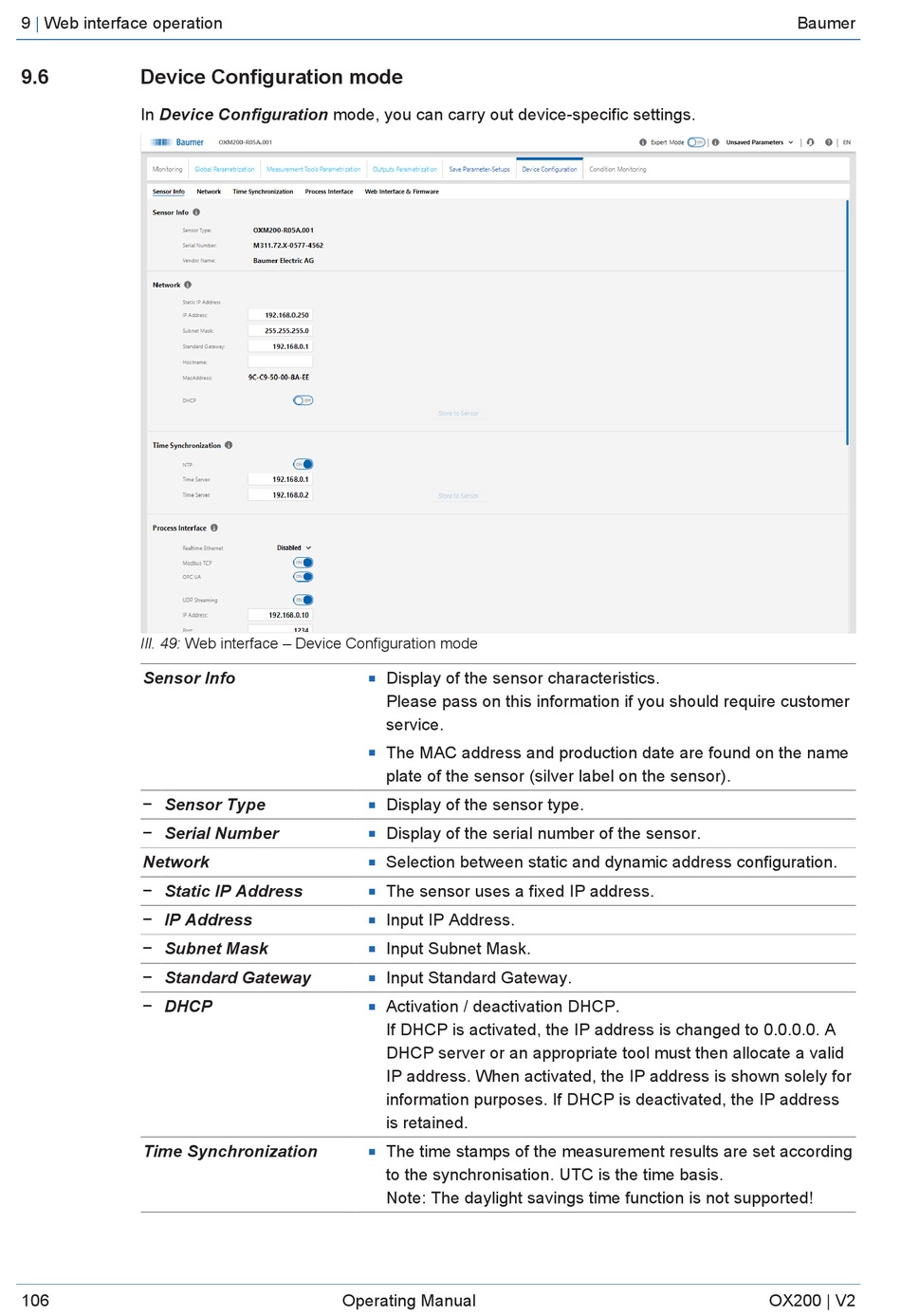

9.6

Device Configuration mode

In Device Configuration mode, you can carry out device-specific settings.
Ill. 49: Web interface – Device Configuration mode
Sensor Info
− Sensor Type
− Serial Number
Network
− Static IP Address
− IP Address
− Subnet Mask
− Standard Gateway
− DHCP
Time Synchronization
106
Display of the sensor characteristics.
n
Please pass on this information if you should require customer
service.
The MAC address and production date are found on the name
n
plate of the sensor (silver label on the sensor).
Display of the sensor type.
n
Display of the serial number of the sensor.
n
Selection between static and dynamic address configuration.
n
The sensor uses a fixed IP address.
n
Input IP Address.
n
Input Subnet Mask.
n
Input Standard Gateway.
n
Activation / deactivation DHCP.
n
If DHCP is activated, the IP address is changed to 0.0.0.0. A
DHCP server or an appropriate tool must then allocate a valid
IP address. When activated, the IP address is shown solely for
information purposes. If DHCP is deactivated, the IP address
is retained.
The time stamps of the measurement results are set according
n
to the synchronisation. UTC is the time basis.
Note: The daylight savings time function is not supported!
Operating Manual
Baumer
OX200 | V2
