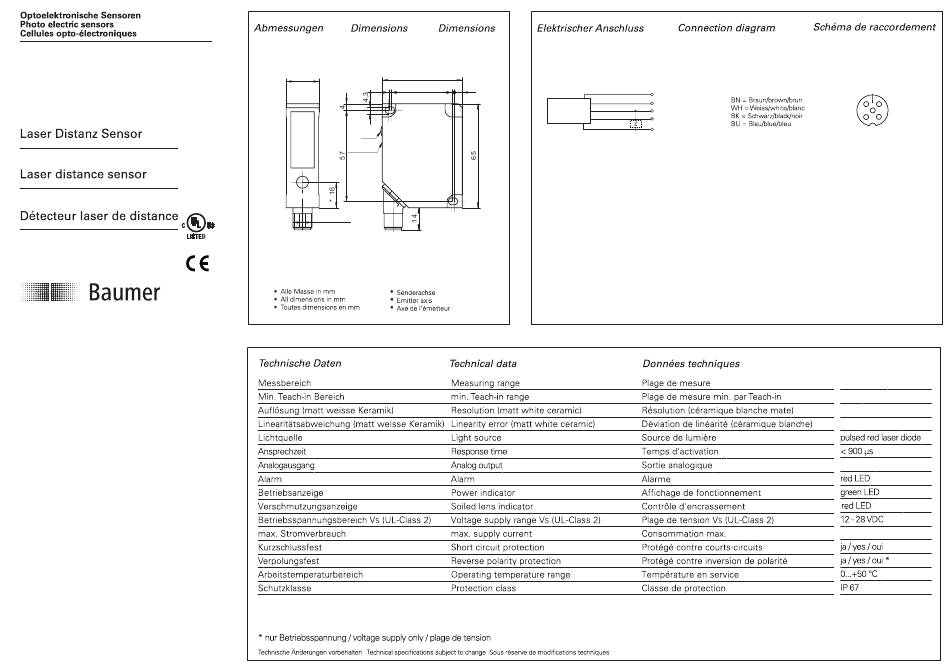

Baumer OADM 20U2472/S14C Manual

OADM 20U2472/S14C
Í?+'mDÂÂ*Â:Î
IND. CONT. EQ.
1DD2
11077736
Baumer Electric AG · CH-8501 Frauenfeld
Phone +41 (0)52 728 1122 · Fax +41 (0)52 728 1144
Canada Italy
Baumer Inc. Baumer Italia S.r.l.
CA-Burlington, ON L7M 4B9 IT-20090 Assago, MI
Phone +1 (1)905 335-8444 Phone +39 (0)2 45 70 60 65
China Singapore
Baumer (China) Co., Ltd. Baumer (Singapore) Pte. Ltd.
CN-201612 Shanghai SG-339412 Singapore
Phone +86 (0)21 6768 7095 Phone +65 6396 4131
Denmark Sweden
Baumer A/S Baumer A/S
DK-8210 Aarhus V SE-56133 Huskvarna
Phone +45 (0)8931 7611 Phone +46 (0)36 13 94 30
France Switzerland
Baumer SAS Baumer Electric AG
FR-74250 Fillinges CH-8501 Frauenfeld
Phone +33 (0)450 392 466 Phone +41 (0)52 728 1313
Germany United Kingdom
Baumer GmbH Baumer Ltd.
DE-61169 Friedberg GB-Watchfield, Swindon, SN6 8TZ
Phone +49 (0)6031 60 07 0 Phone +44 (0)1793 783 839
India USA
Baumer India Private Limited Baumer Ltd.
IN-411038 Pune US-Southington, CT 06489
Phone +91 20 2528 6833/34 Phone +1 (1)860 621-2121
www.baumer.com/worldwide
1/4
50
20,6
1,5 38 1,5 5
LED
Teach-in
M12 x 1
If external Teach-In option is not
Wird der externe Teach-In Eingang
used, the Teach-In wire must be
nicht verwendet, muss er auf GND
attached to GND.
gelegt werden.
BN (1)
+Vs
BK (4)
n.c.
WH (2)
Analog
U
OUT
GY (5)
teach-in
BU (3)
0 V
Dans le cas ou le Teach-in externe
n'est pas utilisé, il faut le raccorder
avec GND.
teach-in
n.c. 0 V
3
4
5
1 2
U
+Vs
GY = Grau/grey/gris OUT
50...300 mm
> 5 mm
0,01...0,33 mm
±0,03...±1,0 mm
0...10 VDC
< 100 mA
