9
|
Web interface operation
9.2.8

Mounting Assistant

INFO
Baumer recommends mounting the sensor at a right angle to the reference surface of the meas-
uring object. The Mounting Assistant function of the web interface supports you with this. If
90° mounting is not possible, the Flex Mount function allows compensation of a mounting angle
up to ±30° (see
The Mounting Assistant function provides you with the tilt angle and the distance to the refer-
ence surface R detected in the field of view (see the following figure).

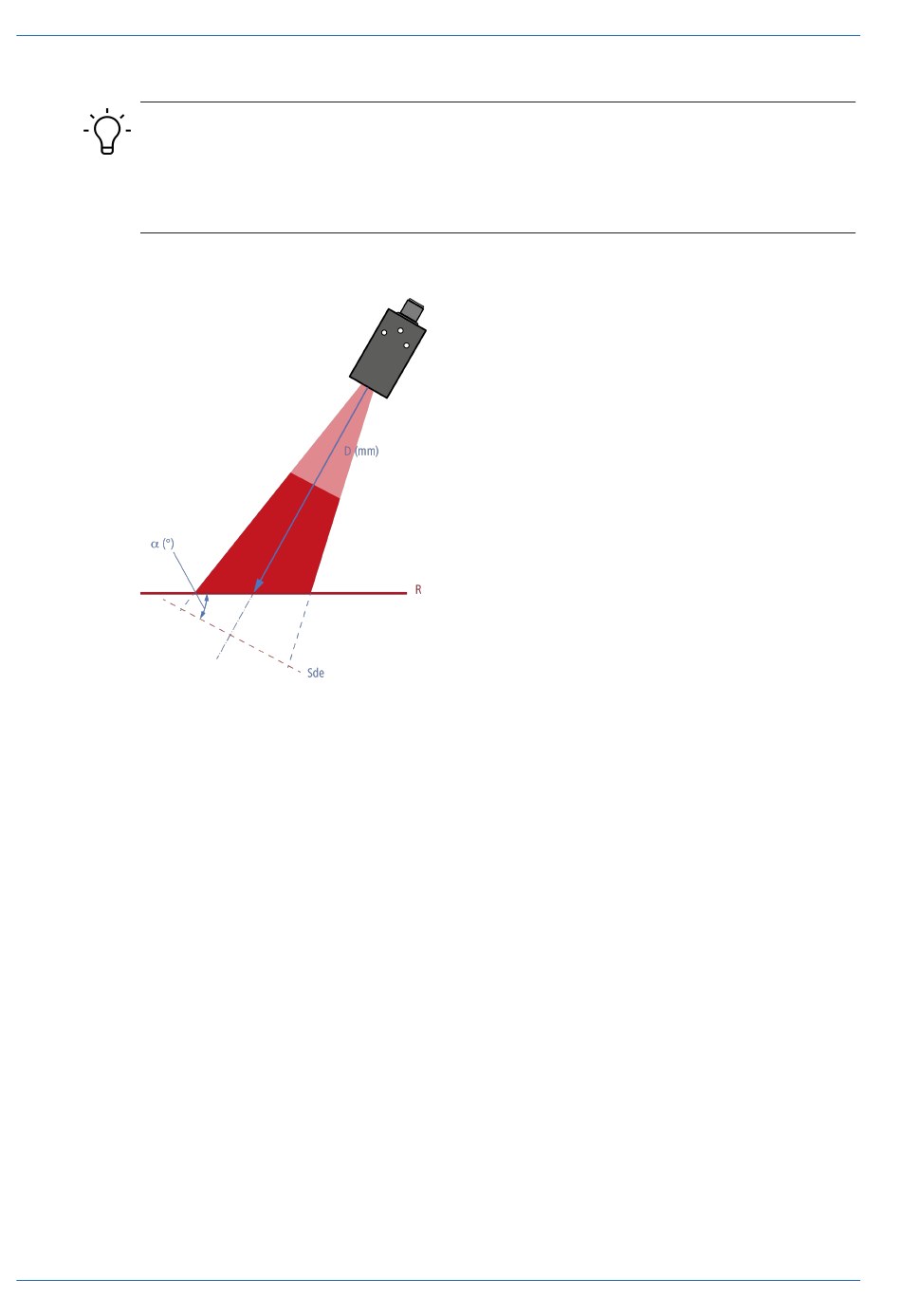

Ill. 34: OX200 – Tilt angle and distance to the reference surface
To position the sensor, proceed as follows:
Instruction:
a) In the menu, select the Parametrization | Global Parametrization mode.
b) In the Global Parameters window, proceed to Field of View | Mounting Assistant.
c) Position the sensor.
90
Flex Mount: Compensating mounting angles
Operating Manual
[} 91]).
Baumer
OX200 | V2
