Description
Transmission and receiving axis
The transmission and receiving axes can lie in the areas shown in blue in the figures below. The
exact axes depend on the position of the object. Objects that should not be measured should be
kept away from this area as they can interfere with the measurement and lead to incorrect
measurement values.

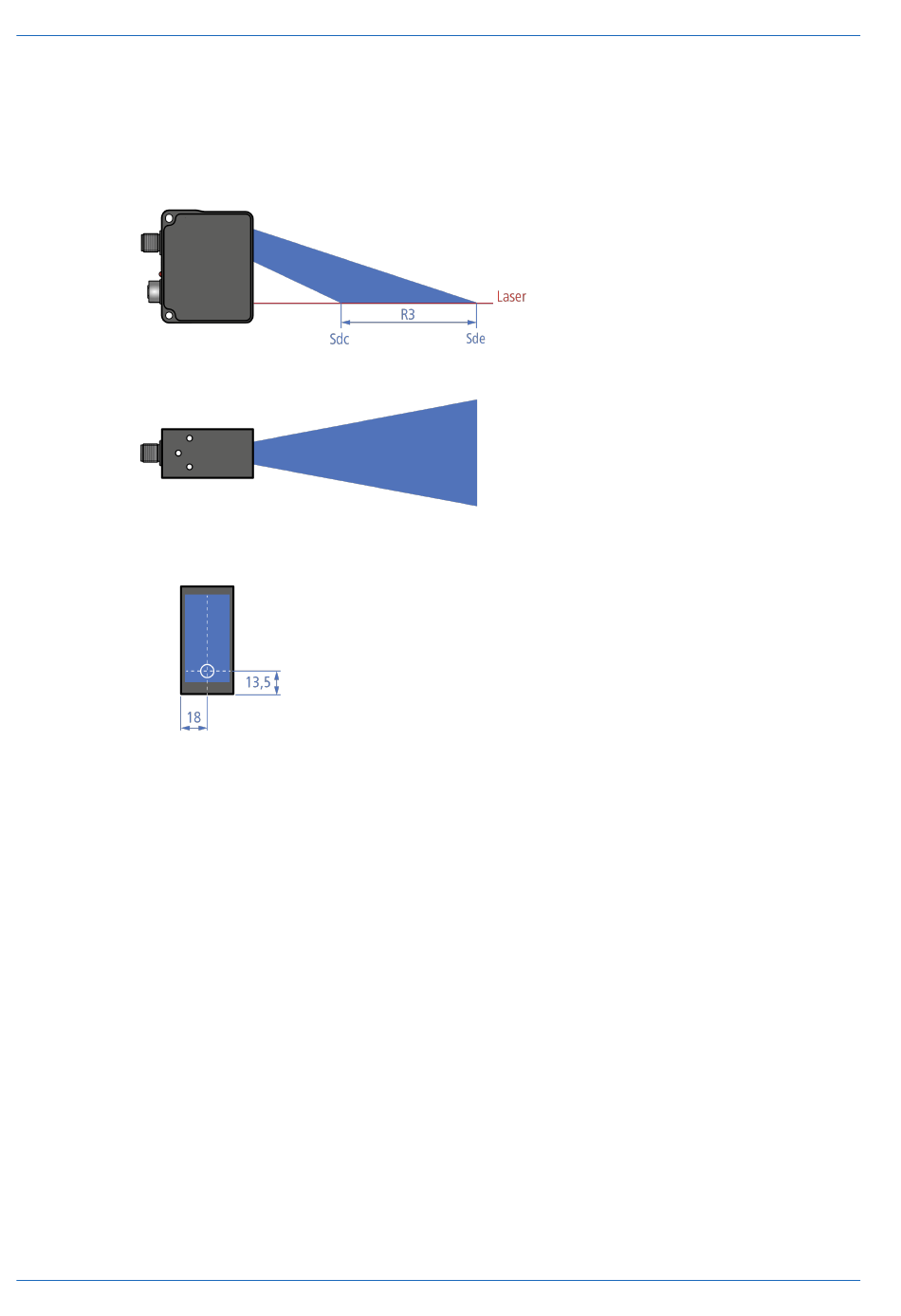

Ill. 10: OX200 – Transmission and receiving axes
