9
|
Web interface operation
9.4

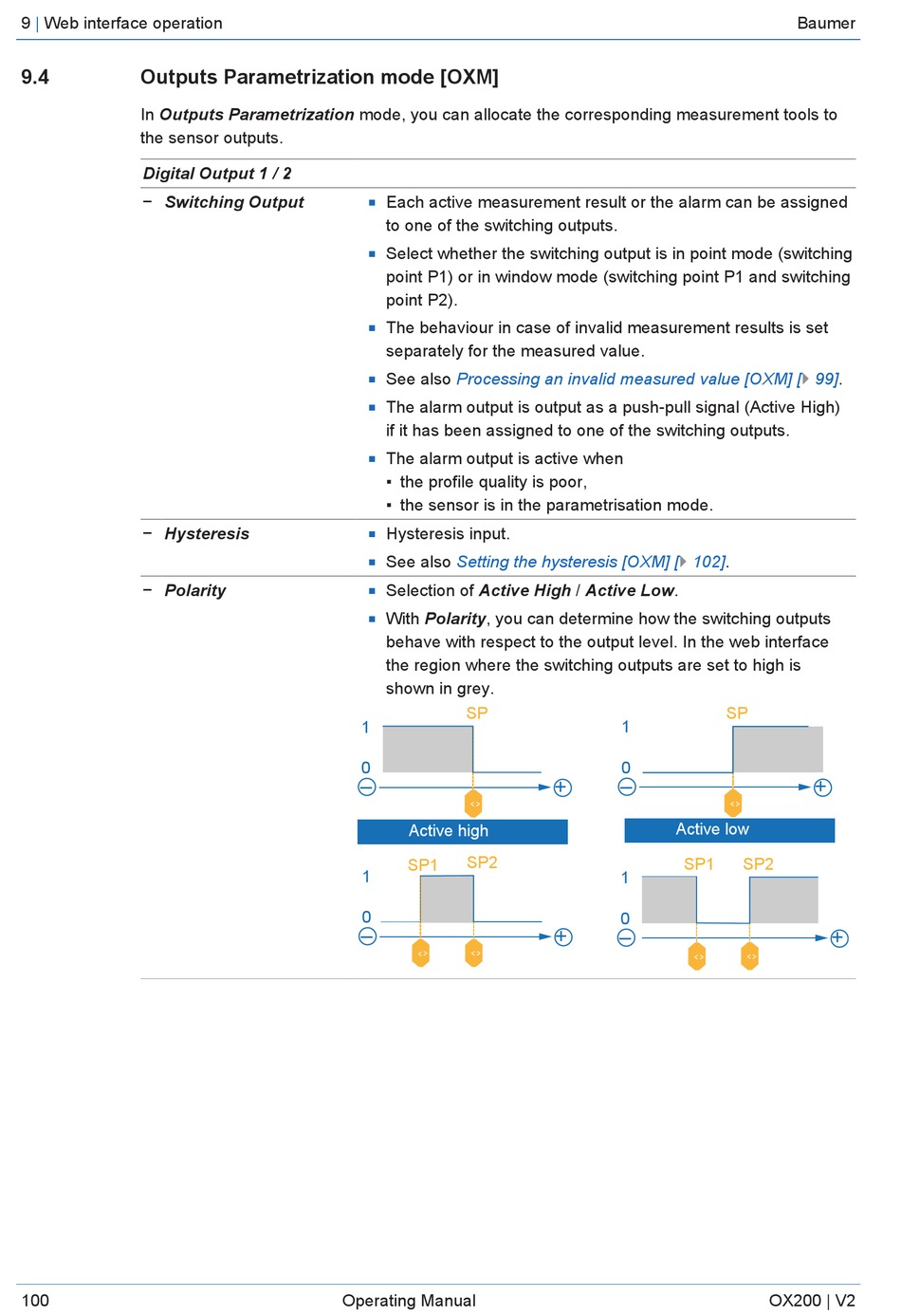

Outputs Parametrization mode [OXM]

In Outputs Parametrization mode, you can allocate the corresponding measurement tools to
the sensor outputs.
Digital Output 1 / 2
− Switching Output
− Hysteresis
− Polarity
100
Each active measurement result or the alarm can be assigned
n
to one of the switching outputs.
Select whether the switching output is in point mode (switching
n
point P1) or in window mode (switching point P1 and switching
point P2).
The behaviour in case of invalid measurement results is set
n
separately for the measured value.
See also
Processing an invalid measured value [OXM]
n
The alarm output is output as a push-pull signal (Active High)
n
if it has been assigned to one of the switching outputs.
The alarm output is active when
n
▪ the profile quality is poor,
▪ the sensor is in the parametrisation mode.
Hysteresis input.
n
See also
Setting the hysteresis [OXM]
n
Selection of Active High / Active Low.
n
With Polarity, you can determine how the switching outputs
n
behave with respect to the output level. In the web interface
the region where the switching outputs are set to high is
shown in grey.
SP
1
0
Active high
SP2
SP1
1
0
Operating Manual
[} 102].
1
0
+
Active low
SP1
1
0
+
Baumer
[} 99].
SP
+
SP2
+
OX200 | V2
