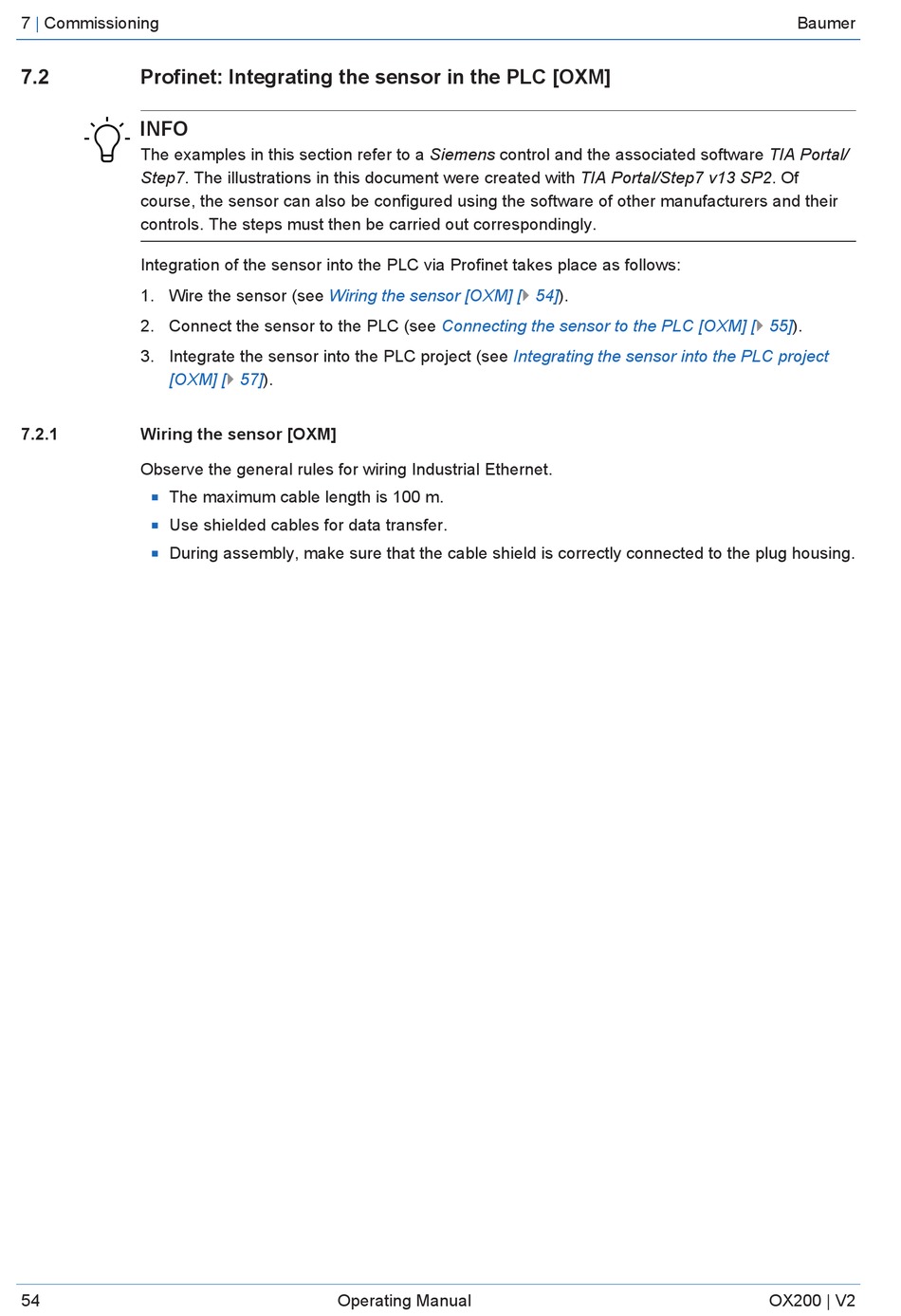

Profinet: Integrating The Sensor In The Plc [Oxm]; Wiring The Sensor [Oxm] - Baumer OX200 Operating Manual

7 | Commissioning
7.2

Profinet: Integrating the sensor in the PLC [OXM]

INFO
The examples in this section refer to a Siemens control and the associated software TIA Portal/
Step7. The illustrations in this document were created with TIA Portal/Step7 v13 SP2. Of
course, the sensor can also be configured using the software of other manufacturers and their
controls. The steps must then be carried out correspondingly.
Integration of the sensor into the PLC via Profinet takes place as follows:
1. Wire the sensor (see
2. Connect the sensor to the PLC (see
3. Integrate the sensor into the PLC project (see
[OXM]
7.2.1

Wiring the sensor [OXM]

Observe the general rules for wiring Industrial Ethernet.
The maximum cable length is 100 m.
n
Use shielded cables for data transfer.
n
During assembly, make sure that the cable shield is correctly connected to the plug housing.
n
54
Wiring the sensor [OXM]
[} 57]).
Operating Manual
[} 54]).
Connecting the sensor to the PLC [OXM]
Integrating the sensor into the PLC project
Baumer
[} 55]).
OX200 | V2
