Description
The time between two exposure periods is called the measurement repeat time, which can be
converted into a measurement frequency. The calculated measurement frequency indicates
how many measurement results the sensor can output per second.
Formula for calculating the measurement frequency:
n
▪ Measurement frequency [kHz] = 1 / Measurement repeat time [ms]
3.1.3

Reference surfaces

The purpose of the reference surfaces R1 to R3 presented below is to facilitate alignment of the
sensor during mounting and commissioning.

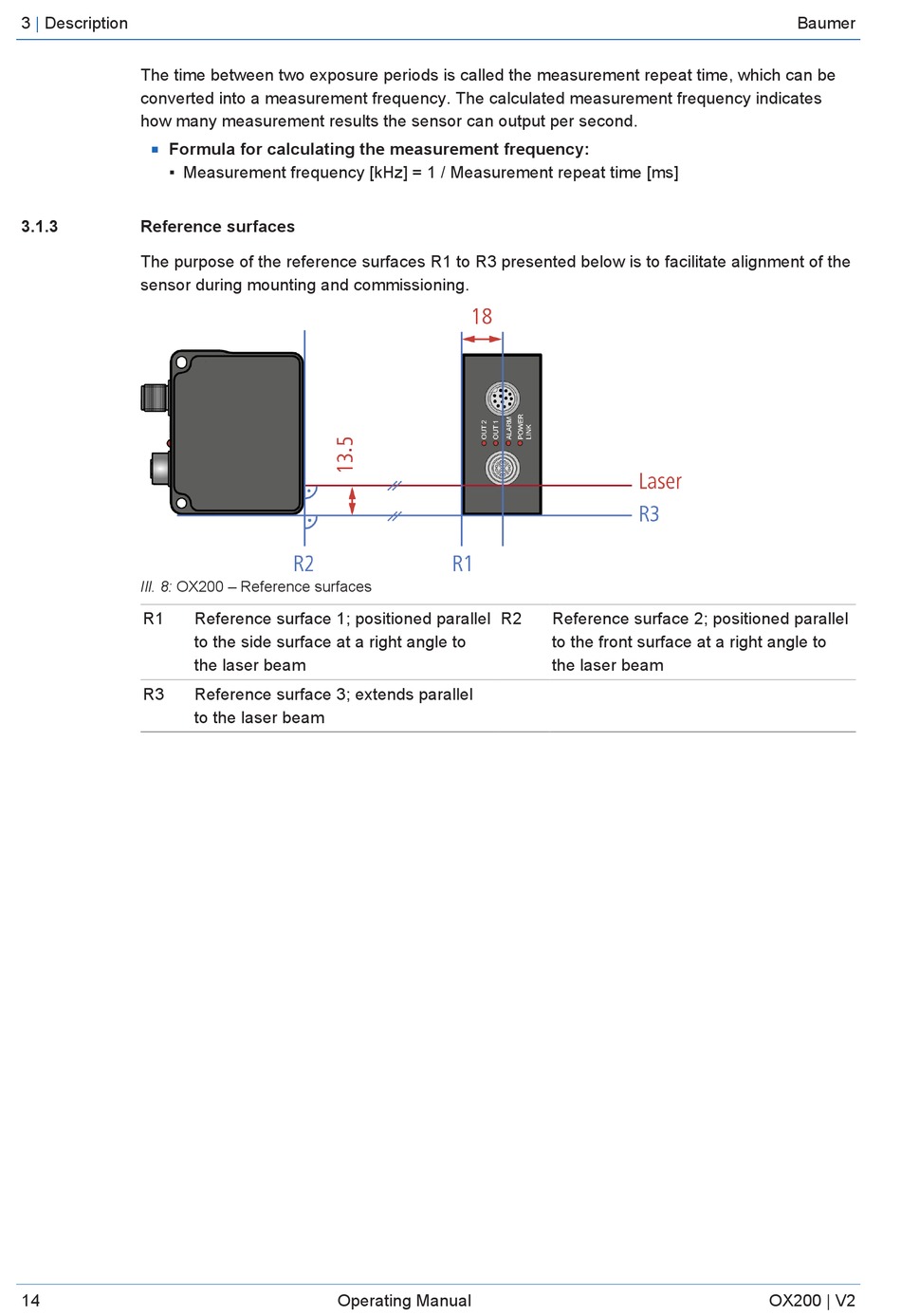

Ill. 8: OX200 – Reference surfaces
R1
R3
14
.
Reference surface 1; positioned parallel
to the side surface at a right angle to
the laser beam
Reference surface 3; extends parallel
to the laser beam
Operating Manual
R2
Reference surface 2; positioned parallel
to the front surface at a right angle to
the laser beam
Baumer
OX200 | V2
