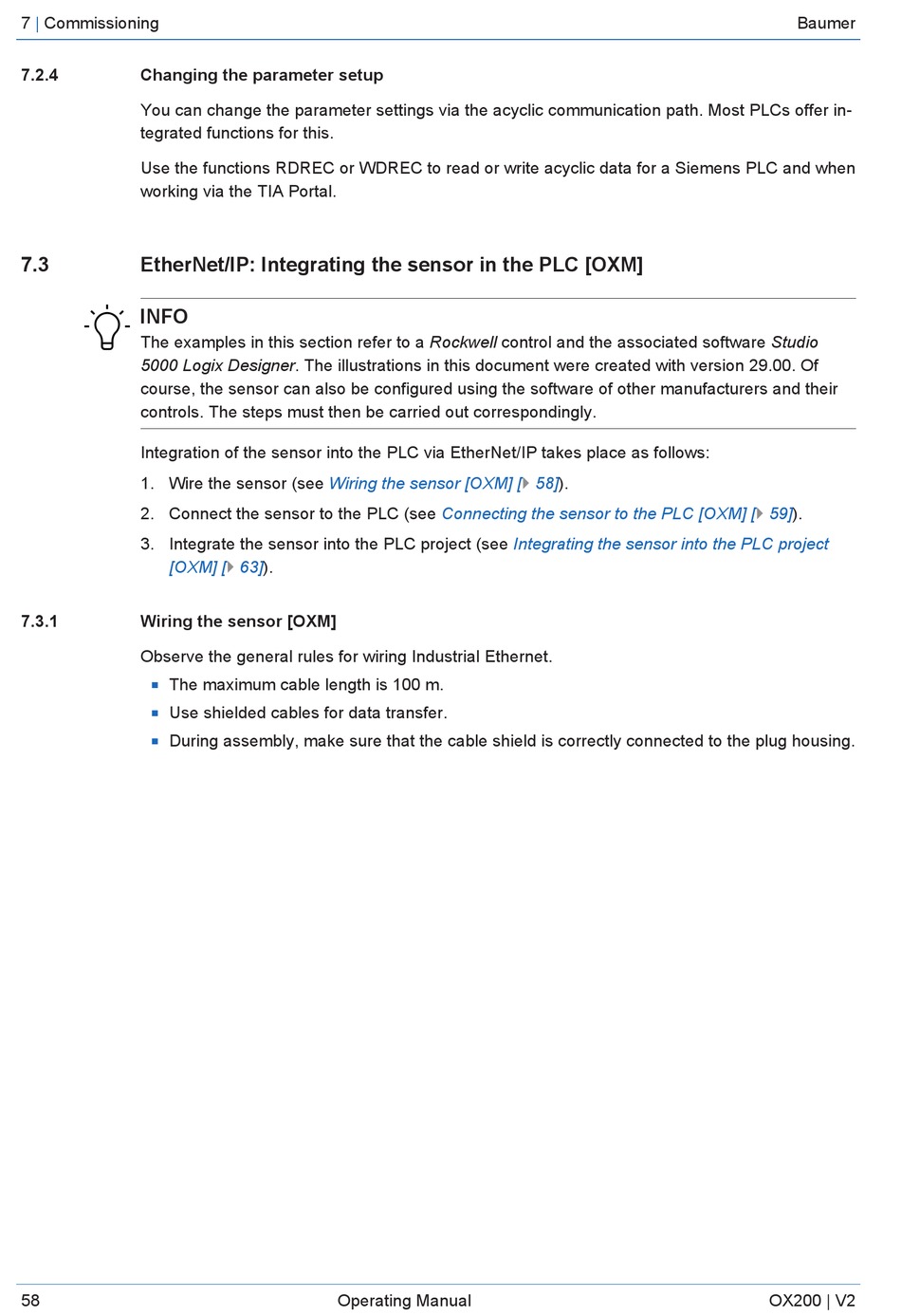

Changing the parameter setup

You can change the parameter settings via the acyclic communication path. Most PLCs offer in-
tegrated functions for this.
Use the functions RDREC or WDREC to read or write acyclic data for a Siemens PLC and when
working via the TIA Portal.
7.3

EtherNet/IP: Integrating the sensor in the PLC [OXM]

INFO
The examples in this section refer to a Rockwell control and the associated software Studio
5000 Logix Designer. The illustrations in this document were created with version 29.00. Of
course, the sensor can also be configured using the software of other manufacturers and their
controls. The steps must then be carried out correspondingly.
Integration of the sensor into the PLC via EtherNet/IP takes place as follows:
1. Wire the sensor (see
2. Connect the sensor to the PLC (see
3. Integrate the sensor into the PLC project (see
[OXM]
7.3.1

Wiring the sensor [OXM]

Observe the general rules for wiring Industrial Ethernet.
The maximum cable length is 100 m.
n
Use shielded cables for data transfer.
n
During assembly, make sure that the cable shield is correctly connected to the plug housing.
n
58
Wiring the sensor [OXM]
[} 63]).
Operating Manual
[} 58]).
Connecting the sensor to the PLC [OXM]
Integrating the sensor into the PLC project
Baumer
[} 59]).
OX200 | V2
