Description
3.2.2

Sensor LEDs

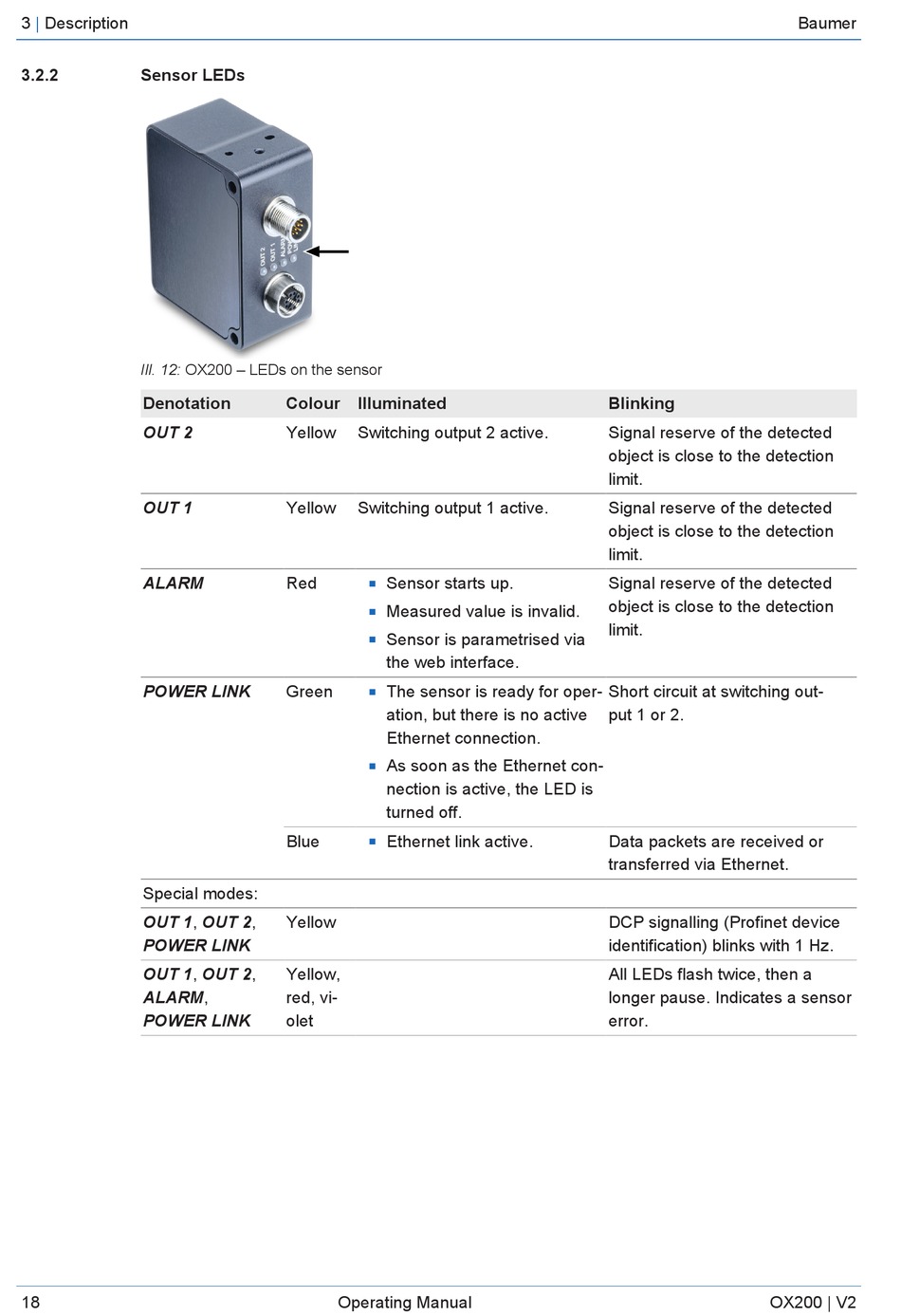

Ill. 12: OX200 – LEDs on the sensor
Denotation
OUT 2
OUT 1
ALARM
POWER LINK
Special modes:
OUT 1, OUT 2,
POWER LINK
OUT 1, OUT 2,
ALARM,
POWER LINK
18
Colour Illuminated
Yellow
Switching output 2 active.
Yellow
Switching output 1 active.
Red
Sensor starts up.
n
Measured value is invalid.
n
Sensor is parametrised via
n
the web interface.
Green
The sensor is ready for oper-
n
ation, but there is no active
Ethernet connection.
As soon as the Ethernet con-
n
nection is active, the LED is
turned off.
Blue
Ethernet link active.
n
Yellow
Yellow,
red, vi-
olet
Operating Manual
Blinking
Signal reserve of the detected
object is close to the detection
limit.
Signal reserve of the detected
object is close to the detection
limit.
Signal reserve of the detected
object is close to the detection
limit.
Short circuit at switching out-
put 1 or 2.
Data packets are received or
transferred via Ethernet.
DCP signalling (Profinet device
identification) blinks with 1 Hz.
All LEDs flash twice, then a
longer pause. Indicates a sensor
error.
