Mounting the sensor

Mounting the sensor on the side

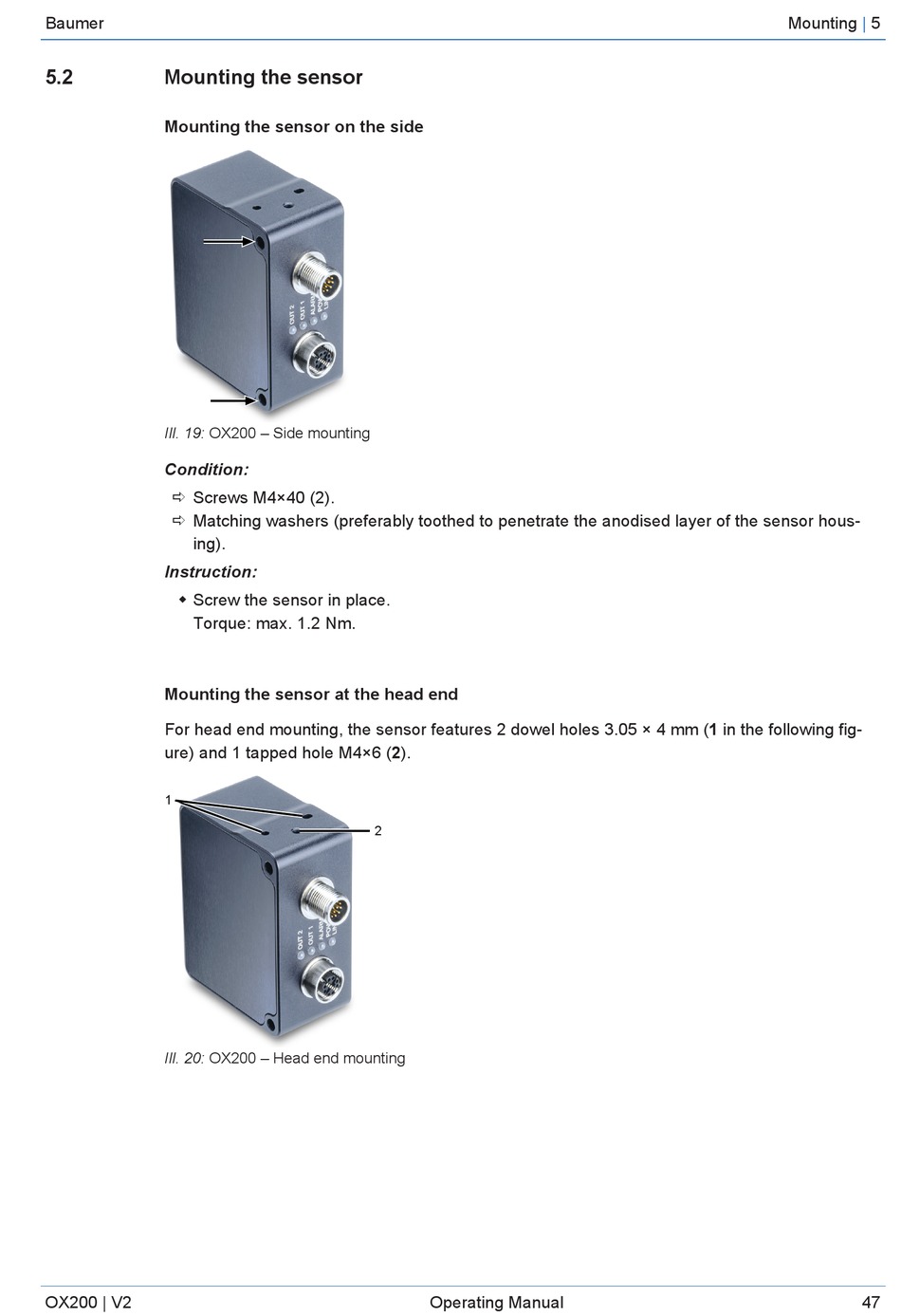

Ill. 19: OX200 – Side mounting
Condition:
ð Screws M4×40 (2).
ð Matching washers (preferably toothed to penetrate the anodised layer of the sensor hous-
ing).
Instruction:
w Screw the sensor in place.
Torque: max. 1.2 Nm.
Mounting the sensor at the head end
For head end mounting, the sensor features 2 dowel holes 3.05 × 4 mm (1 in the following fig-
ure) and 1 tapped hole M4×6 (2).
1
Ill. 20: OX200 – Head end mounting
OX200 | V2
2
Operating Manual
Mounting
|
