9 | Web interface operation
Time [mm:ss]
9.1.1

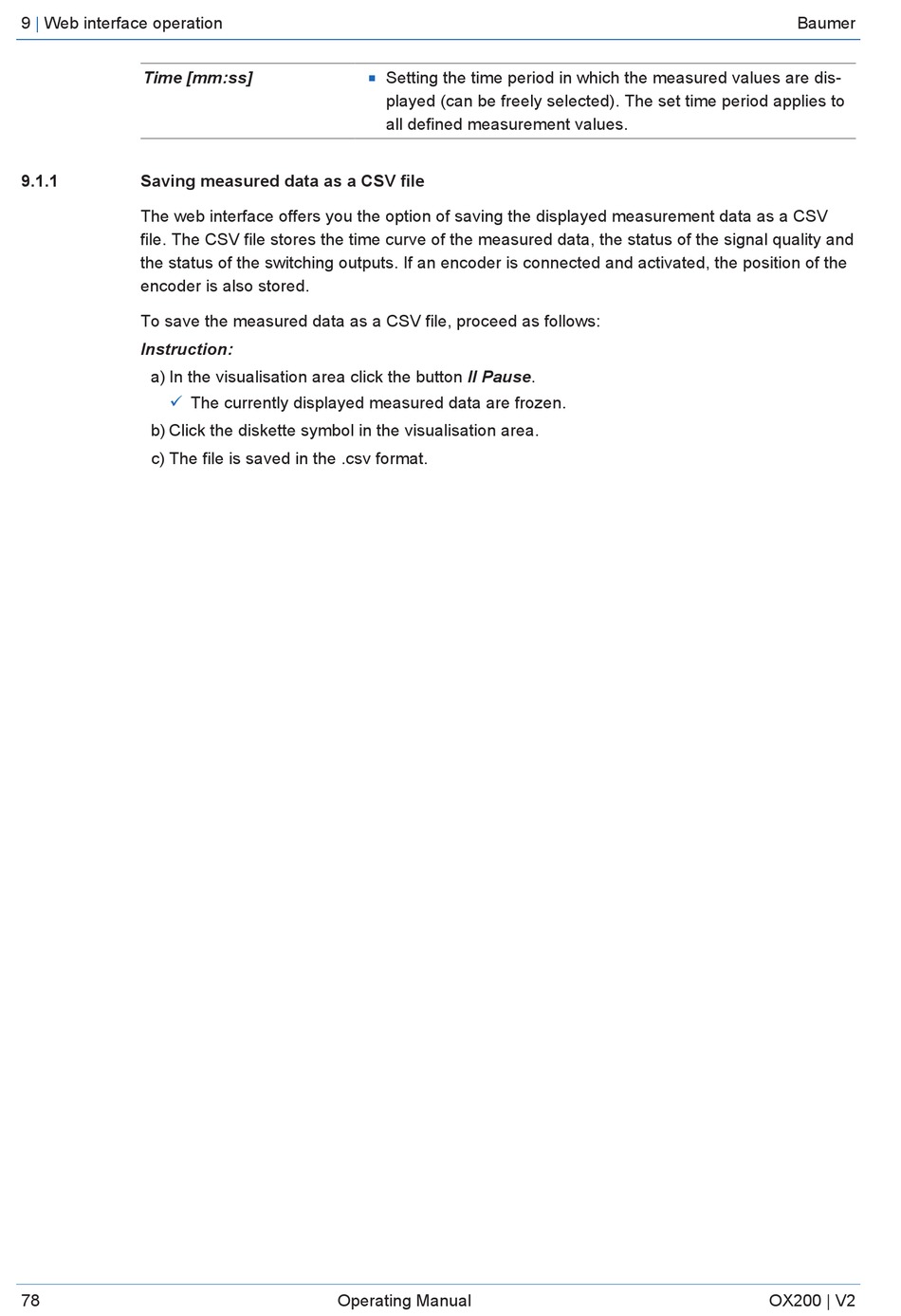

Saving measured data as a CSV file

The web interface offers you the option of saving the displayed measurement data as a CSV
file. The CSV file stores the time curve of the measured data, the status of the signal quality and
the status of the switching outputs. If an encoder is connected and activated, the position of the
encoder is also stored.
To save the measured data as a CSV file, proceed as follows:
Instruction:
a) In the visualisation area click the button II Pause.
ü
The currently displayed measured data are frozen.
b) Click the diskette symbol in the visualisation area.
c) The file is saved in the .csv format.
78
Setting the time period in which the measured values are dis-
n
played (can be freely selected). The set time period applies to
all defined measurement values.
