Electrical installation
Electrical connection for the OXP version

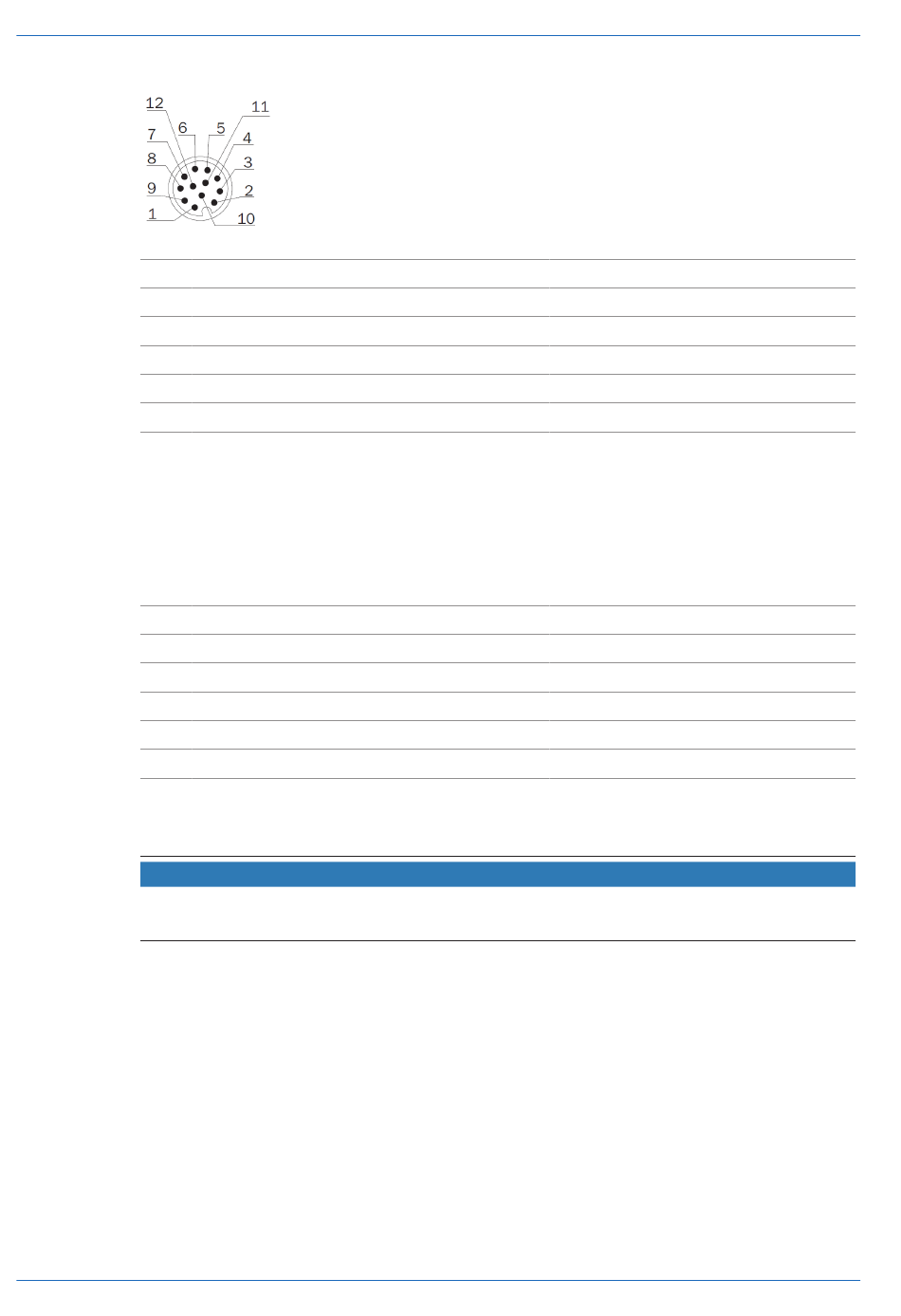

Ill. 23: OXP200 – Electrical connection, M12 12-pin, A-coded, male
1
3
5
7
9
11
It is recommended to connect the unused inputs and the cable shield to GND (0V). Outputs
designated as NC can be connected, but do not have to be. Outputs designated as DNC must
remain open.
Any unused inputs and the cable shield must be connected to GND (0V).
Wire labelling according to DIN IEC 757
1
3
5
7
9
11
6.2

Connecting the sensor to electricity

NOTICE
Use either a power supply unit or a PoE switch for the sensor power supply. The PoE switch
must comply with the Standard IEEE 802.3af.
Instruction:
a) Ensure that the system is disconnected from power.
b) Connect the sensor according to the pin assignment.
50
Power (18 ... 30 VDC)
Encoder A
Encoder A neg.
Encoder B
IN 1 (sync in)
Power (18 ... 30 VDC)
BN – Brown
WH – White
PK – Pink
BK – Black
RD – Red
GY-PK – Grey Pink
Operating Manual
2
GND
4
DNC
6
OUT 1
8
DNC
10
Encoder B neg.
12
GND
2
BU – Blue
4
GN – Green
6
YE – Yellow
8
GY – Grey
10
VT – Violet
12
RD-BU – Red Blue
Baumer
OX200 | V2
