Web interface operation

9.1

Monitoring mode

In Monitoring mode, the time curve of the measured value selected in the Measurement Res-
ults window (see
addition, there are various setting options for the display of the measurement results. The grey
background and the dotted orange lines indicate the switching output window or the switching
point.
In Monitoring mode, no parameters can be changed.

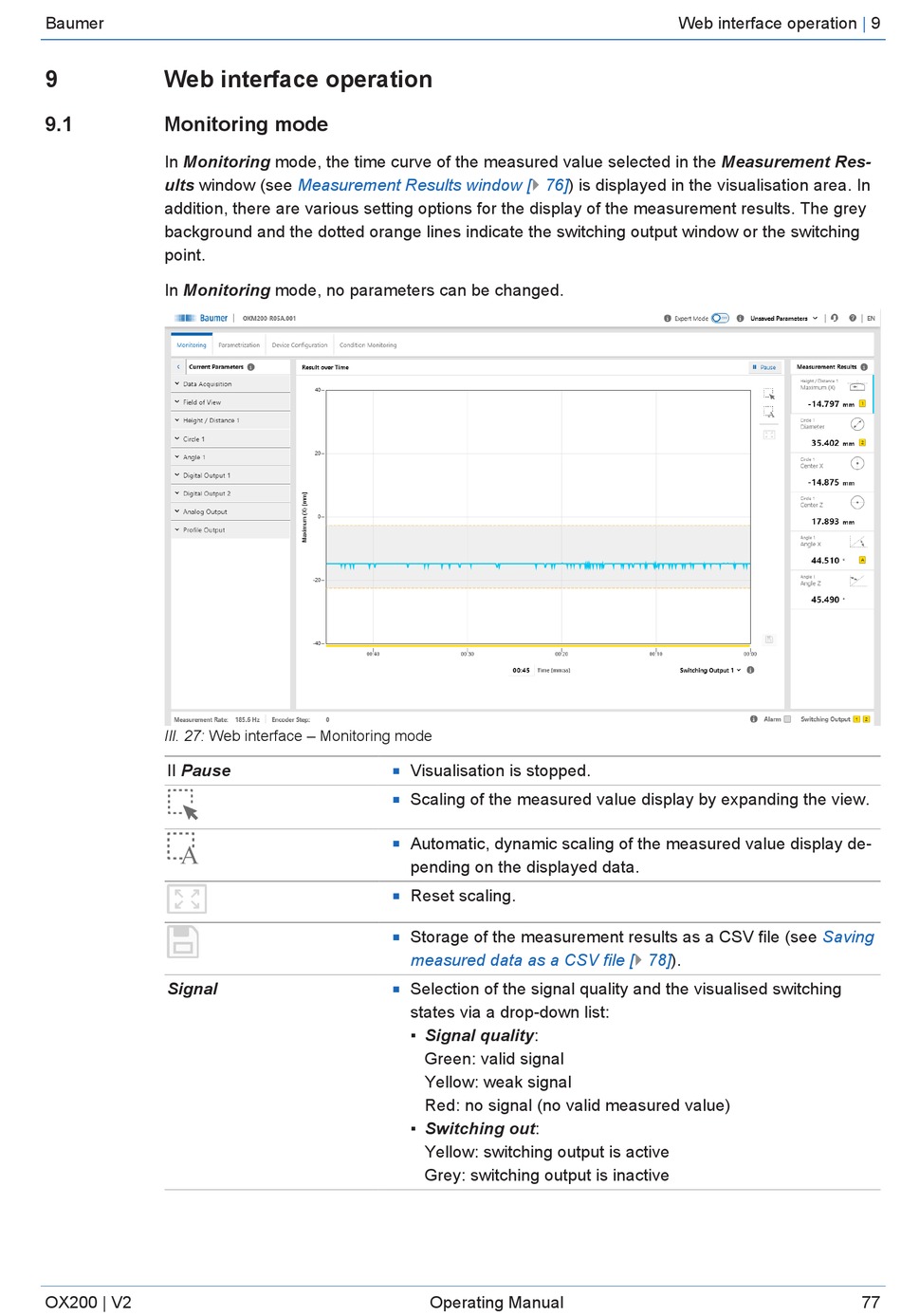

Ill. 27: Web interface – Monitoring mode
II Pause
Signal
OX200 | V2
Measurement Results window
Visualisation is stopped.
n
Scaling of the measured value display by expanding the view.
n
Automatic, dynamic scaling of the measured value display de-
n
pending on the displayed data.
Reset scaling.
n
Storage of the measurement results as a CSV file (see
n
measured data as a CSV file
Selection of the signal quality and the visualised switching
n
states via a drop-down list:
▪ Signal quality:
Green: valid signal
Yellow: weak signal
Red: no signal (no valid measured value)
▪ Switching out:
Yellow: switching output is active
Grey: switching output is inactive
Operating Manual
Web interface operation
[} 76]) is displayed in the visualisation area. In
[} 78]).
|
9
Saving
77
