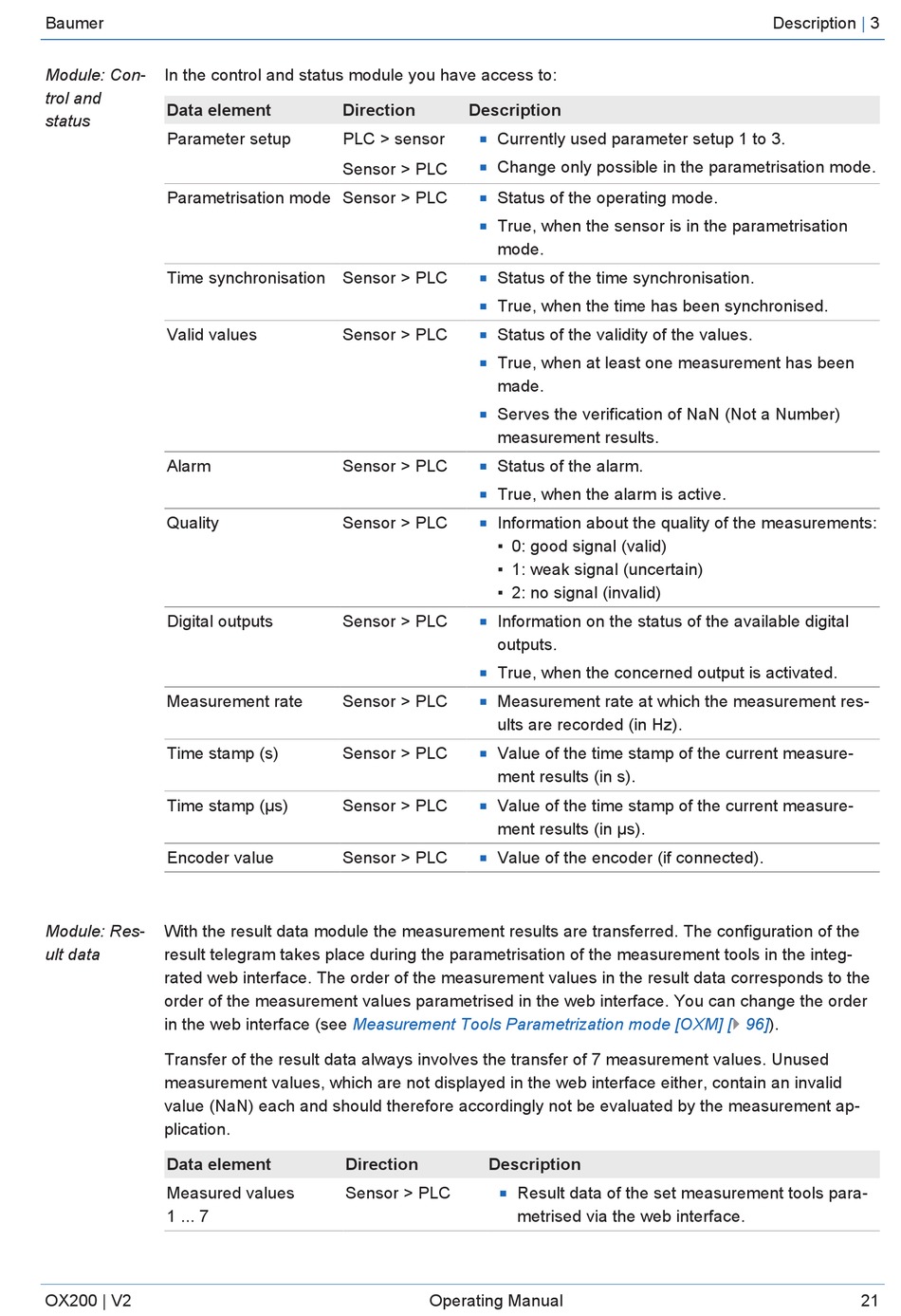

Baumer
Module: Con-
In the control and status module you have access to:
trol and
Data element
status
Parameter setup
Parametrisation mode Sensor > PLC
Time synchronisation Sensor > PLC
Valid values
Alarm
Quality
Digital outputs
Measurement rate
Time stamp (s)
Time stamp (µs)
Encoder value
Module: Res-
With the result data module the measurement results are transferred. The configuration of the
ult data
result telegram takes place during the parametrisation of the measurement tools in the integ-
rated web interface. The order of the measurement values in the result data corresponds to the
order of the measurement values parametrised in the web interface. You can change the order
in the web interface (see
Transfer of the result data always involves the transfer of 7 measurement values. Unused
measurement values, which are not displayed in the web interface either, contain an invalid
value (NaN) each and should therefore accordingly not be evaluated by the measurement ap-
plication.
Data element
Measured values
1 ... 7
OX200 | V2
Direction
Description
PLC > sensor
Currently used parameter setup 1 to 3.
n
Change only possible in the parametrisation mode.
Sensor > PLC
n
Status of the operating mode.
n
True, when the sensor is in the parametrisation
n
mode.
Status of the time synchronisation.
n
True, when the time has been synchronised.
n
Sensor > PLC
Status of the validity of the values.
n
True, when at least one measurement has been
n
made.
Serves the verification of NaN (Not a Number)
n
measurement results.
Sensor > PLC
Status of the alarm.
n
True, when the alarm is active.
n
Sensor > PLC
Information about the quality of the measurements:
n
▪ 0: good signal (valid)
▪ 1: weak signal (uncertain)
▪ 2: no signal (invalid)
Sensor > PLC
Information on the status of the available digital
n
outputs.
True, when the concerned output is activated.
n
Sensor > PLC
Measurement rate at which the measurement res-
n
ults are recorded (in Hz).
Sensor > PLC
Value of the time stamp of the current measure-
n
ment results (in s).
Sensor > PLC
Value of the time stamp of the current measure-
n
ment results (in µs).
Sensor > PLC
Value of the encoder (if connected).
n
Measurement Tools Parametrization mode [OXM]
Direction
Description
Sensor > PLC
n
Operating Manual
Result data of the set measurement tools para-
metrised via the web interface.
Description
|
3
[} 96]).
21
