6.1

Pin assignment

INFO
The pin assignment described below is a maximum configuration. For the precise pin assign-
ment of your sensor, please see the data sheet that is available for download at
www.baumer.com/OX200.
Ethernet connection

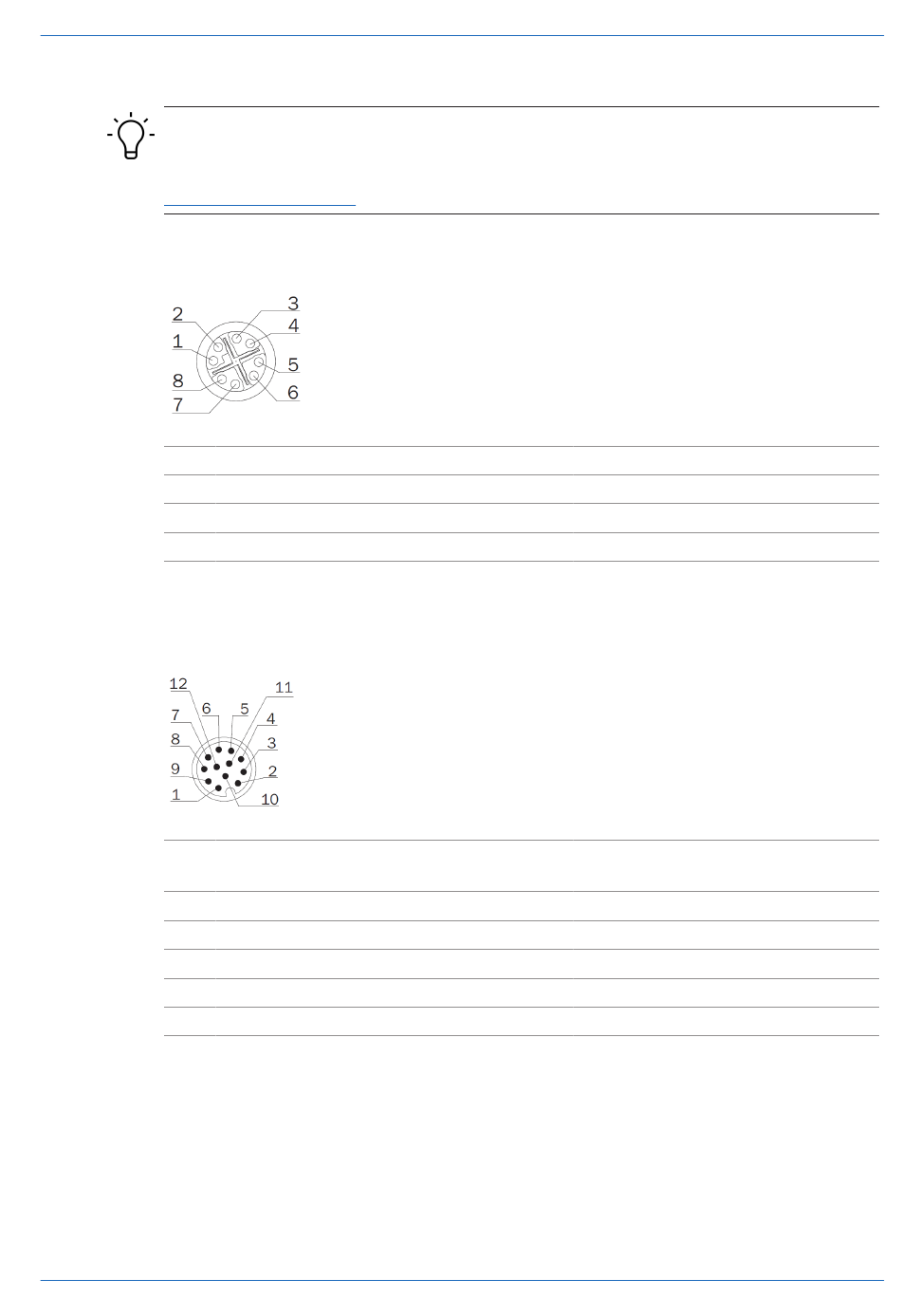

Ill. 21: Ethernet connection, M12 8-pin, X-coded, female
1
3
5
7
Electrical connection for the OXM version
Ill. 22: OXM200 – Electrical connection, M12 12-pin, A-coded, male
1
3
5
7
9
11
Pin 11 and pin 12 must also be connected if no IO-Link is used and OUT 1 should be used.
OX200 | V2
RX+
TX+
-VDC
+VDC
Power (18 ... 30 VDC) /
IO-Link P24 (2L+)
Encoder A
Encoder A neg.
Encoder B
IN 1 (sync in)
Power / IO-Link L+
2 RX-
4 TX-
6 -VDC
8 +VDC
2 GND /
IO-Link N24 (2M)
4 Analogue Out
6 OUT 1 / IO-Link C/Q
8 OUT 2
10 Encoder B neg.
12 GND / IO-Link L-
