9
|
Web interface operation
Result over Time & Profile

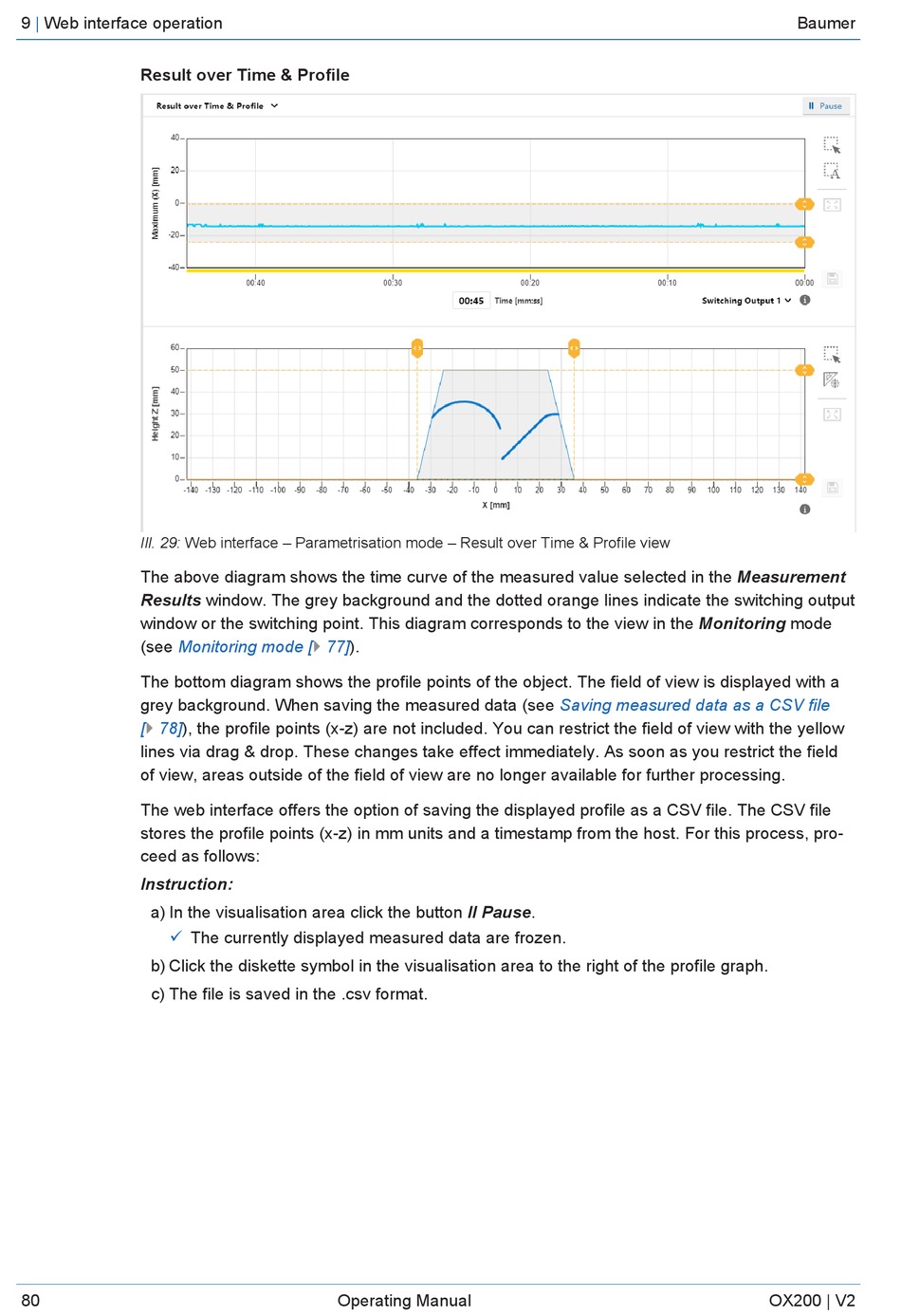

Ill. 29: Web interface – Parametrisation mode – Result over Time & Profile view
The above diagram shows the time curve of the measured value selected in the Measurement
Results window. The grey background and the dotted orange lines indicate the switching output
window or the switching point. This diagram corresponds to the view in the Monitoring mode
(see
Monitoring mode
The bottom diagram shows the profile points of the object. The field of view is displayed with a
grey background. When saving the measured data (see
[} 78]), the profile points (x-z) are not included. You can restrict the field of view with the yellow
lines via drag & drop. These changes take effect immediately. As soon as you restrict the field
of view, areas outside of the field of view are no longer available for further processing.
The web interface offers the option of saving the displayed profile as a CSV file. The CSV file
stores the profile points (x-z) in mm units and a timestamp from the host. For this process, pro-
ceed as follows:
Instruction:
a) In the visualisation area click the button II Pause.
ü
The currently displayed measured data are frozen.
b) Click the diskette symbol in the visualisation area to the right of the profile graph.
c) The file is saved in the .csv format.
80
[} 77]).
Operating Manual
Saving measured data as a CSV file
Baumer
OX200 | V2
