Behaviour of the switching output in window mode
Example:
Positive hys-
teresis
Level

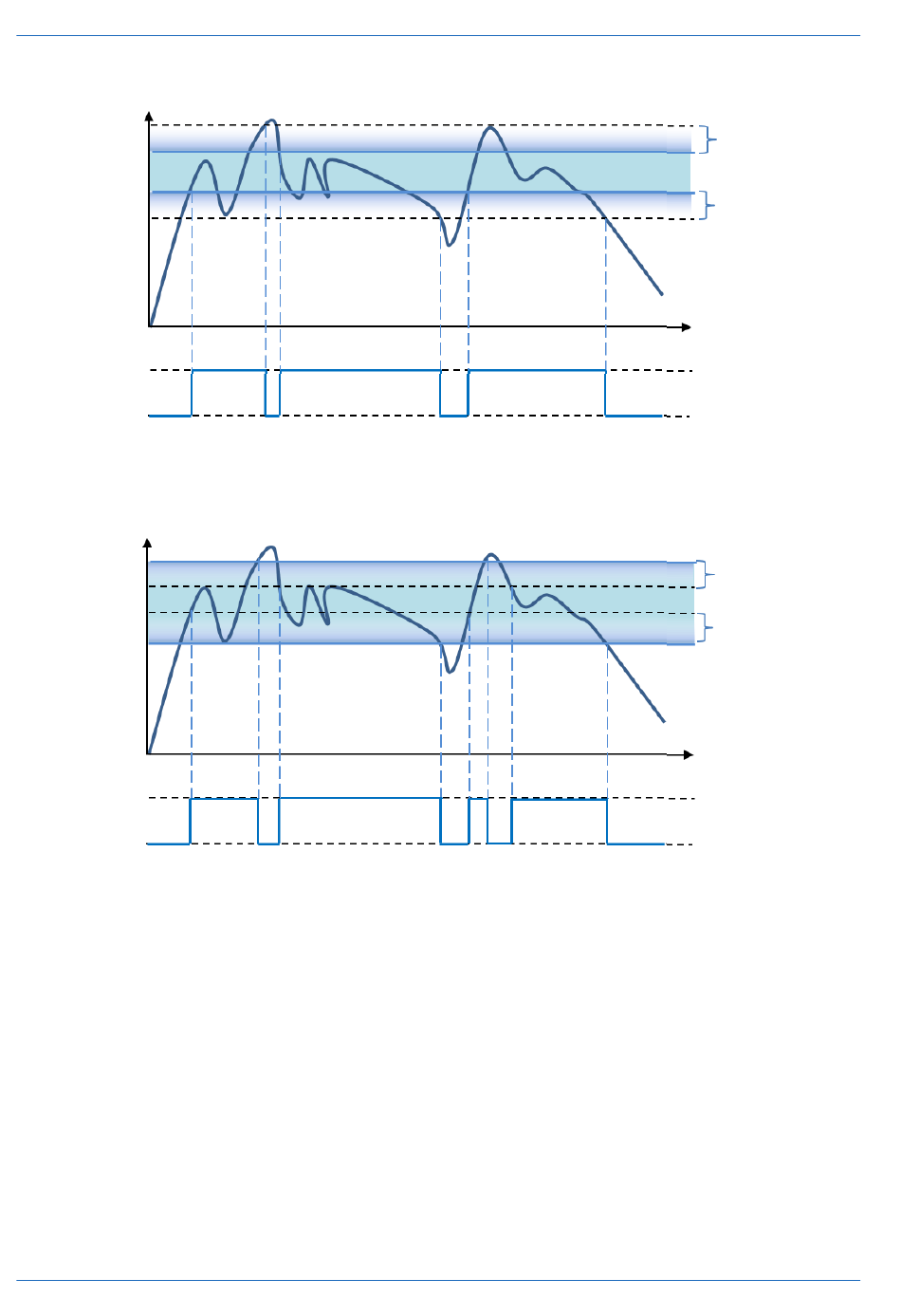

Ill. 46: Behaviour of the switching output in window mode (positive hysteresis)
Example:
Negative hys-
teresis
Level
Ill. 47: Behaviour of the switching output in window mode (negative hysteresis)
Polarity
With Polarity, you can invert the level with Active High or Active Low.
104
Window
Window
Operating Manual
Hysteresis
Switching point P1
Switching point P2
Hysteresis
High
Active high level
Low
Switching point P1
Hysteresis
Hysteresis
Switching point P2
High
Active high level
Low
