8.2.2

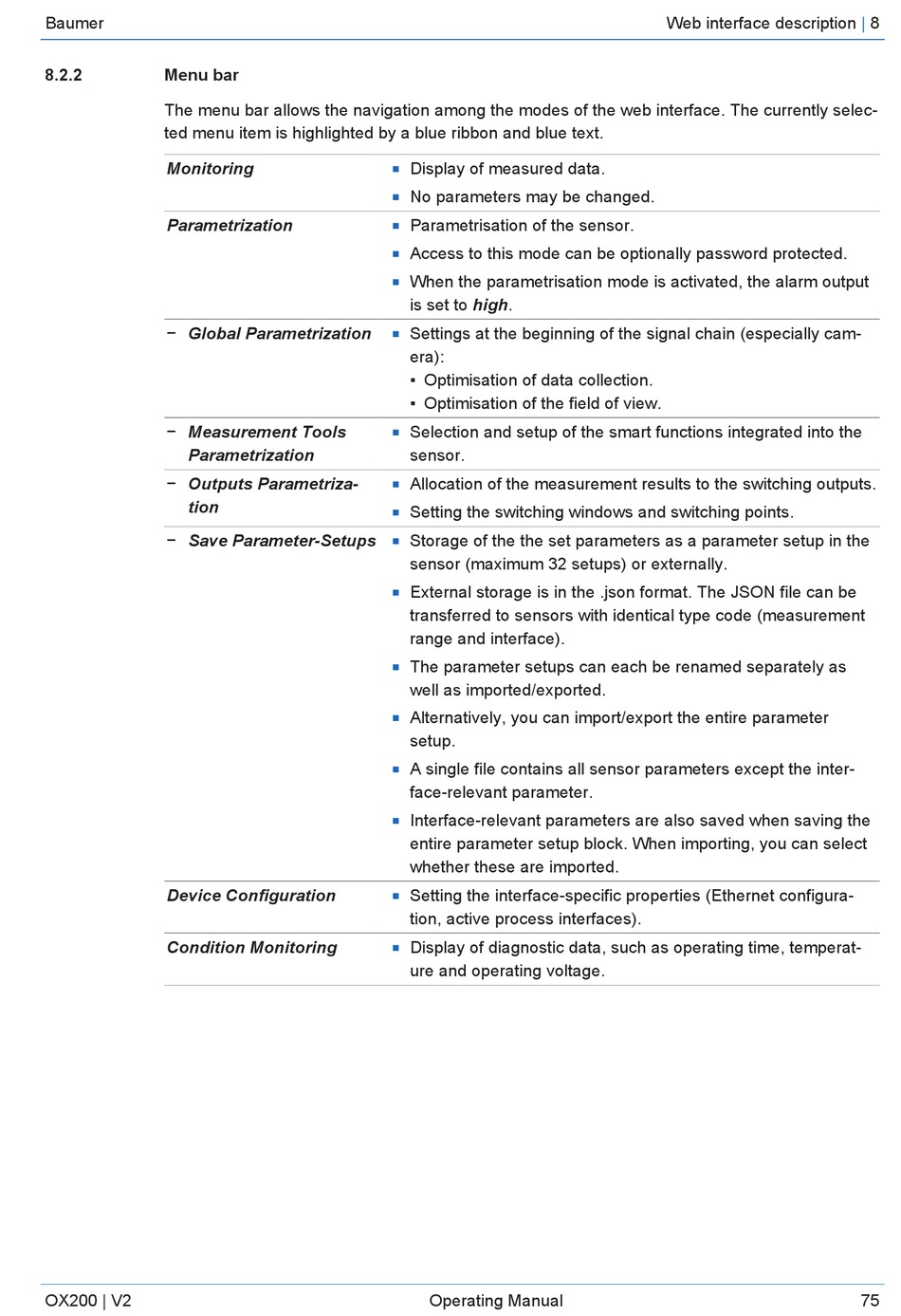

Menu bar

The menu bar allows the navigation among the modes of the web interface. The currently selec-
ted menu item is highlighted by a blue ribbon and blue text.
Monitoring
Parametrization
− Global Parametrization
− Measurement Tools
Parametrization
− Outputs Parametriza-
tion
− Save Parameter-Setups
Device Configuration
Condition Monitoring
OX200 | V2
Display of measured data.
n
No parameters may be changed.
n
Parametrisation of the sensor.
n
Access to this mode can be optionally password protected.
n
When the parametrisation mode is activated, the alarm output
n
is set to high.
Settings at the beginning of the signal chain (especially cam-
n
era):
▪ Optimisation of data collection.
▪ Optimisation of the field of view.
Selection and setup of the smart functions integrated into the
n
sensor.
Allocation of the measurement results to the switching outputs.
n
Setting the switching windows and switching points.
n
Storage of the the set parameters as a parameter setup in the
n
sensor (maximum 32 setups) or externally.
External storage is in the .json format. The JSON file can be
n
transferred to sensors with identical type code (measurement
range and interface).
The parameter setups can each be renamed separately as
n
well as imported/exported.
Alternatively, you can import/export the entire parameter
n
setup.
A single file contains all sensor parameters except the inter-
n
face-relevant parameter.
Interface-relevant parameters are also saved when saving the
n
entire parameter setup block. When importing, you can select
whether these are imported.
Setting the interface-specific properties (Ethernet configura-
n
tion, active process interfaces).
Display of diagnostic data, such as operating time, temperat-
n
ure and operating voltage.
