9.2.
Materials and Tools
9.2.1. Tools and Materials Needed But Not Shipped With The Product
The following tools and material are needed to install the product:
Assorted hardware for termination of electrical connections (solder-less ring lug terminals and butt splices,
AWG 2-18)
Tie wraps, electrical tape and wire markers
Tags for labeling incomplete work in accordance to OSHA and regulatory requirements
Tag and lockout equipment
Assorted sockets (SAE and metric), drives, wrenches and torque wrench (Nm and ft-lbs)
Assorted sizes of tongue and grove pliers, hammers, hex wrenches (metric and SEA), screw drivers and
metal files
Assorted sizes of wire cutters and strippers, ratchet and standard crimpers (AWG 0 and upwards), and a 75
watt soldering iron
Heat and electrical tape
Chalk line, plumb bob and assorted alignment tools (including squares, torpedo and 6-foot levels)
Mover's dollies, ladders, shop vacuum and push broom
9.2.2. Materials Provided with Product
The following items are provided with the product:
• Transformer oil and high voltage insulating grease
• Touch-up paint
9.3.
Preparing the Delivery Route
1.) Step One – Sketch out the Route
Begin preparing Route Survey by sketching the area of the hospital or clinic that will receive the equipment. Include
all areas on the delivery route from outside of building to destination. See sample sketch below.
Page 80 / 111
12
EVISION

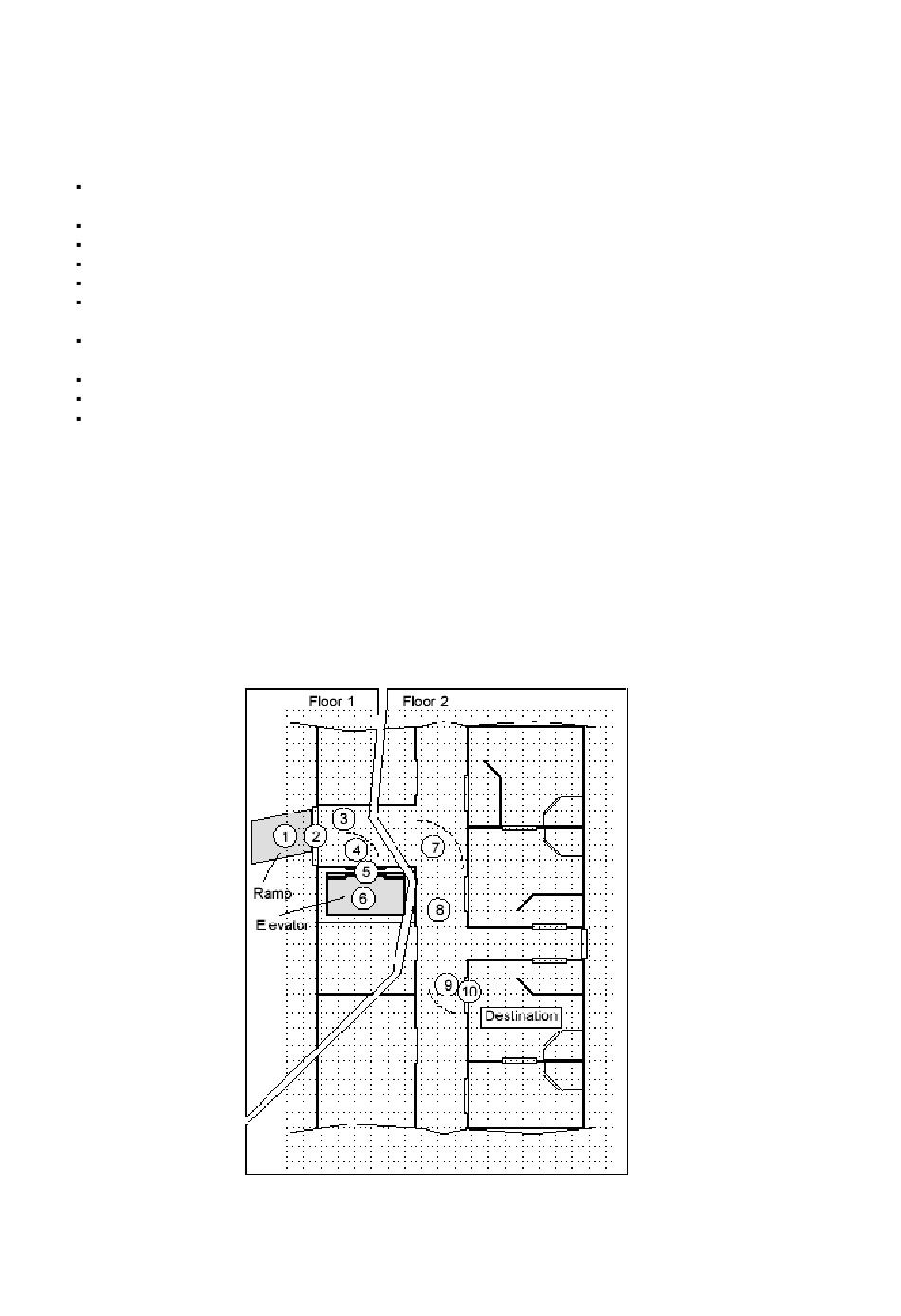

Figure 7-2 Sample Route
