Chapter 4: Web configuration
Main web page
This section describes how to use the industrial managed switch's web browser
interface for configuration and management.

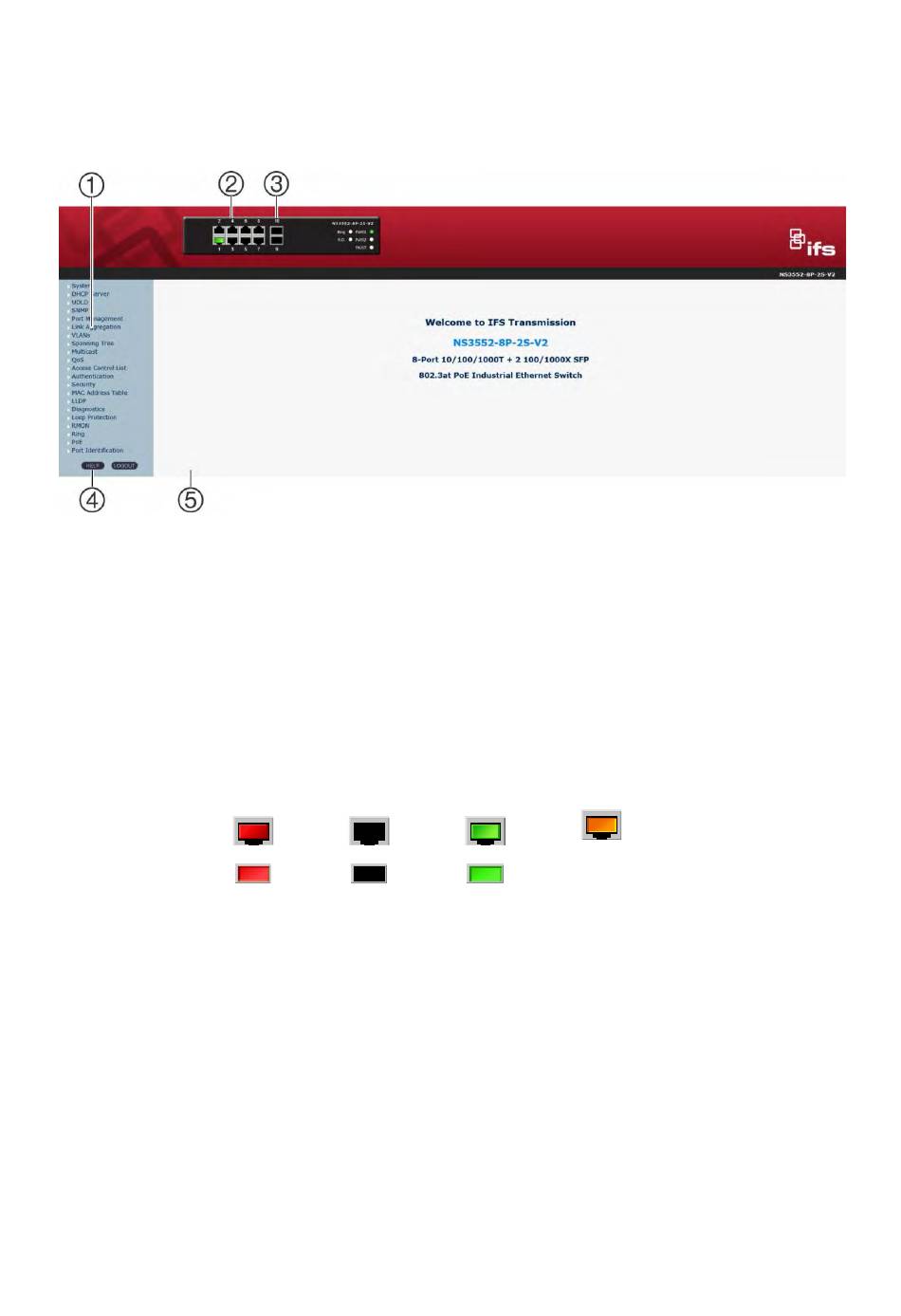

1. Main menu
2. Copper port link status
3. SFP port link status
Panel display
The web interface displays an image of the industrial managed switch's ports. The
mode can be set to display different information for the ports, including Link up or Link
down. Clicking on the image of a port opens the Port Statistics page.
Port status is indicated as follows:
State
Disabled
RJ45 Ports
SFP Ports
Main menu
Using the web interface, you can define system parameters, manage, and control the
industrial managed switch and all its ports, or monitor network conditions. The
administrator can set up the industrial managed switch by making selections from the
main functions menu. Clicking on a main menu item opens sub menus.
42
4. Help
5. Main screen
Down
Link
PoE On
Not supported
NS3552-8P-2S-V2 User Manual
