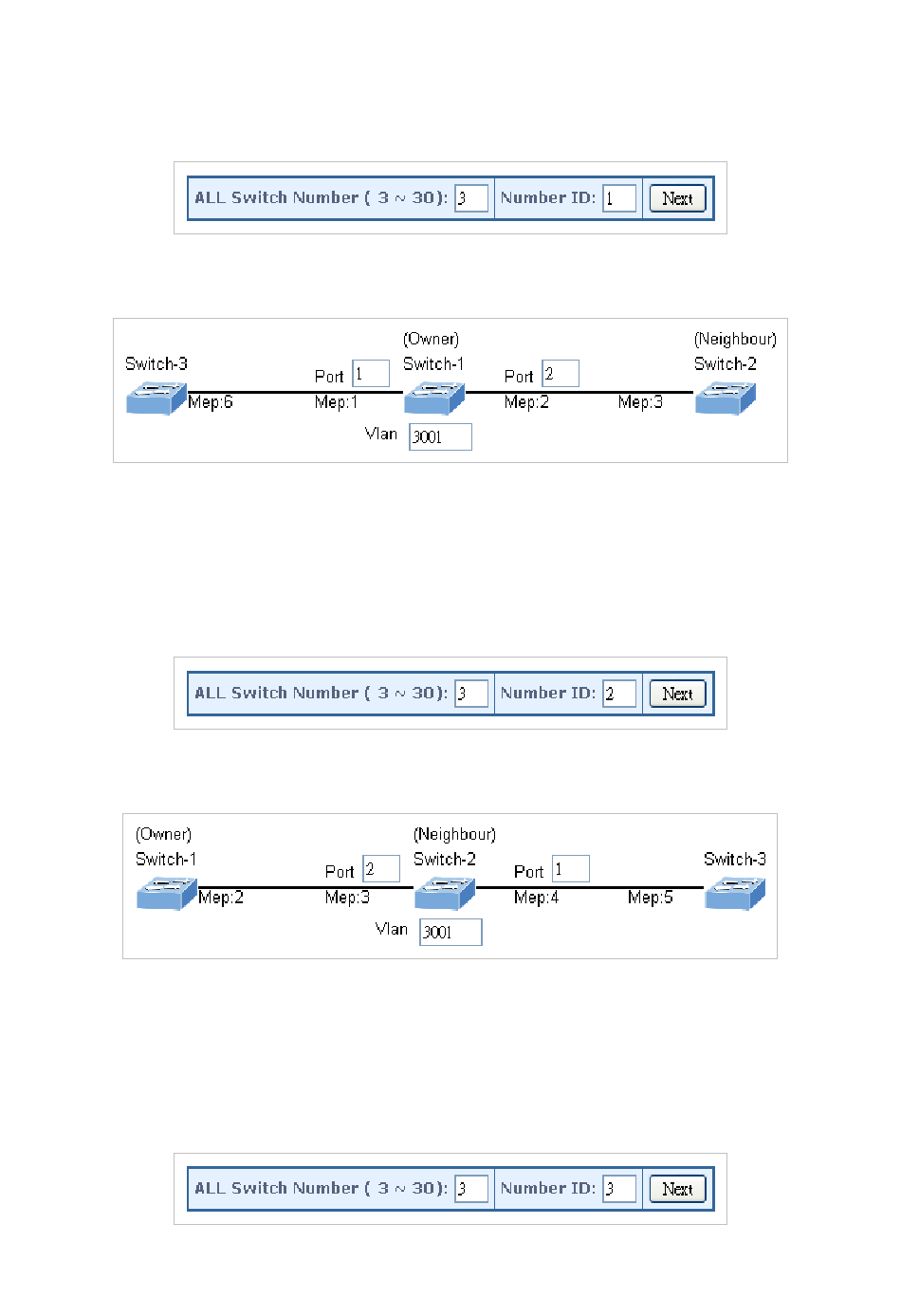

Chapter 4: Web configuration
2. Log in to switch 1 and select
3. Set "All Switch Number" = 3 and "Number ID" = 1. Click
configuration for switch 1.
4. Set "MEP1" = Port 1, "MEP2" = Port 2, and VLAN ID = 3001. Click
ERPS configuration for switch 1.
Set ERPS configuration on switch 2
1. Connect a PC directly to switch 2. Do not connect to port 1 or 2.
2. Log in to switch 2 and select
3. Set "All Switch Number" = 3 and "Number ID" = 2. Click
configuration for switch 2.
4. Set "MEP3" = Port 2, "MEP4" = Port 1, and VLAN ID = 3001. Click
ERPS configuration for switch 2.
Set ERPS configuration on switch 3
1. Connect a PC directly to switch 3. Do not connect to port 1 or 2.
2. Log in to switch 3 and select
3. Set "All Switch Number" = 3 and "Number ID" = 3. Click
configuration for switch 3.
306
>
Ring
Ring
Wizard.
>
Ring
Ring
Wizard.
>
Ring
Ring
Wizard.
to set the ERPS
Next
to save the
Set
to set the ERPS
Next
to save the
Set
to set the ERPS
Next
NS3552-8P-2S-V2 User Manual
