Chapter 4: Web configuration
Buttons
• Select the
Auto-refresh
refresh occurs every three seconds.
• Click to refresh the page immediately.
Refresh
Detailed statistics

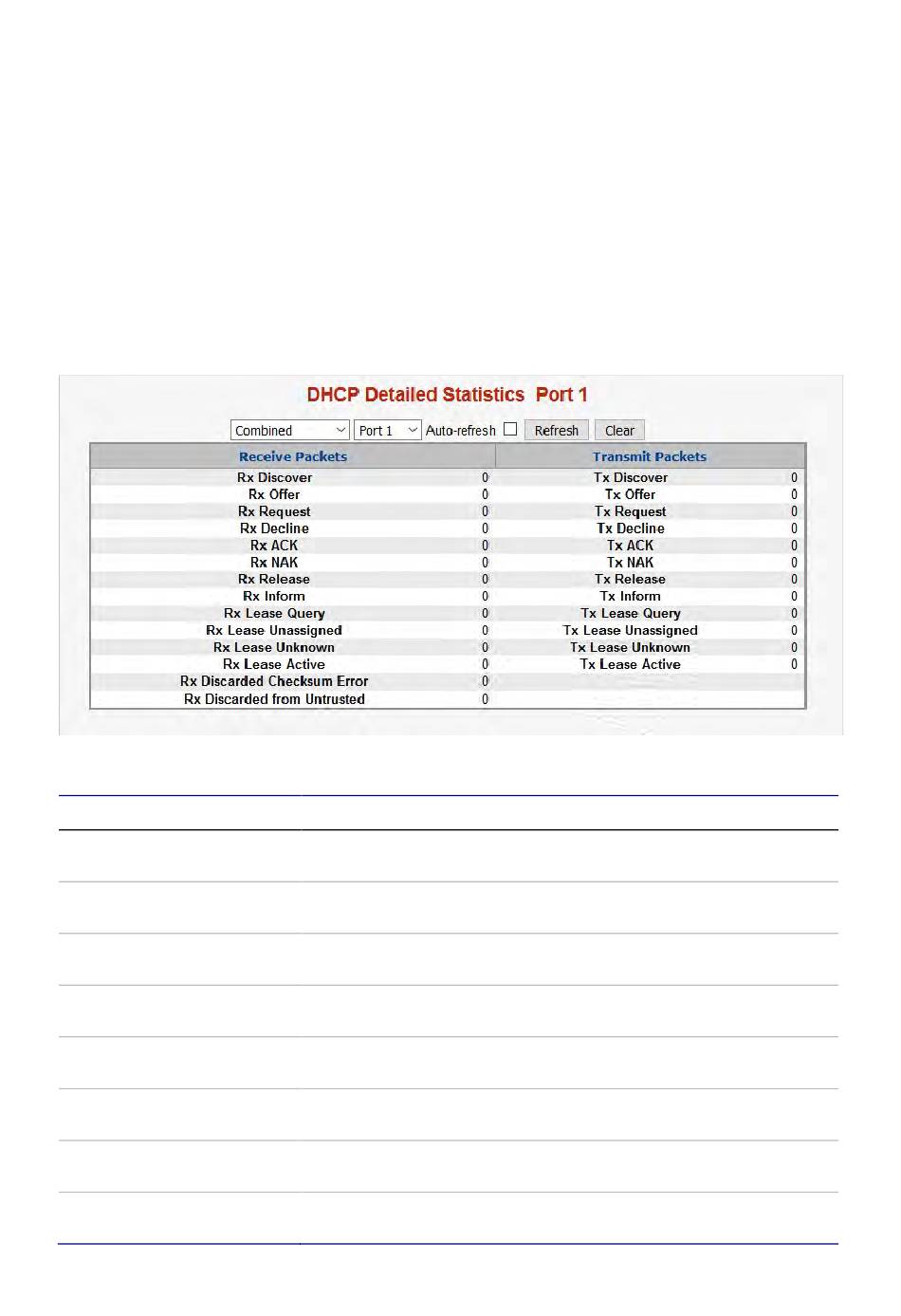

The DHCP Detailed Statistics page provides statistics for DHCP snooping. Note that
the normal forward per-port TX statistics are not increased if the incoming DHCP
packet is done by a L3 forwarding mechanism. Clearing the statistics on a specific port
may not affect global statistics since it gathers a different layer overview.
The page includes the following fields:
Object
RX and TX Discover
RX and TX Offer
RX and TX request
RX and TX Decline
RX and TX ACK
RX amd TX NAK
RX and TX Release
RX and TX Inform
78
check box to refresh the page automatically. Automatic
Description
The number of discover (option 53 with value 1) packets received and
transmitted.
The number of offer (option 53 with value 2) packets received and
transmitted.
The number of request (option 53 with value 3) packets received and
transmitted.
The number of decline (option 53 with value 4) packets received and
transmitted.
The number of ACK (option 53 with value 5) packets received and
transmitted.
The number of NAK (option 53 with value 6) packets received and
transmitted.
The number of release (option 53 with value 7) packets received and
transmitted.
The number of inform (option 53 with value 8) packets received and
transmitted.
