Ping

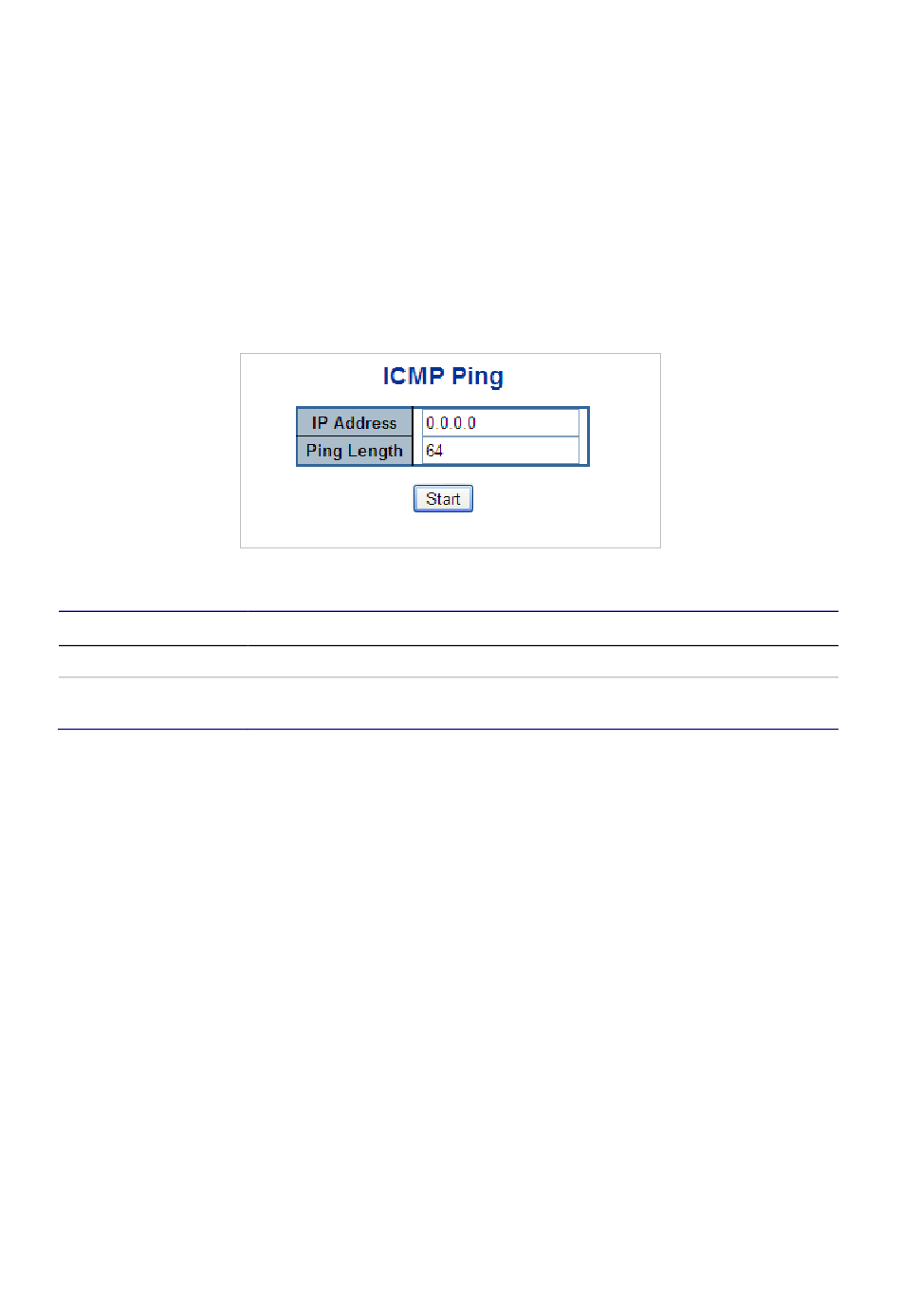

The ICMP Ping page allows you to issue ICMP ping packets to troubleshoot IP
connectivity issues.
After clicking Start, five ICMP packets are transmitted, and the sequence number and
roundtrip time are displayed upon reception of a reply. The page refreshes
automatically until responses to all packets are received, or until a timeout occurs.
The page includes the following fields:
Object
IP Address
Ping Length
Be sure the target IP address is within the same network subnet of the industrial
Note:
managed switch, otherwise the correct gateway IP address must be set up.
Buttons
• Click to transmit ICMP packets.
Start
• Click
New Ping
IPv6 ping
The ICMPv6 Ping page allows you to issue ICMPv6 ping packets to troubleshoot IPv6
connectivity issues. After clicking Start, five ICMPv6 packets are transmitted, and the
sequence number and roundtrip time are displayed upon reception of a reply. The page
refreshes automatically until responses to all packets are received, or until a timeout
occurs.
NS3552-8P-2S-V2 User Manual
Description
The destination IP Address.
The payload size of the ICMP packet. Values range from 2 bytes to 1452
bytes.
to re-start diagnostics with ping.
