Chapter 4: Web configuration
• Click to save changes.
Save
• Click to undo any changes made locally and revert to previously saved
Reset
values.
• Click to refresh the page immediately.
Refresh
• Click to update the table starting from the first entry in the VLAN Table (i.e., the
I<<
entry with the lowest VLAN ID).
• Click to update the table, starting with the entry after the last entry currently
>>
displayed.
VLAN membership status

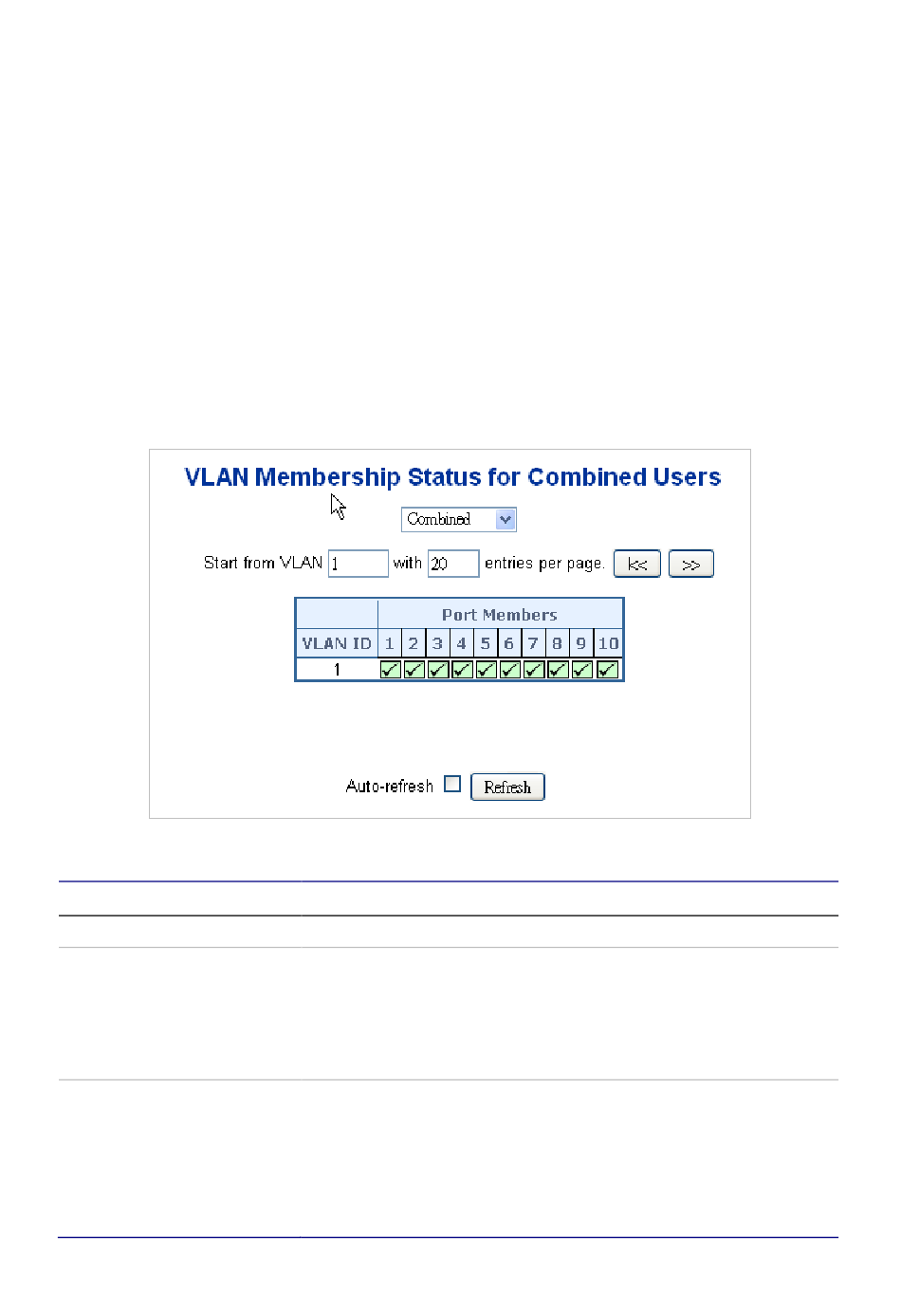

The VLAN Membership Status for Combined users page provides an overview of
membership status for VLAN users.
The page includes the following fields:
Object
VLAN ID
Port Members
VLAN User
116
Description
Indicates the ID of this particular VLAN.
The VLAN Membership Status Page shows the current VLAN port
members for all VLANs configured by a selected VLAN User
(selection shall be allowed by a Combo Box). When ALL VLAN Users
is selected, it shall show this information for all the VLAN Users, and
this is the default. VLAN membership allows the frames classified to
the VLAN ID to be forwarded to the respective VLAN member ports.
A VLAN User is a module that uses services of the VLAN
management functionality to configure VLAN memberships and
VLAN port configuration such as PVID and UVID. Currently we
support following VLAN s:
CLI/Web/SNMP: This is referred as static.
NAS: NAS provides port-based authentication, which involves
communications between a Supplicant, Authenticator, and an
