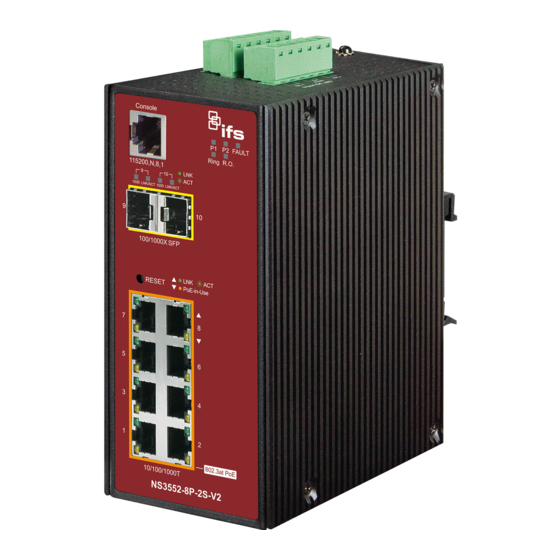

- Page 1 IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide P/N 1072679 • REV A • ISS 19DEC13...
- Page 2 Copyright © 2013 United Technologies Corporation Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and The IFS NS3552-8P-2S and NS3550-2T-8S name patents and logo are trademarks of United Technologies.
- Page 3 European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. Contact For contact information, see www.interlogix.com information www.utcfssecurityproducts.eu.
-
Page 4: Table Of Contents
1. Package Content 2. Requirements 3. Wiring the Power Inputs 4. Terminal Setup 5. Logon to the Console 6. Configure IP address 7. Start Web Management 8. Reset the Switch to Default 9. Customer Support IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... -
Page 5: Package Content
If any of these are missing or damaged, please contact your dealer immediately. If possible, retain the carton including the original packing materials to enable you to repack the product in case there is a need to return it to us for repair. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... -
Page 6: Requirements
• The above Workstation is installed with Web Browser and JAVA runtime environment Plug-in. Ethernet Port connection • Network cables - use standard network (UTP) cables with RJ-45 connectors. We recommend using Internet Explore 7.0 or above to access the Industrial Managed Switch. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... -
Page 7: Wiring The Power Inputs
12 to 48V DC or AC 24V. Please follow the steps below to insert the power wire. Insert positive / negative DC power wires into the contacts 1 and 2 for POWER 1, or 5 and 6 for POWER 2. NS3552-8P-2S Upper Panel NS3550-2T-8S Upper Panel IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... - Page 8 Tighten the wire-clamp screws for preventing the wires from loosing. Power 1 Power 2 The wire gauge for the terminal block should be in the range between 12 ~ 24 AWG. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
-
Page 9: Terminal Setup
A terminal program is required to make the software connection to the IFS Managed Industrial Switch. Windows' Hyper Terminal program may be a good choice. The Hyper Terminal can be accessed from the Start menu. Click START, then Programs, Accessories and then Hyper Terminal. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... - Page 10 When the following screen appears, make sure that the COM port should be configured as: ♦ Baud : 115200 ♦ Parity : None ♦ Data bits ♦ Stop bits ♦ Flow Control : None IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
-
Page 11: Logon To The Console
Once the terminal has been connected to the device, power on the Managed Industrial Switch and the terminal will display “running testing procedures”. The following procedures show the NS3552-8P-2S but are applicable to the NS3550-2T-8S as well. Then, the following message asks the login user name and password. The factory default user name and password as following and the login screen in Figure 5-1 appears. -
Page 12: Configure Ip Address
Figure 6-1. Figure 6-1 Show IP information screen Configure IP address On “NS3552-8P-2S: /IP>” prompt, enter the following command and press <Enter>. As show in Figure 6-2. NS3552-8P-2S:/IP>setup 192.168.1.100 255.255.255.0 192.168.1.1 1 The previous command would apply the follow settings for the Switch. - Page 13 IP address setting immediately. You can access the Web interface of ISW Managed Industrial Switch through the new IP address. If you a not familiar with console command or the related parameter, enter “?” anytime in console to get the help description. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
-
Page 14: Start Web Management
192.168.0.100, then the manager PC should be set at 192.168.0.x (where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0. Figure 7-1: IP Management Diagram IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... - Page 15 “admin” and password “admin” (or the password you have changed before). The login screen in Figure 7-2 appears. Default IP Address: 192.168.0.100 Default User Name: admin Default Password: admin Figure 7-2: Login Screen IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
- Page 16 Now, you can use the Web management interface to continue the Switch management. Please refer to the user manual for more. For security reasons, please change and memorize the new password after this first setup. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
-
Page 17: Reset The Switch To Default
5 seconds. After the device is rebooted, you can login the management Web interface within the same subnet of 192.168.0.xx and default password. Be noted, all the previous setup will disappear after factory reset. IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide... -
Page 18: Customer Support
271-273 Wellington Road Mulgrave, Victoria 3170 Latin America: Latam@interlogix.com 1-561-998-6114 EMEA: +32 (0)2 725 1120 emea@fs.com EMEA Headquarters UTC Fire & Security EMEA BVBA (Europe, Middle East & Africa) Kouterveldstraat 2 1831 Diegem-Brussels, Belgium IFS NS3552-8P-2S and NS3550-2T-8S Quick Installation Guide...
