Chapter 4: Web configuration
The page includes the following fields:
Object
Port
Ingress Filtering
Frame Type
Port VLAN ID
Untagged VLAN ID
Buttons
• Select
VLAN Users
• Select the
Auto-refresh
refresh occurs every three seconds.
• Click to refresh the page immediately.
Refresh
Private VLAN

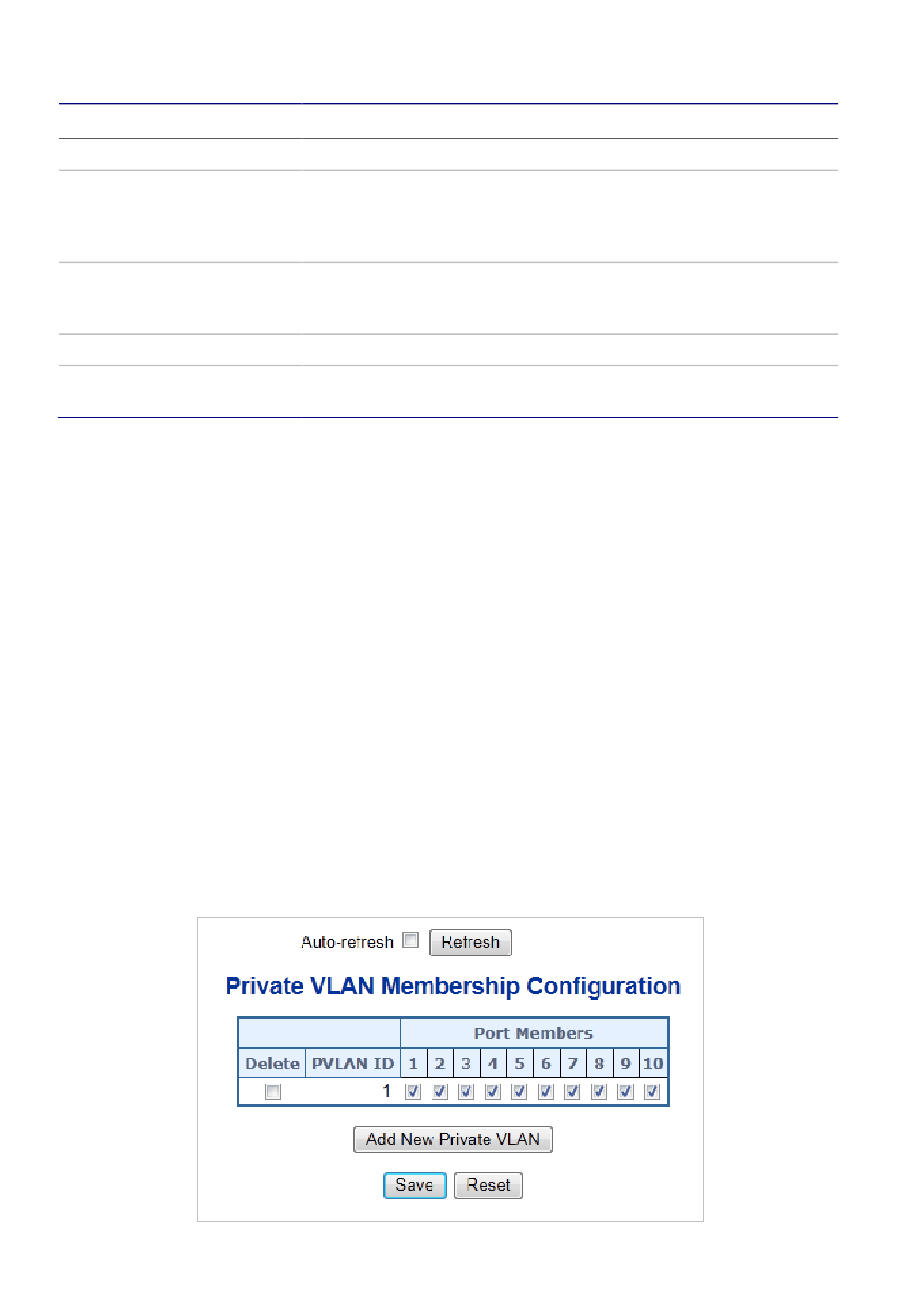

The Private VLAN Membership Configuration page allows you to configure private
VLAN membership. The private VLAN membership configurations for the switch can be
monitored and modified here; private VLANs and private VLAN port members can be
added or deleted here. Private VLANs are based on the source port mask, and there
are no connections to VLANs. This means that VLAN IDs and private VLAN IDs can be
identical. A port must be a member of both a VLAN and a private VLAN to be able to
forward packets. By default, all ports are VLAN unaware and are members of VLAN 1
and private VLAN 1. A VLAN unaware port can only be a member of one VLAN, but it
can be a member of multiple private VLANs.
118
Description
The logical port for the settings contained in the same row.
Shows the ingress filtering for a port. This parameter affects VLAN
ingress processing. If ingress filtering is enabled and the ingress port
is not a member of the classified VLAN of the frame, the frame is
discarded.
Shows if the port accepts all frames or only tagged frames. This
parameter affects VLAN ingress processing. If the port only accepts
tagged frames, untagged frames received on that port are discarded.
Shows the PVID setting for the port.
Shows UVID (untagged VLAN ID). The port's UVID determines the
packet's behavior at the egress side.
from the drop-down list.
Static
check box to refresh the page automatically. Automatic
