Chapter 4: Web configuration

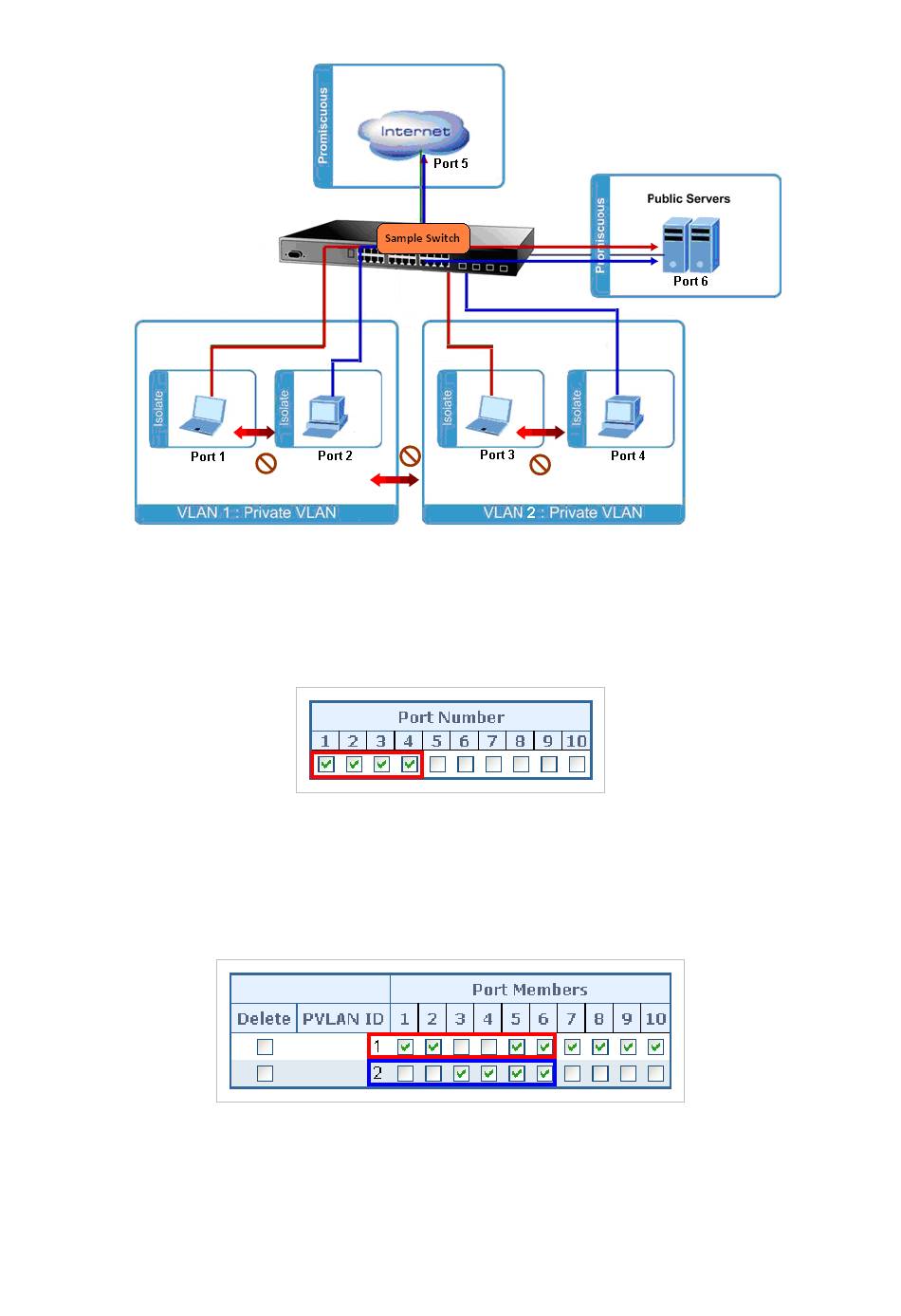

1. Assign Port Mode
Set Port-1~Port-4 as isolated.
Set Port-5 and Port-6 as promiscuous. The Port Isolation Configuration page
appears.
2. Assign VLAN Member:
VLAN 1 : Port-1, Port-2, Port-5, and Port-3
VLAN 2: Port-3~Port-6.
The Private VLAN Membership Configuration page appears.
MAC-based VLAN
The MAC-based VLAN entries can be configured on the MAC-based VLAN
Membership Configuration page. This page allows for adding and deleting MAC-based
126
NS3552-8P-2S-V2 User Manual
