RMON statistics status

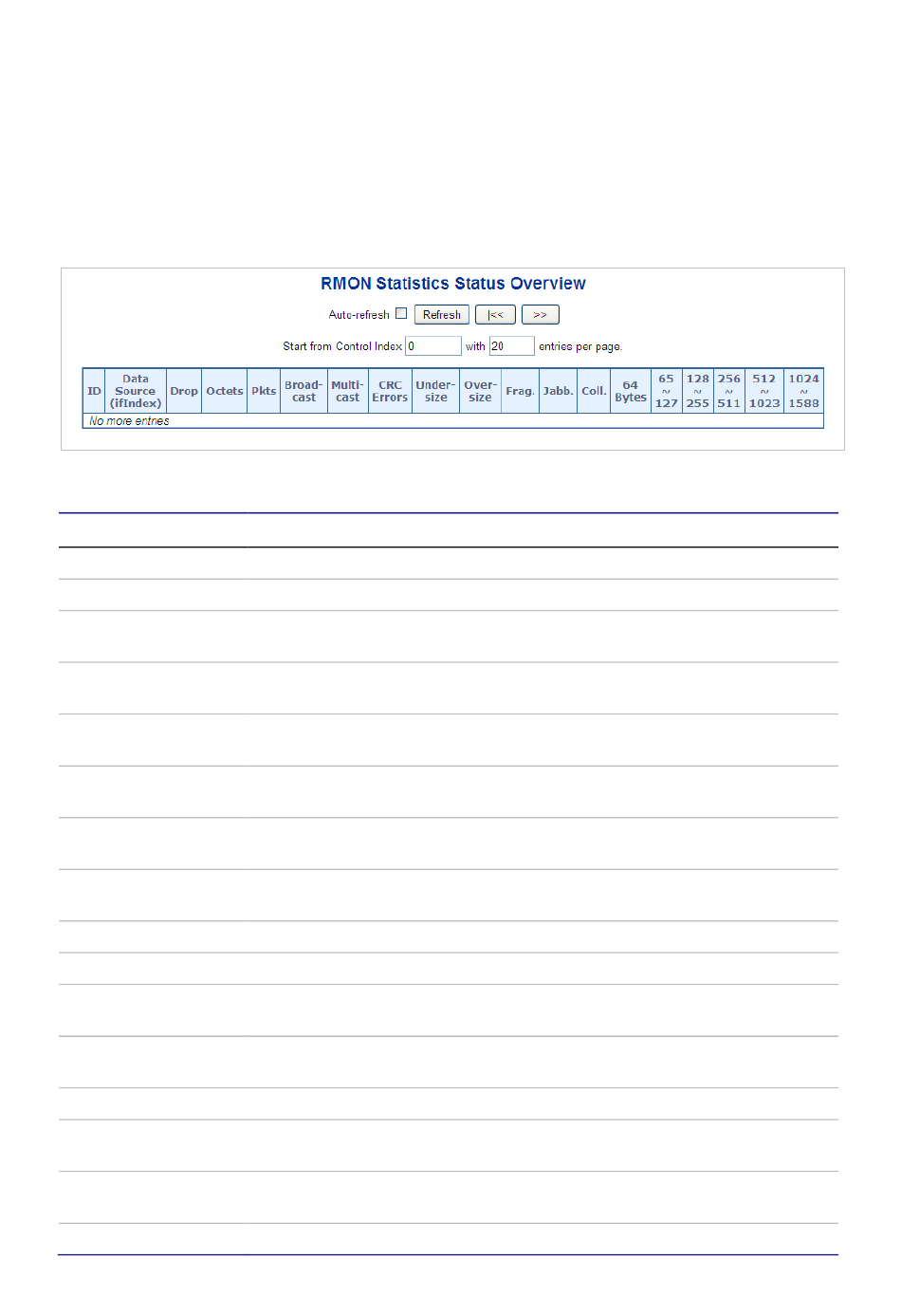

The RMON Statistics Status Overview page provides an overview of RMON Statistics
entries. Each page shows up to 99 entries from the Statistics table (default is 20 entries
per page). The range of entries per page can be typed into the
and
Index entries per page
20 entries from the beginning of the Statistics table. The first entry shown will be the
one with the lowest ID found in the Statistics table
The page includes the following fields:
Object
ID
Data Source (ifIndex)
Drop
Octets
Pkts
Broadcast
Multicast
CRC Errors
Undersize
Oversize
Frag.
Jabb.
Coll.
64 Bytes
65~127
128~255
NS3552-8P-2S-V2 User Manual
fields. When initially accessing the page, it shows the first
Description
Indicates the index of statistics entry.
The port ID to be monitored.
The total number of events in which packets were dropped by the probe due
to lack of resources.
The total number of octets of data (including those in bad packets) received
on the network.
The total number of packets (including bad packets, broadcast packets, and
multicast packets) received.
The total number of good packets received that were directed to the
broadcast address.
The total number of good packets received that were directed to a multicast
address.
The total number of packets received that had a length (excluding framing
bits, but including FCS octets) of between 64 and 1518 octets.
The total number of packets received that were less than 64 octets.
The total number of packets received that were longer than 1518 octets.
The number of frames with a size less than 64 octets received with invalid
CRC.
The number of frames with a size larger than 64 octets received with invalid
CRC.
The best estimate of the total number of collisions on this Ethernet segment.
The total number of packets (including bad packets) received that were 64
octets in length.
The total number of packets (including bad packets) received that were
between 65 to 127 octets in length.
The total number of packets (including bad packets) received that were
Chapter 4: Web configuration
