Object
Port
Policy ID
Buttons
• Click to save changes.
Save
• Click to undo any changes made locally and revert to previously saved
Reset
values.

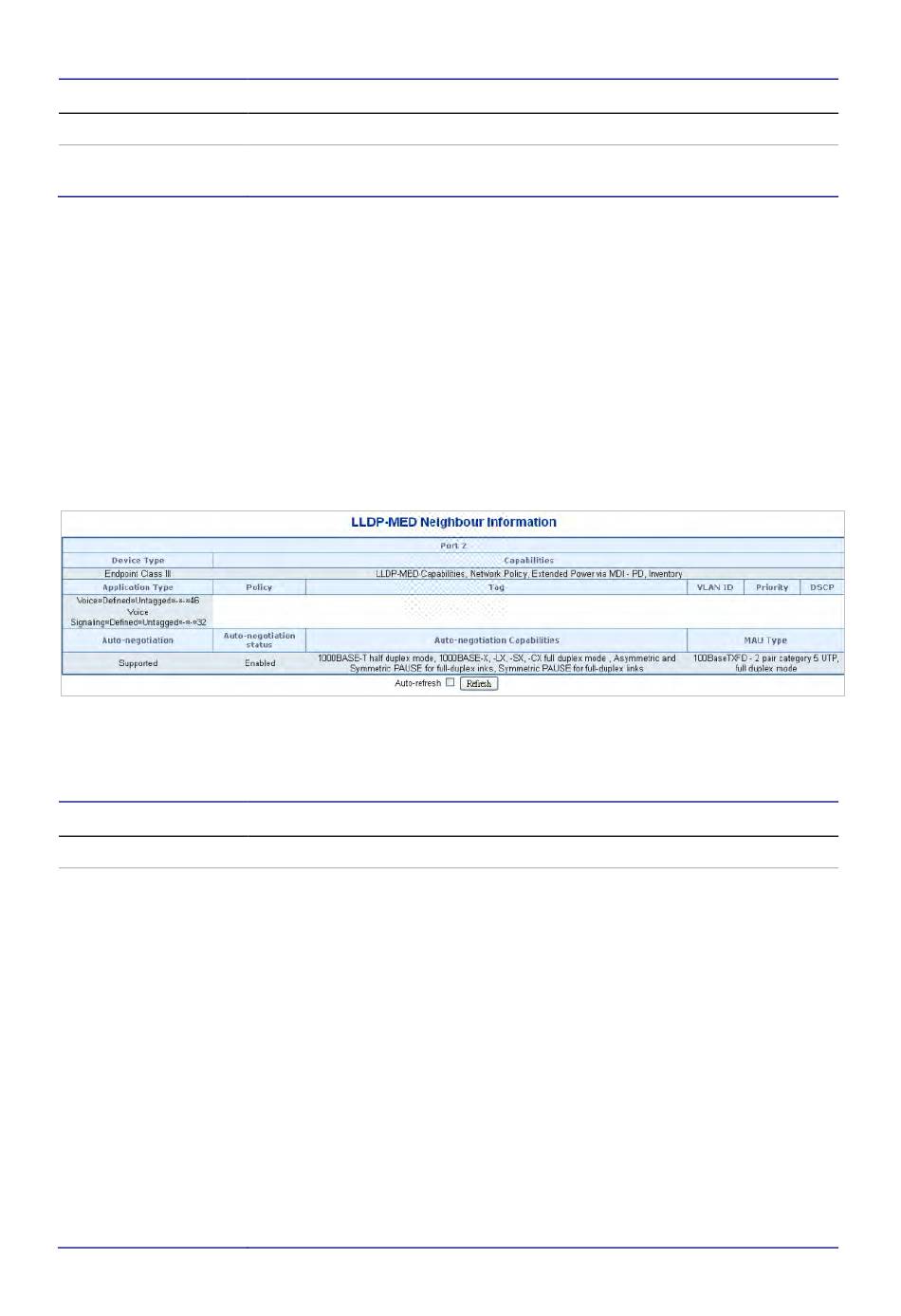

LLDP-MED neighbor
The LLDP-MED Neighbor Information page provides a status overview of all LLDP-
MED neighbors. The table contains a row for each port on which an LLDP neighbor is
detected. The columns hold the following information:
The page includes the following fields:
Fast start repeat count
Object
Port
Device Type
NS3552-8P-2S-V2 User Manual
Description
The port number for which the configuration applies.
The set of policies for a given port. The set of policies is selected by
selecting the check boxes that correspond to the policies
Description
The port on which the LLDP frame was received.
LLDP-MED Devices are comprised of two primary Device Types: Network
Connectivity Devices and Endpoint Devices.
LLDP-MED Network Connectivity Device Definition
LLDP-MED Network Connectivity Devices, as defined in TIA-1057, provide
access to the IEEE 802 based LAN infrastructure for LLDP-MED Endpoint
Devices. An LLDP-MED Network Connectivity Device is a LAN access
device based on any of the following technologies:
1. LAN Switch/Router
2. IEEE 802.1 Bridge
3. IEEE 802.3 Repeater (included for historical reasons)
4. IEEE 802.11 Wireless Access Point
5. Any device that supports the IEEE 802.1AB and MED extensions defined
by TIA-1057 and can relay IEEE 802 frames via any method.
LLDP-MED Endpoint Device Definition
Within the LLDP-MED Endpoint Device category, the LLDP-MED scheme is
broken into further Endpoint Device Classes, as defined in the following.
