Chapter 4: Web configuration
The page includes the following fields:
Object
QoS Class
DPL
DSCP
Buttons
• Click to save changes.
Save
• Click to undo any changes made locally and revert to previously saved
Reset
values.
QoS control list

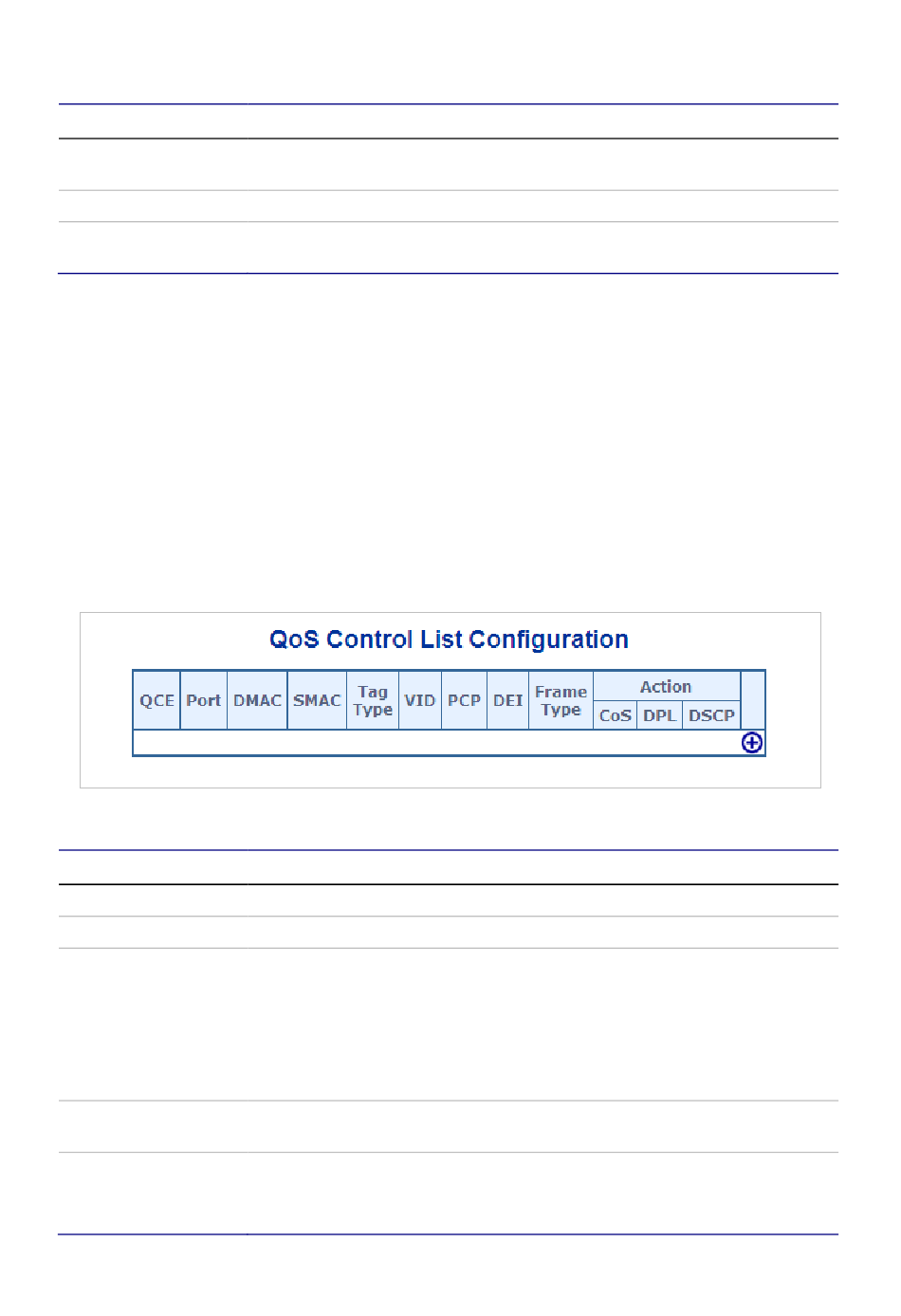

The QoS Control List Configuration page shows the QoS Control List (QCL), which is
made up of the QCEs. Each row describes a QCE that is defined. The maximum
number of QCEs is 256 on each switch. Click on the lowest plus sign to add a new
QCE to the list.
The page includes the following fields:
Object
QCE#
Port
DMAC
SMAC
Tag Type
186
Description
Available QoS Class values range from 0 to 7. QoS Class (0-7) can be
mapped to followed parameters.
Actual Drop Precedence Level.
Select DSCP value (0-63) from DSCP menu to map DSCP to corresponding
QoS Class and DPL value
Description
Indicates the index of QCE.
Indicates the list of ports configured with the QCE.
Specify the type of Destination MAC addresses for incoming frames.
Selections include:
Any: All types of Destination MAC addresses are allowed. Default value.
Unicast: Only Unicast MAC addresses are allowed.
Multicast: Only Multicast MAC addresses are allowed.
Broadcast: Only Broadcast MAC addresses are allowed.
Displays the OUI field of Source MAC address (i.e., the first three octets (in
bytes) of the MAC address).
Indicates tag type. Selections include:
Any: Match tagged and untagged frames. Default value.
Untagged: Match untagged frames.
