Digital input/output
Digital input allows a user to log an external device (such as an industrial cooler) as
dead or alive, or something else. The system will log a user customized message into
system log and syslog, and issue SNMP trap or an alarm email.
Digital Output allows a user to monitor the switch port and power, and allows the
system to issue a high or low signal to an external device (such as an alarm) when the
monitor port or power has failed.

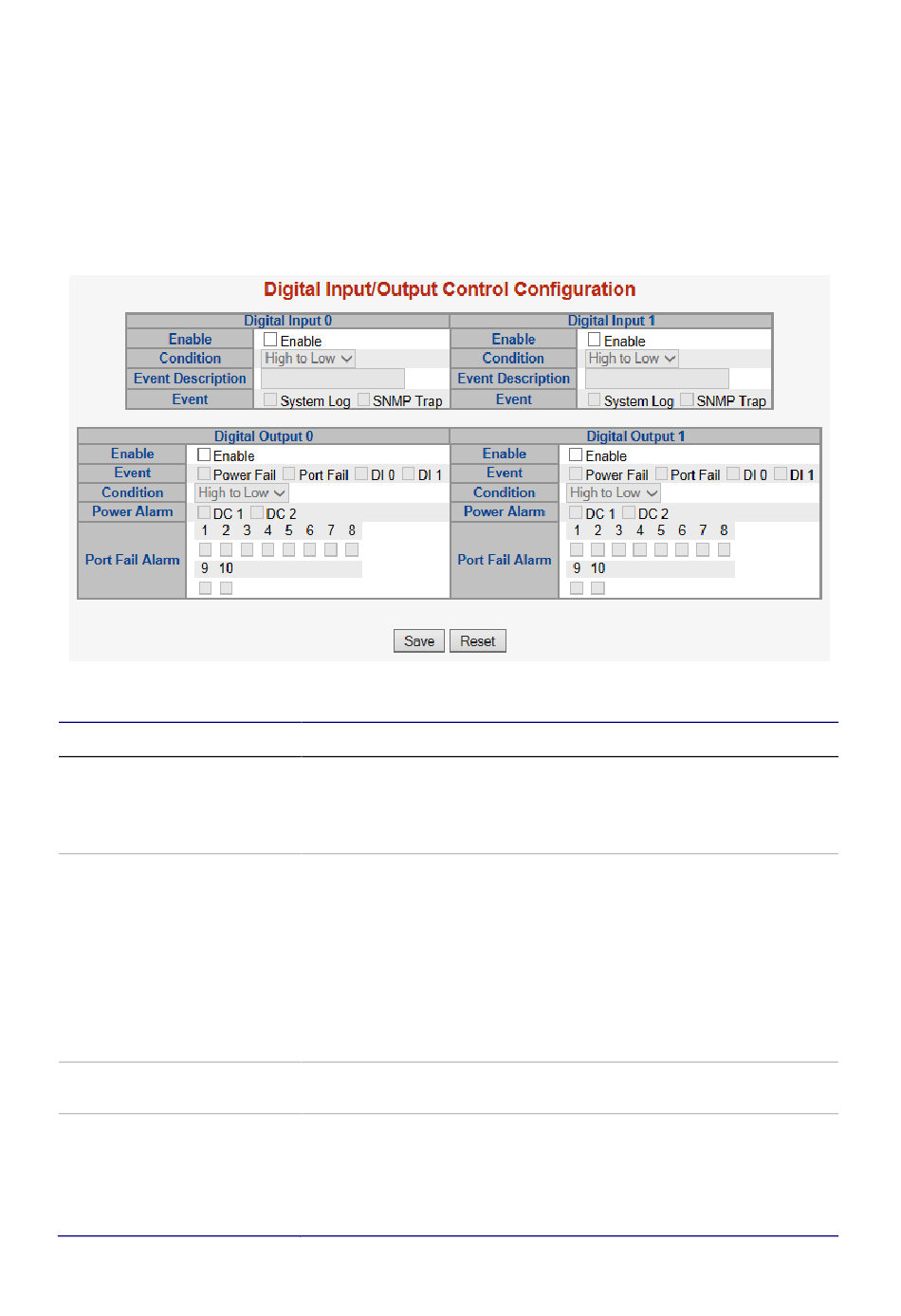

The page includes the following fields:
Object
Enable
Condition
Event Description
Event
NS3552-8P-2S-V2 User Manual
Description
Select the check box to enable the digital input/output
Enable
function.
Deselect the check bo to disable the digital input/output
Enable
function.
As Digital Input:
Allows the user to select High to Low or Low to High. This means a
signal received by system is from High to Low or From Low to High. It
will trigger an action that logs a customize message or issue the
message from the switch.
As Digital Output:
Allows user to select High to Low or Low to High. This means that
when the switch is power-failed or port-failed, then system will issue a
High or Low signal to an external device such as an alarm.
Allows user to set a customized message for Digital Input function
alarming.
As Digital Input:
Allows the user to record alarm message to System log, syslog or
issues out via SNMP Trap or SMTP.
As default SNMP Trap and SMTP are disabled, please enable them
first if you want to issue alarm message via them.
