Object
VID
PCP
DEI
Frame Type
Action
Modification Buttons
QoS control entry configuration

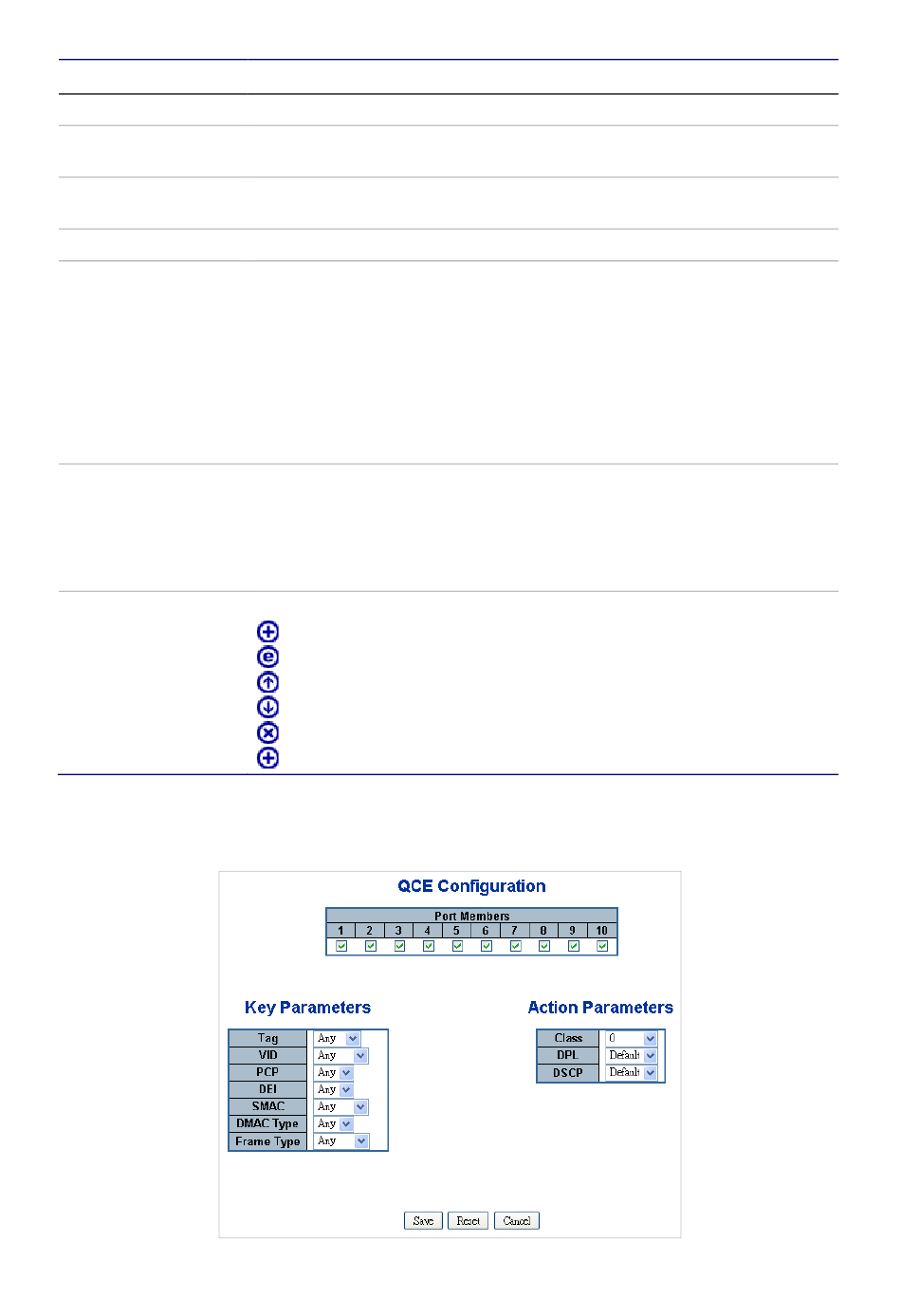

The QCE Configuration page appears as follows:
NS3552-8P-2S-V2 User Manual
Description
Tagged: Match tagged frames.
Indicates VLAN ID (either a specific VID or range of VIDs). VID can be in the
range of 1-4095 or Any.
Priority Code Point: Valid PCP values are specific (0, 1, 2, 3, 4, 5, 6, 7), a
range (0-1, 2-3, 4-5, 6-7, 0-3, 4-7), or Any.
Drop Eligible Indicator: Selections include 0, 1, or Any.
Indicates the type of frame to look for incoming frames. Selections include:
Any: The QCE will match all frame types.
Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are
allowed.
LLC: Only (LLC) frames are allowed.
SNAP: Only (SNAP) frames are allowed.
IPv4: The QCE only matches IPV4 frames.
IPv6: The QCE only matches IPV6 frames.
Indicates the classification action taken on the ingress frame if the
parameters configured match with the frame's content. Action fields include:
Class: Classified QoS class.
DPL: Classified Drop Precedence Level.
DSCP: Classified DSCP value.
Modify each QCE in the table using the following buttons:
: Inserts a new QCE before the current row.
: Edits the QCE.
: Moves the QCE up the list.
: Moves the QCE down the list.
: Deletes the QCE.
: The lowest plus sign adds a new entry at the bottom of the list of QCL.
