VLAN Group
VLAN Group 1
VLAN Group 2
VLAN Group 3

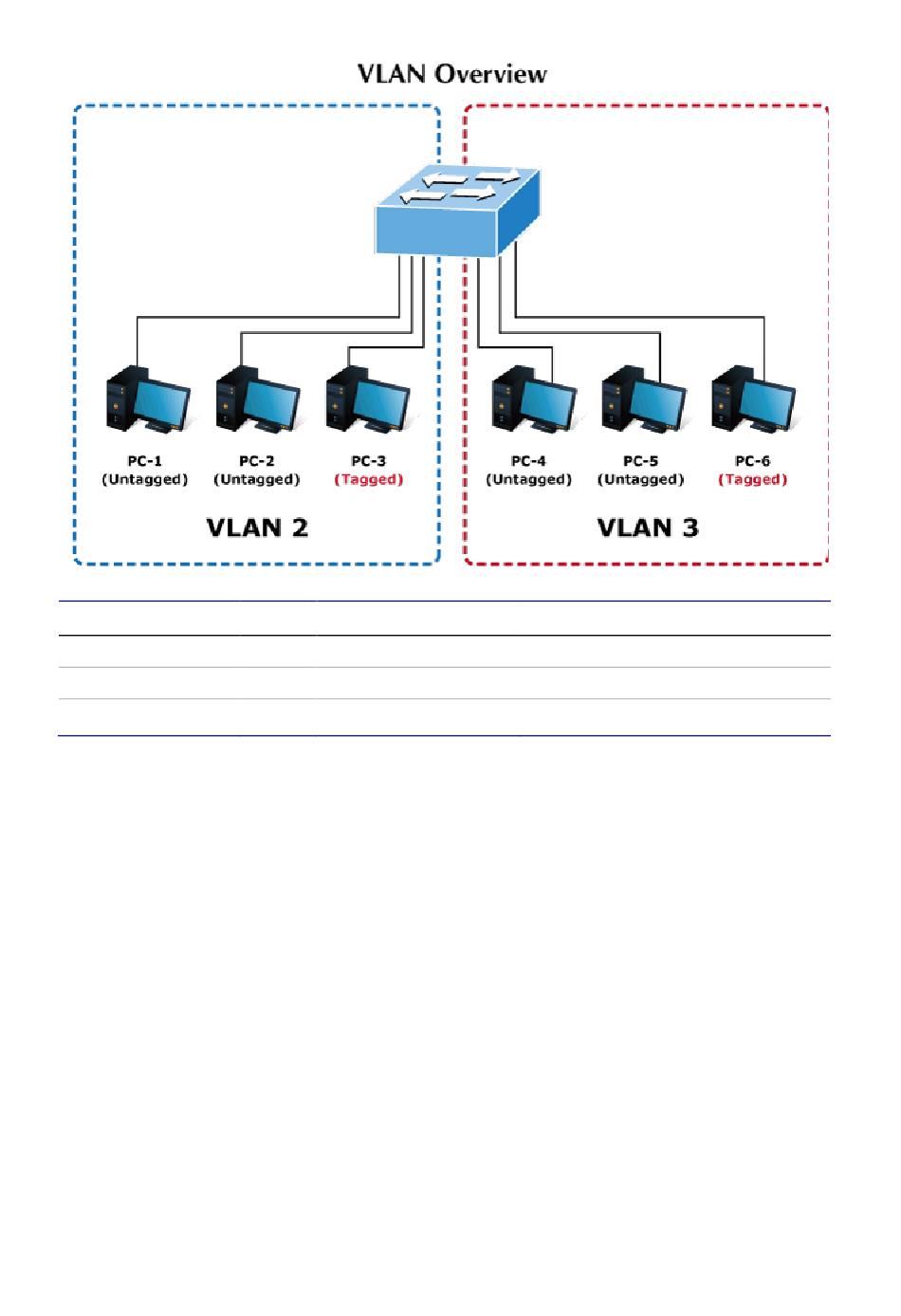

The scenario is described as follows:
Untagged packet entering VLAN 2
1. While [PC-1], an untagged packet, enters Port-1, the industrial managed switch will
tag it with a VLAN Tag=2. [PC-2] and [PC-3] will receive the packet through Port-2
and Port-3.
2. [PC-4],[PC-5] and [PC-6] received no packet.
3. While the packet leaves Port-2, it will be stripped away, becoming an untagged
packet.
4. While the packet leaves Port-3, it will remain as a tagged packet with VLAN Tag=2.
Tagged packet entering VLAN 2
1. While [PC-3], a tagged packet with VLAN Tag=2 enters Port-3, [PC-1] and [PC-2]
will receive the packet through Port-1 and Port-2.
2. While the packet leaves Port-1 and Port-2, it will be stripped away, becoming an
untagged packet.
122
VID Untagged Members
1 Port-7 ~ Port-10
2 Port-1, Port-2
3 Port-4, Port-5
Tagged Members
N/A
Port-3
Port-6
