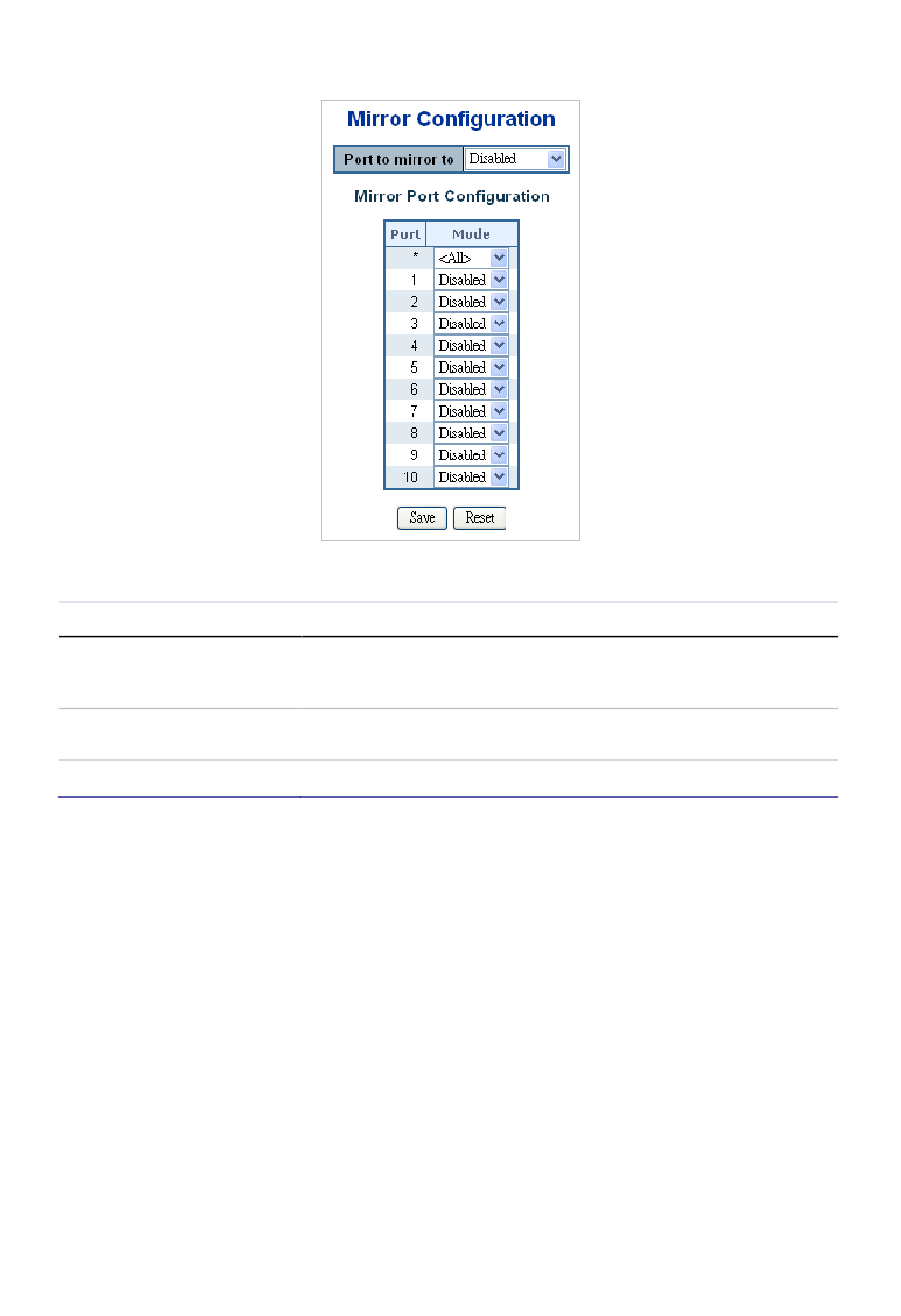

Mirror port configuration

The page includes the following fields:

Port to mirror on

For a given port, a frame is only transmitted once. It is therefore not possible to

mirror Tx frames on the mirror port. Because of this, the mode for the selected mirror

port is limited to

to save changes.

to undo any changes made locally and revert to previously saved

Link aggregation

Port Aggregation optimizes port usage by linking a group of ports together to form a

single Link Aggregated Group (LAG). Port aggregation multiplies the bandwidth

between the devices, increases port flexibility, and provides link redundancy.

Port to mirror is also known as the mirror port. Frames from ports that

have either source (rx) or destination (tx) mirroring enabled are

mirrored on this port.

The logical port for the settings contained in the same row,

indicates that all ports are selected.

Select mirror mode.

disables mirroring.
