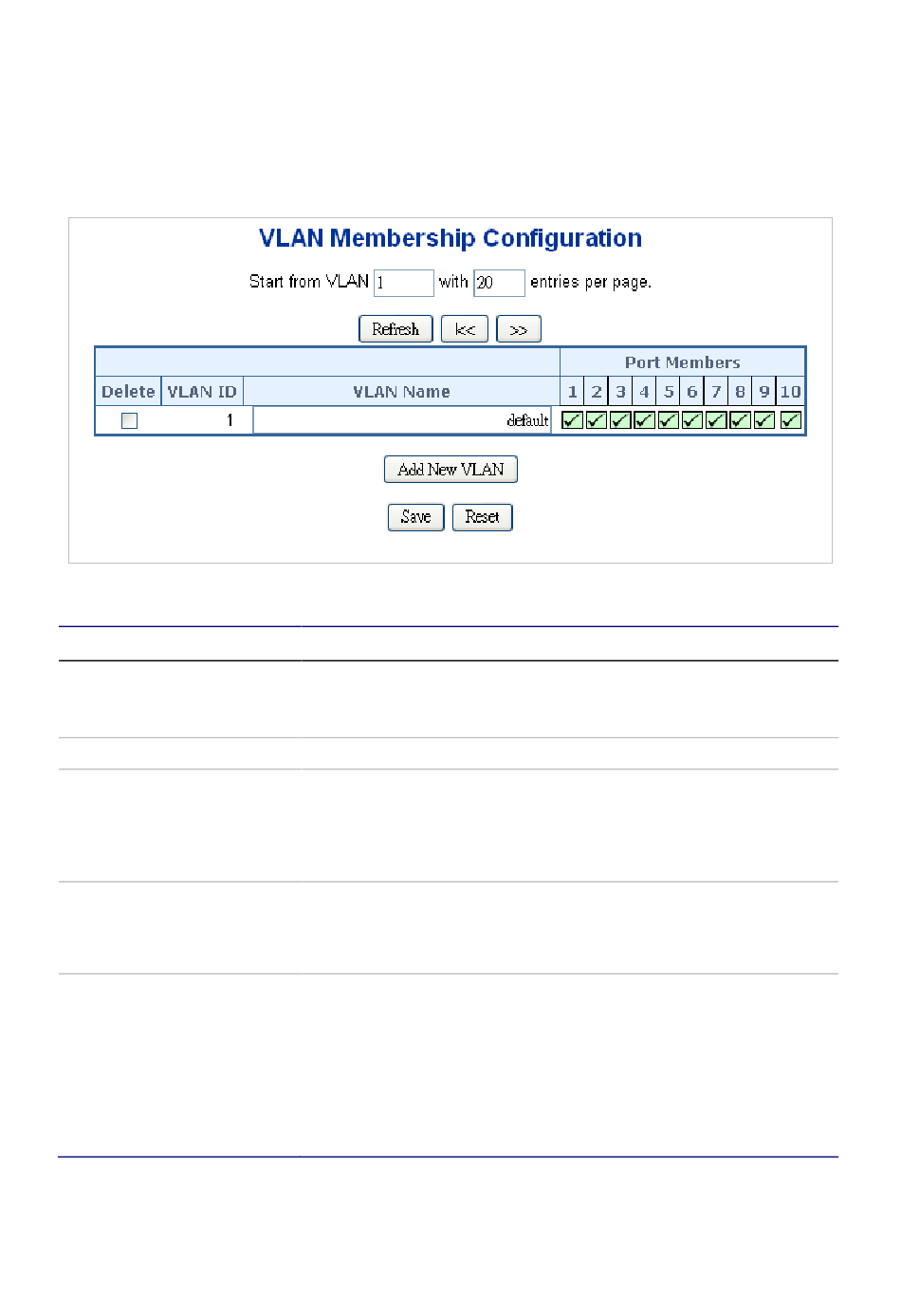

VLAN membership configuration
The VLAN membership configuration for the selected stack switch / unit switch can be
monitored and modified on the VLAN Membership Configuration page. Up to 255
VLANs are supported. This page allows for adding and deleting VLANs as well as
adding and deleting port members of each VLAN..
The page includes the following fields:
Object
Delete
VLAN ID
VLAN Name
Port Members
Add New VLAN
Buttons
• Click
Add New VLAN
NS3552-8P-2S-V2 User Manual
Description
To delete a VLAN entry, select this check box.
The entry will be deleted on all stack switch units during the next
Save.
Indicates the ID of this particular VLAN.
Indicates the name of the VLAN. Maximum length of the VLAN Name
String is 32. VLAN Name can only contain alpha characters or
numbers. The VLAN name should contain at least one alpha
character.The VLAN name can be edited for the existing VLAN
entries or it can be added to the new entries.
A row of check boxes for each port is displayed for each VLAN ID. To
include a port in a VLAN, select a check box. To remove or exclude
the port from the VLAN, deselect a check box. By default, no ports
are members, and all boxes are deselected.
Click
Add New VLAN
to the table, and the VLAN can be configured as needed. Legal
values for a VLAN ID are 1 through 4095.
The VLAN is enabled on the selected stack switch unit when you click
Save. The VLAN is thereafter present on the other stack switch units,
but with no port members.A VLAN without any port members on any
stack unit will be deleted when you click Save.
The button can be used to undo the addition of new VLANs.
to add a new VLAN.
to add a new VLAN ID. An empty row is added
