Chapter 2: Installation

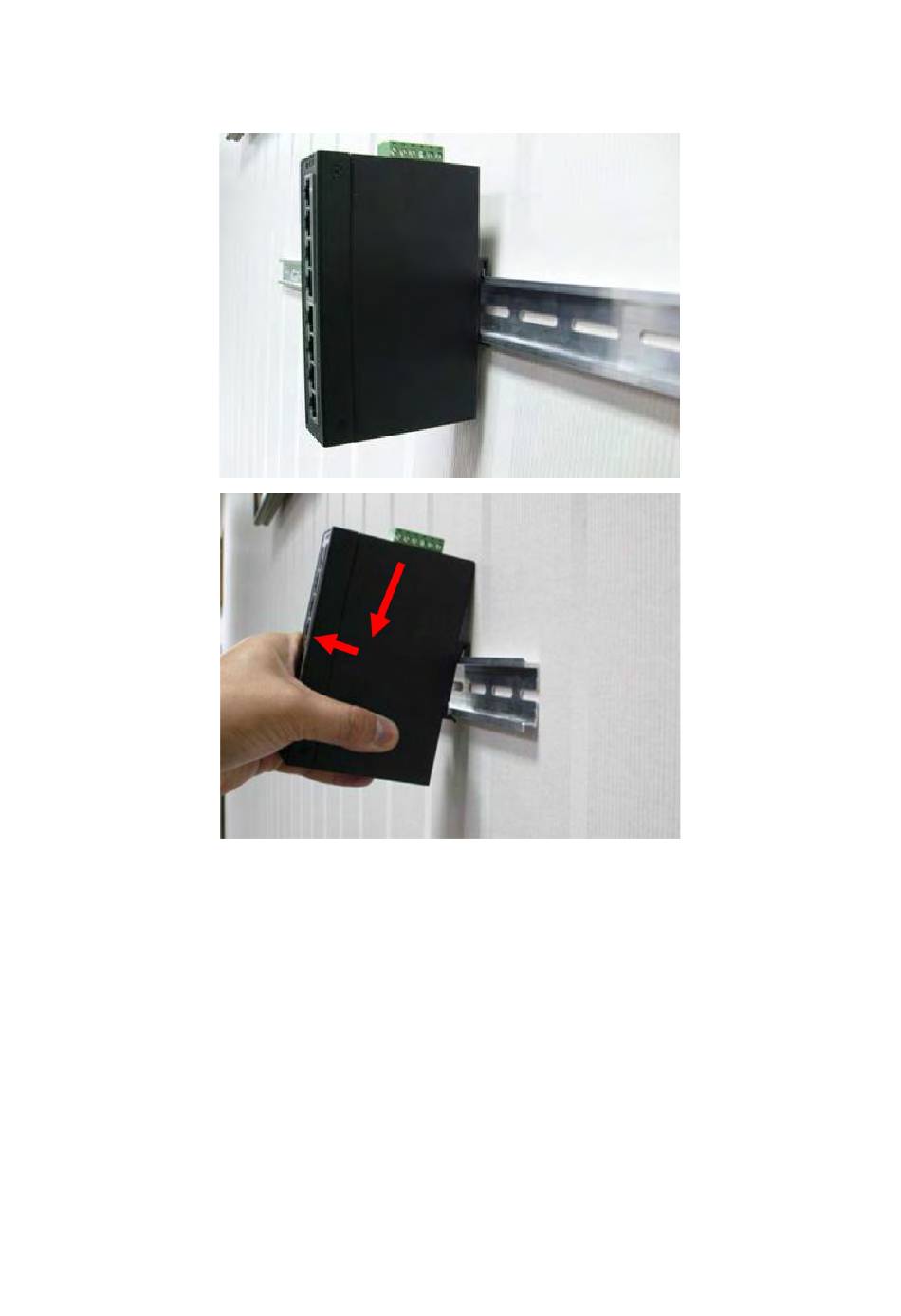

To remove the industrial managed switch from the track:
Carefully remove the DIN-rail from the track.
Wall mount plate mounting
Follow all the wall mount plate installation steps as shown in the example.
Note:
To install the industrial managed switch on the wall:
1. Remove the DIN-rail from the industrial managed switch. Use the screwdriver to
loosen the screws to remove the DIN-rail.
2. Place the wall-mount plate on the rear panel of the industrial managed switch.
28
NS3552-8P-2S-V2 User Manual
