Chapter 4: Web configuration

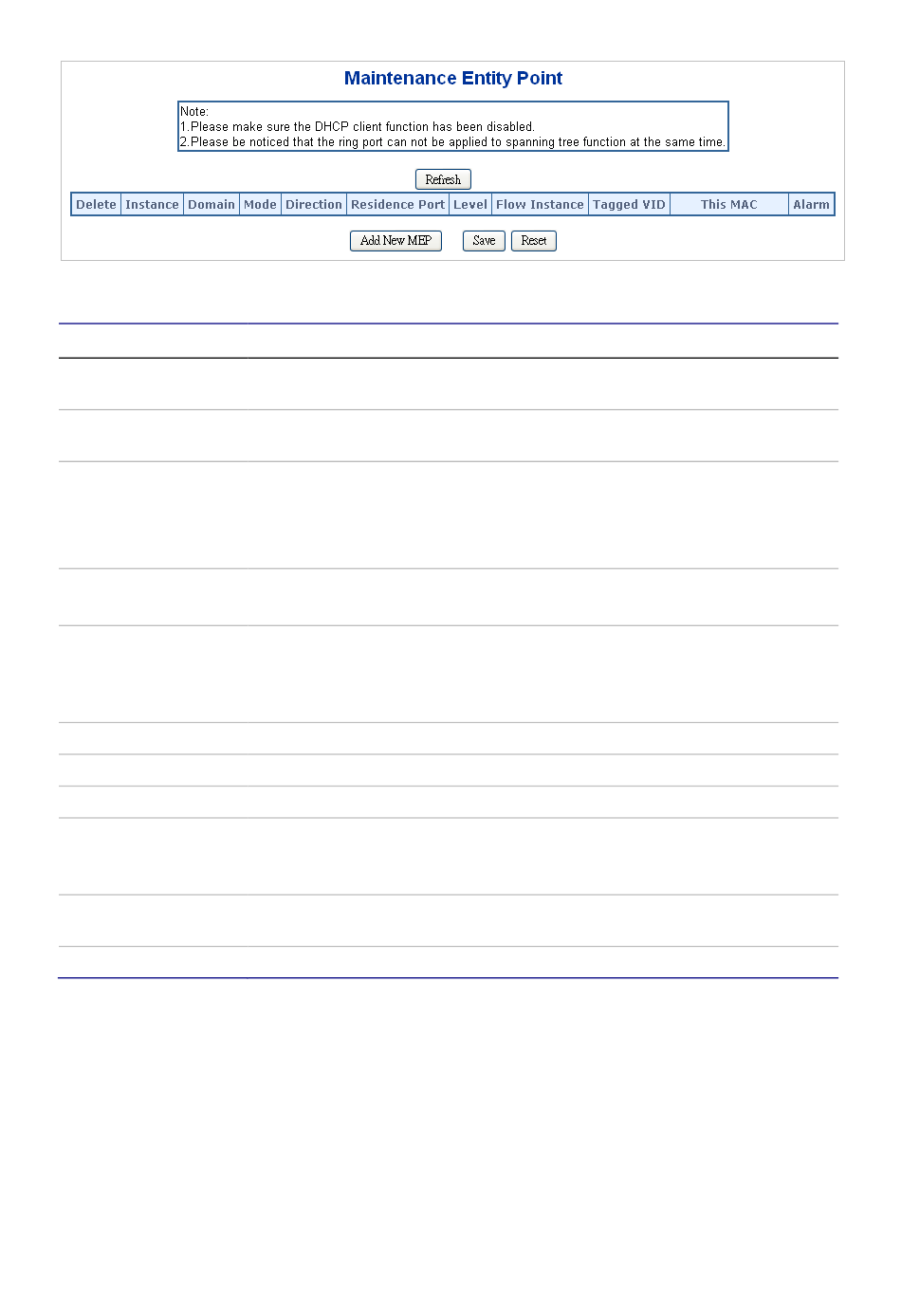

The page includes the following fields:
Object
Delete
Instance
Domain
Mode
Direction
Residence Port
Level
Flow Instance
Tagged VID
This MAC
Alarm
Buttons
• Click
Add New MEP
• Click to refresh the page immediately.
Refresh
• Click to save changes.
Save
• Click to undo any changes made locally and revert to previously saved
Reset
values.
296
Description
Select this check box to mark an MEP for deletion in the next save
operation.
The ID of the MEP. Click on the ID of an MEP to enter the configuration
page.
Port: This is an MEP in the Port Domain. 'Flow Instance' is a Port.
Esp: Future use
Evc: This is an MEP in the EVC Domain. 'Flow Instance' is an EVC.
Mpls: Future use
MEP: This is a Maintenance Entity End Point.
MIP: This is a Maintenance Entity Intermediate Point.
Ingress: This is an ingress (down) MEP monitoring ingress traffic on the
Residence Port.
Egress: This is an egress (up) MEP monitoring egress traffic on the
Residence Port.
The port where MEP is monitoring. See Direction.
The MEG level of this MEP.
The MEP is related to this flow. See Domain.
Port MEP: An outer C/S-tag (depending on VLAN port type) is added with
this VID.
Entering '0' means no TAG added.
The MAC of this MEP can be used by other MEPs when unicast is selected
(Info only).
There is an active alarm on the MEP.
to add a new MEP entry.
