The page includes the following fields:
Object
Port Members
Buttons
• Click to save changes.
Save
• Click to undo any changes made locally and revert to previously saved
Reset
values.
• Select the
Auto-refresh
refresh occurs every three seconds.
• Click to refresh the page immediately.
Refresh
VLAN setting examples
This section covers the following setup scenarios:
• Separate VLAN
• 802.1Q VLAN Trunk
• Port Isolate
Two Separate 802.1Q VLANs
The diagram below shows how the industrial managed switch handles tagged and
untagged traffic flow for two VLANs. VLAN Group 2 and VLAN Group 3 are separated
VLANs. Each VLAN isolates network traffic, so only members of the VLAN receive
traffic from the same VLAN members. The table below describes the port configuration
of the industrial managed switches.
NS3552-8P-2S-V2 User Manual
Description

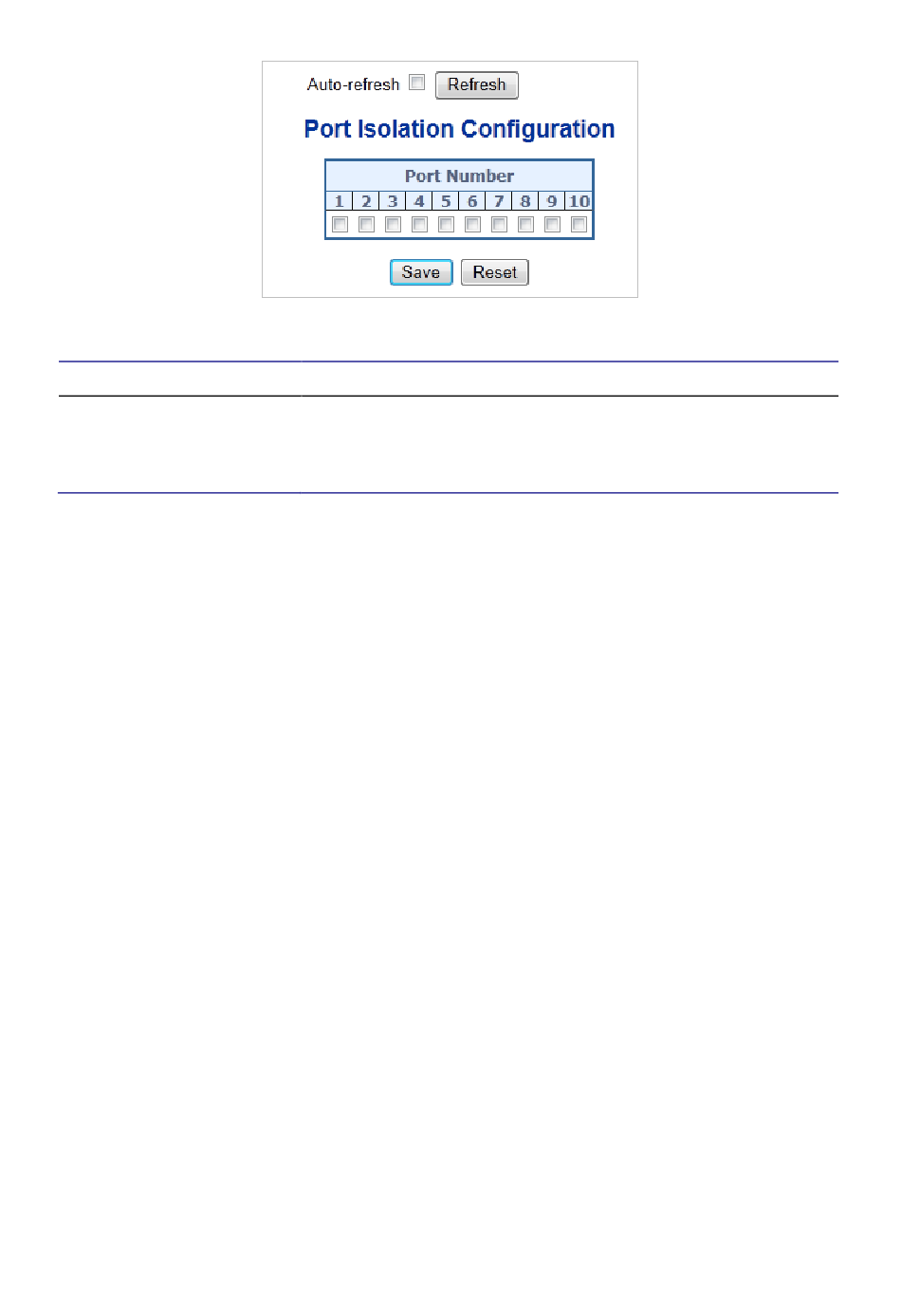

A check box is provided for each port of a private VLAN. When
selected, port isolation is enabled on that port. When deselected, port
isolation is disabled on that port.
By default, port isolation is disabled on all ports.
check box to refresh the page automatically. Automatic
