Product Features - Interlogix NS3552-8P-2S-V2 User Manual

Chapter 1: Introduction

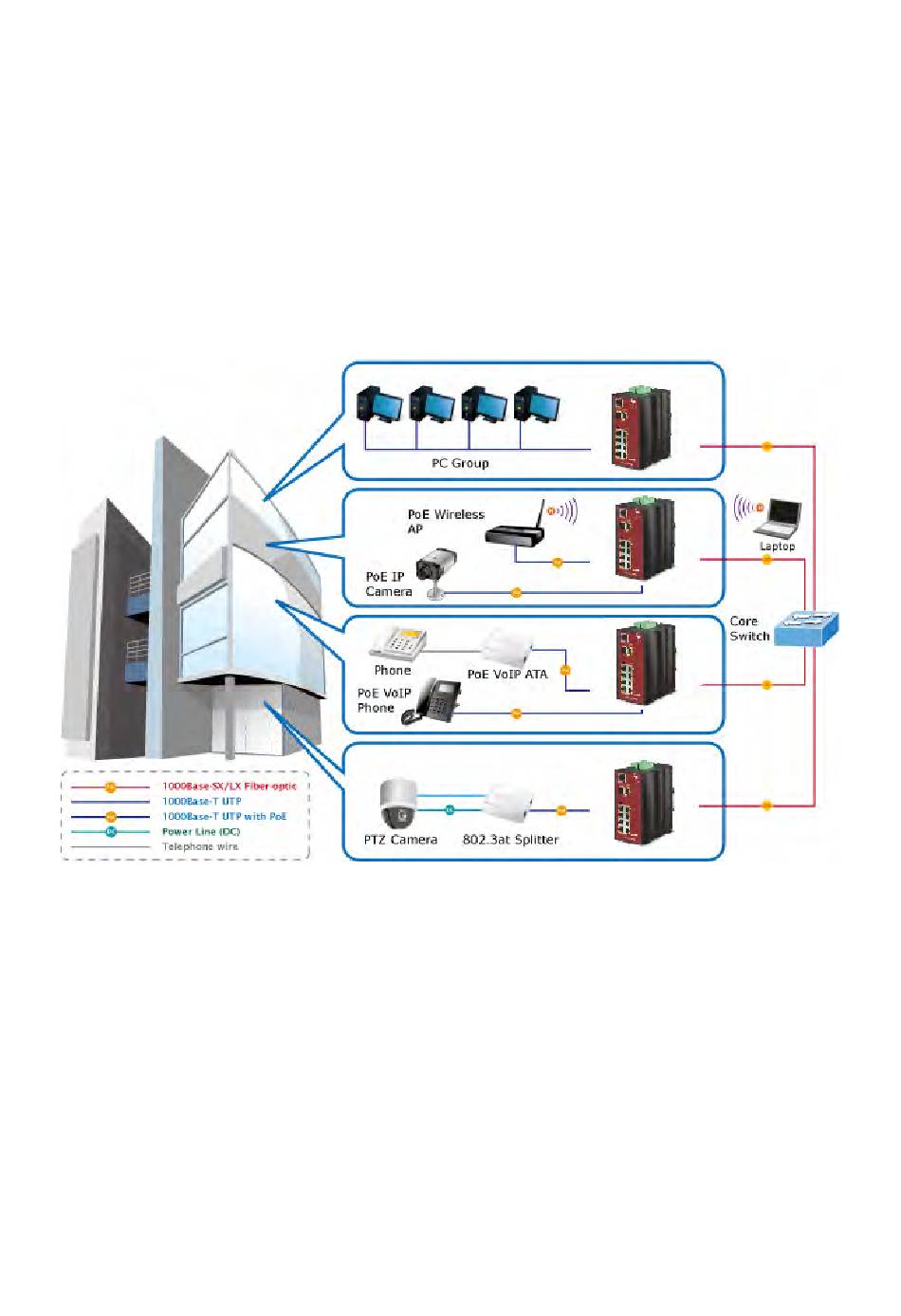

VoIP network in IP office
With a business office expansion, the additional telephones required could be installed
for lower cost via the implementation of a PoE IP telephony system rather than the
traditional circuit wiring telephony system. The industrial managed switch is backward
compatible with 802.3af and helps enterprises to create an integrated data, voice, and
powered network. IP phones and analog telephony adapters can be installed without
additional power cables because the power can be provided via the standard Ethernet
cable from the connected industrial managed switch. With the industrial managed
switch, IP Telephony deployment becomes more reliable and cost effective, which
helps enterprises save tremendous cost when upgrading from traditional telephony
systems to IP telephony communications infrastructure.

Product features

Physical port
• Eight 10/100/1000BASE-T gigabit Ethernet RJ45 ports with IEEE 802.3af / 802.3at
PoE injector.
• Two 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection.
• One RJ45 console interface for basic management and setup.
Power over Ethernet
• Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet / End-Span PSE.
• Complies with IEEE 802.3af Power over Ethernet / End-Span PSE.
10 NS3552-8P-2S-V2 User Manual
