Figure 1: Controller Back View - Oracle FS1-2 Customer Service Manual

Table 2: Controller components and descriptions (continued)
Controller component
HBA [Sun Storage: 16 Gb/s FC optics]
HBA [Sun Storage: 10 Gb/s FCoE optics][iSCSI]
HBA [dual-port 10 GbE PCIe 2.0 Copper and Fiber SFP+]
HBA [8 Gb/s Dual-Port FC PCI-e]
Heat sink
LED alarm board assembly
Motherboard cable kit
Power distribution board (PDB)
Power supply
Rail kit assembly
Riser board assembly
SAS HBA (PCIe-3, 6 Gb/s, 4x4 port)
Some FRUs and CRUs can be accessed from the front or back of the Controller.
For replacing other FRUs and CRUs, you must open the top cover of the
Controller. The following figure shows the components located at the back of the
Controller.

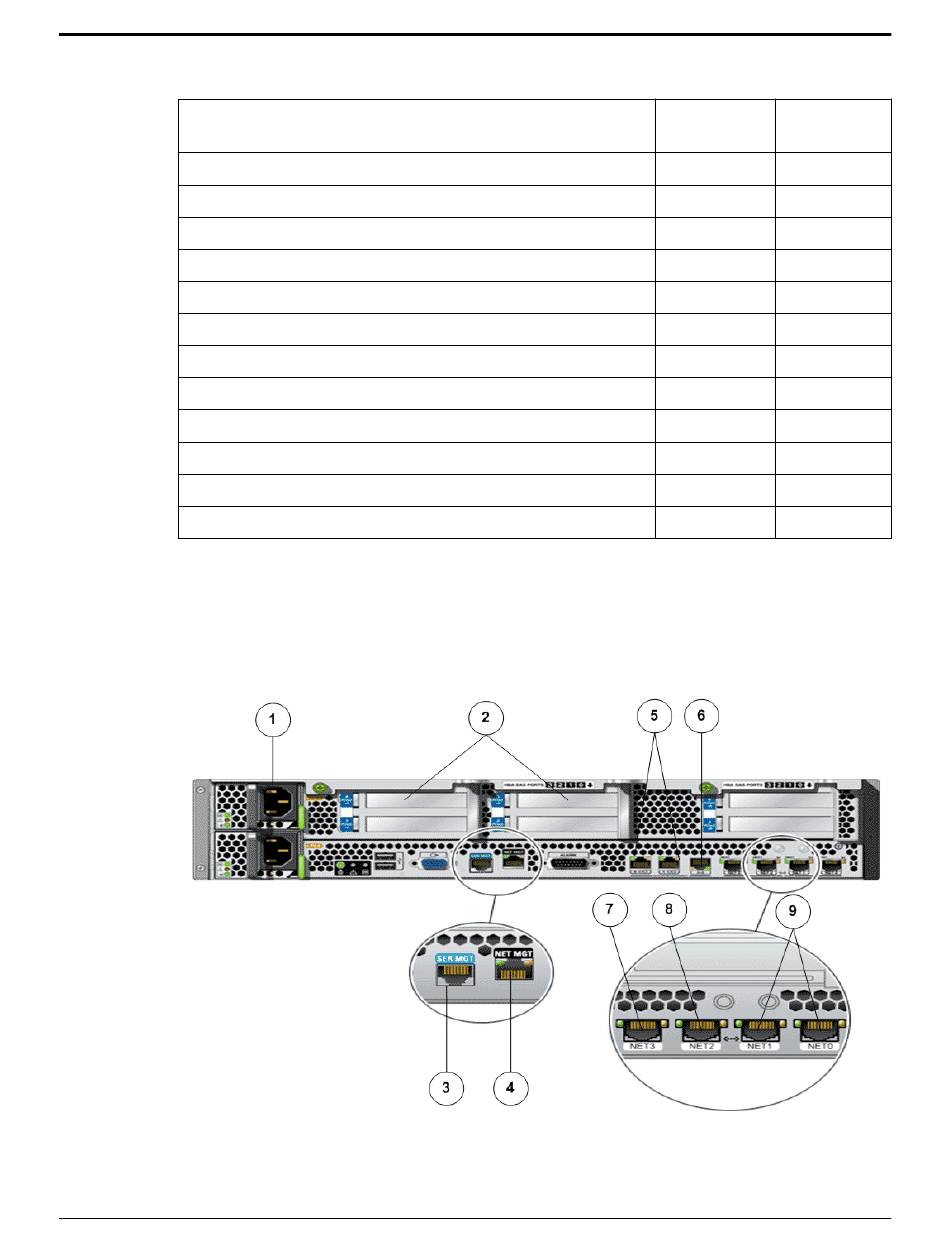

Figure 1: Controller back view

Introduction to Oracle FS1-2 System Service Procedures
Type Hot
serviceable
CRU No
CRU No
CRU No
CRU No
FRU No
FRU No
FRU No
FRU No
CRU Yes
FRU No
CRU No
CRU No
21
