Slide Pilot to Service Position

1 Extend the rack's anti-tilt legs.

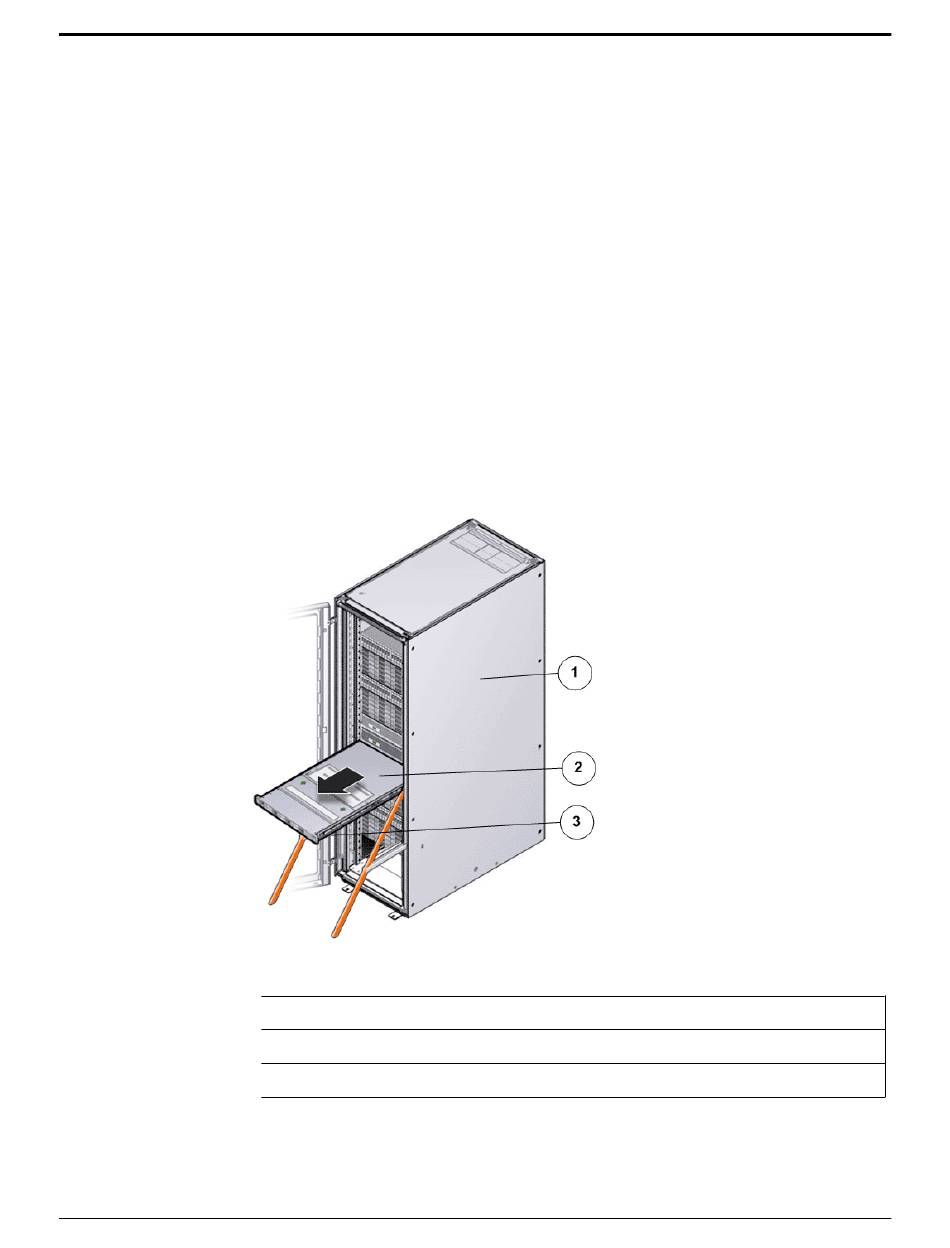

Figure 179: Pilot position during component replacement

Legend
2 Slide the Pilot chassis fully forward until the slide lockout release tabs lock
into position.
standby Pilot. After the active Pilot is offline, the GUI closes. When
the failover is complete, you can log back into the GUI.
If you are replacing a component located on the standby Pilot,
•
Guided Maintenance brings the standby Pilot offline. When
servicing the standby Pilot, failover is not required.
If you are replacing a power supply or a fan module, you are not
•
required to bring the Pilot offline. The power supplies and fan
modules are hot-serviceable.
Note: You can replace one power supply without bringing the Pilot
offline, as long as the second power supply remains online and
operational.
1 Rack
2 Pilot chassis
3 Pilot rails
Pilot Replacement Procedures
215
