Slide Pilot To Service Position; Figure 187: Pilot Position During Component Replacement - Oracle FS1-2 Customer Service Manual

Flash storage system
Hide thumbs Also See for FS1-2:
Table of Contents

Advertisement

Slide Pilot to Service Position

1
Extend the rack's anti-tilt legs.

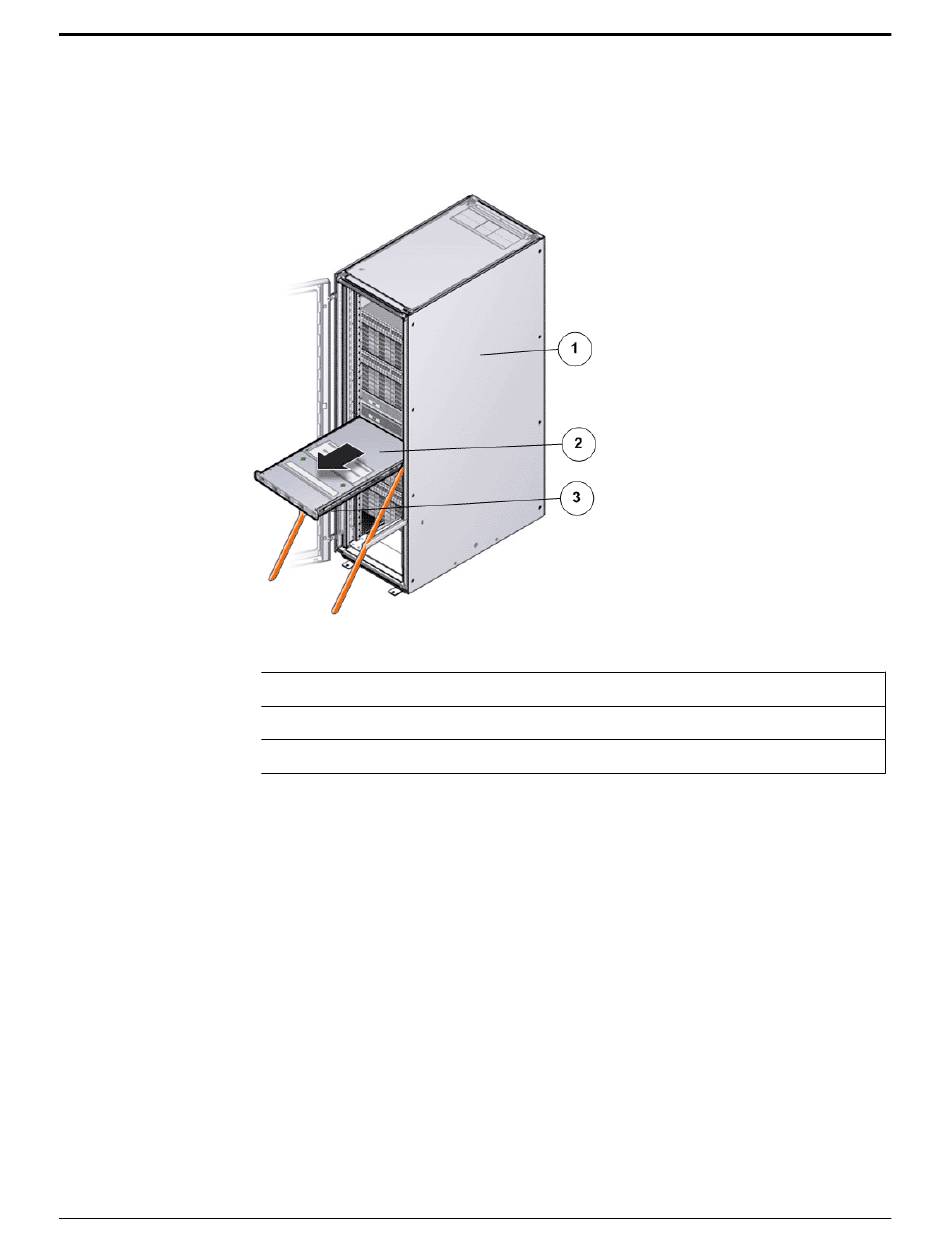

Figure 187: Pilot position during component replacement

Legend
2
Slide the Pilot chassis fully forward until the slide lockout release tabs lock
into position.
1 Rack
2 Pilot chassis
3 Pilot rails
Pilot Replacement Procedures
224
