Figure 17: Slide Rail Middle Section Unlocked - Oracle FS1-2 Customer Service Manual

Legend
1 Slide rail
2 Mounting bracket release button
3 Mounting bracket

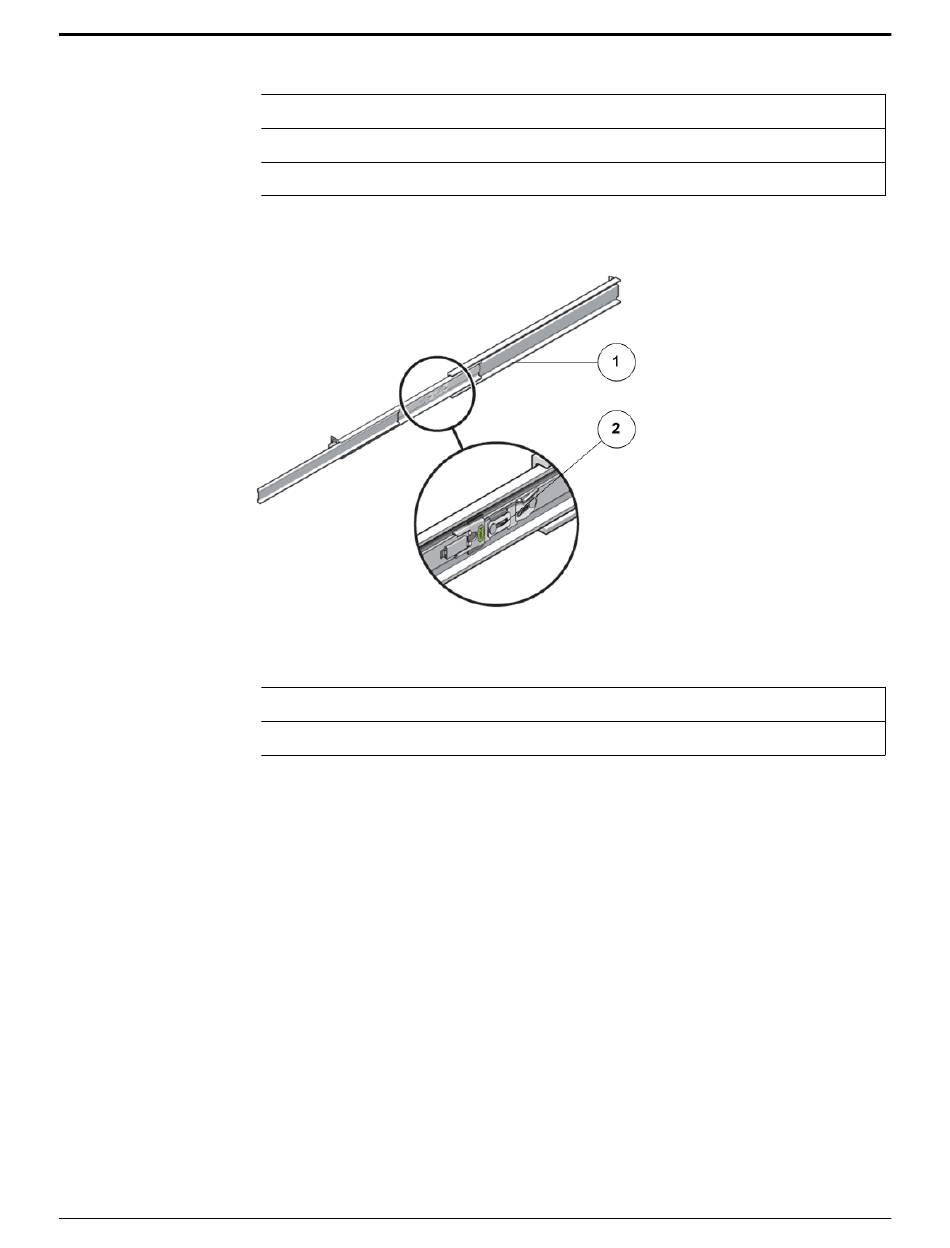

Figure 17: Slide rail middle section unlocked

Legend
1 Slide rail
2 Metal lever
Tip: Press the metal lever on the middle section of the slide rail to unlock
the slide rail, and then push the middle section back into the rack.
3 Attach a mounting bracket to the right side of the Controller chassis.
