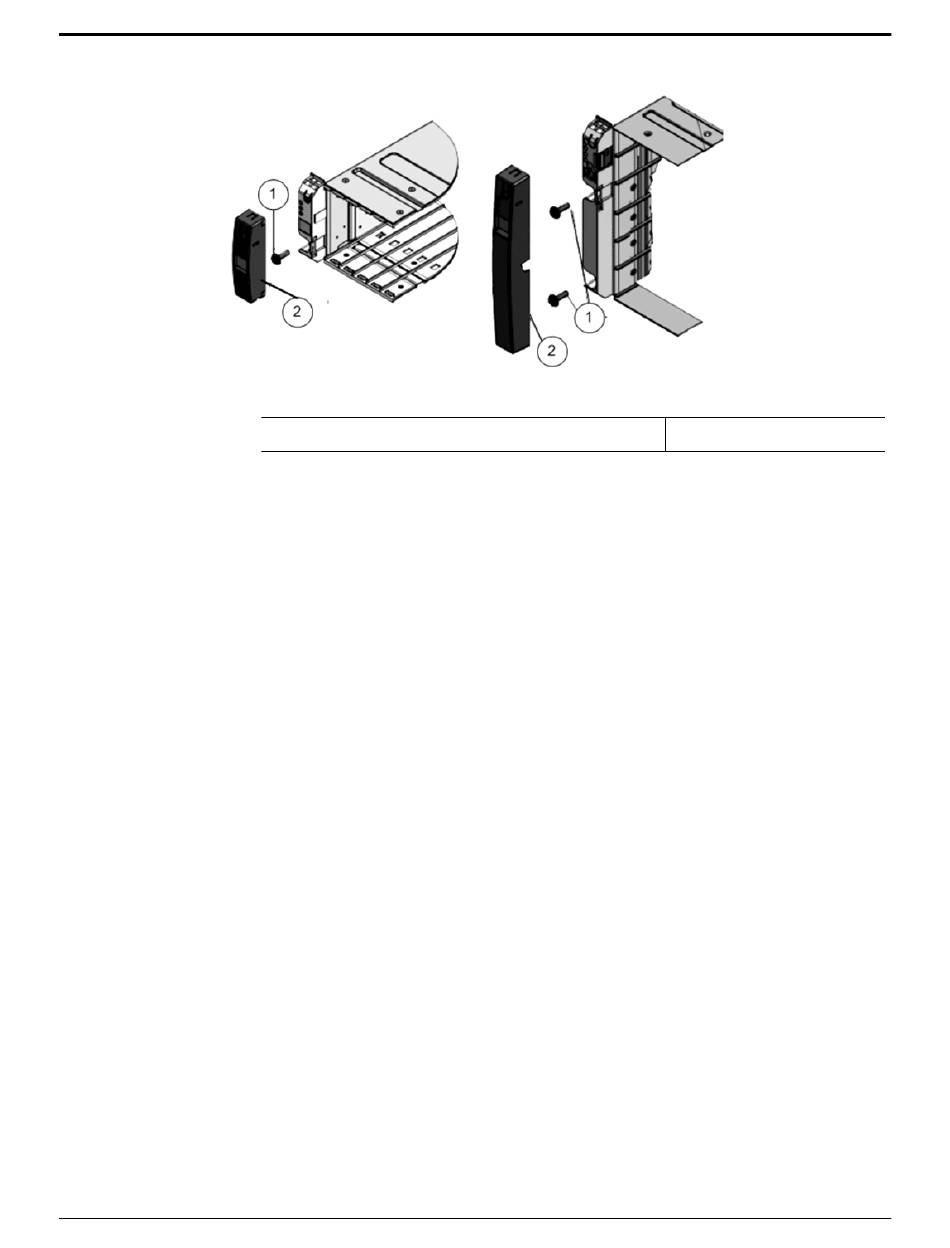

Figure 46: Left front-side cap and Phillips 13mm head hex flange screw

Legend
After you have secured the Drive Enclosure to the rails, attach the front-
side caps to the Drive Enclosure.
7 Insert the I/O modules, the power cooling modules, and all of the drives
into their corresponding slots in the chassis.

Insert a DE2-24C Drive Enclosure Into a Rack

1 Carefully lift the Drive Enclosure to the location of the prepared slot and
rest the Drive Enclosure on the bottom ledge of the left and right rails.
Caution:
1 Phillips 13mm head hex flange screw
The DE2-24C Drive Enclosure weighs approximately 102 lbs (46 kg).
•
The DE2-24P Drive Enclosure weighs approximately 53 lbs (24 kg).
Use a mechanical lift when handling fully populated Drive
Enclosures.
If you are working alone or you do not have access to a mechanical
•
lift, you can reduce the weight of a Drive Enclosure by removing the
drives, the I/O modules, and the power cooling modules from the
chassis. An empty DE2-24C Drive Enclosure chassis weighs
approximately 20 lbs (9.07 kg). An empty DE2-24P Drive Enclosure
chassis weighs approximately 15.6 lbs (7.07 kg).
The reduced weight enables one person to handle an empty Drive
•
Enclosure chassis. If you are not comfortable managing the weight of
the chassis, request help from the local account team.
Be careful not to drop a Drive Enclosure. Dropping a Drive
•
Enclosure can cause damage and can reduce the life of the drives.
Oracle FS1–2 Global Procedures
2 Left front-side cap
