Remove an Air Filter

1 At the front of the Controller chassis, locate the air filter release tabs.
2 Press the release tabs inwards at the same time to unlock the tabs and
disengage the air filter.

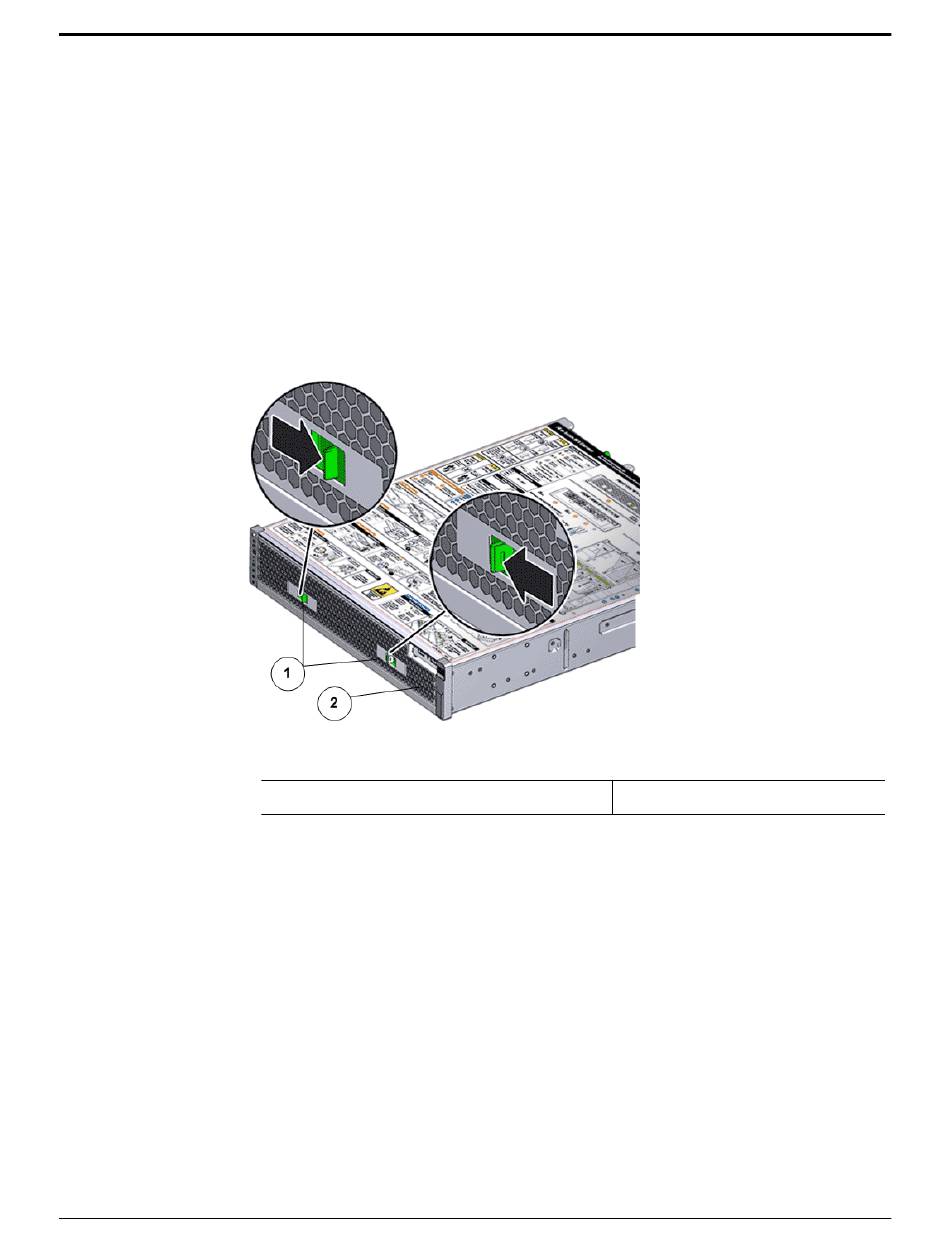

Figure 61: Air filter release tabs

Legend
3 Carefully rotate the top of the air filter outwards and as the release tabs
disengage, lift out the filter.
1 Release tabs
Controller Replacement Procedures
2 Air filter
