Insert A Riser; Figure 84: Insert Riser - Oracle FS1-2 Customer Service Manual

Legend
Important: Ensure that any HBAs that must be removed from the failed
riser and placed onto the replacement rise are inserted into the same slots
on the replacement riser.

Insert a Riser

1 Lower the riser onto the Controller motherboard and press the riser edge
connector securely into the socket.
Important: Ensure that any HBAs that must be removed from the failed
riser and placed onto the replacement rise are inserted into the same slots
on the replacement riser.

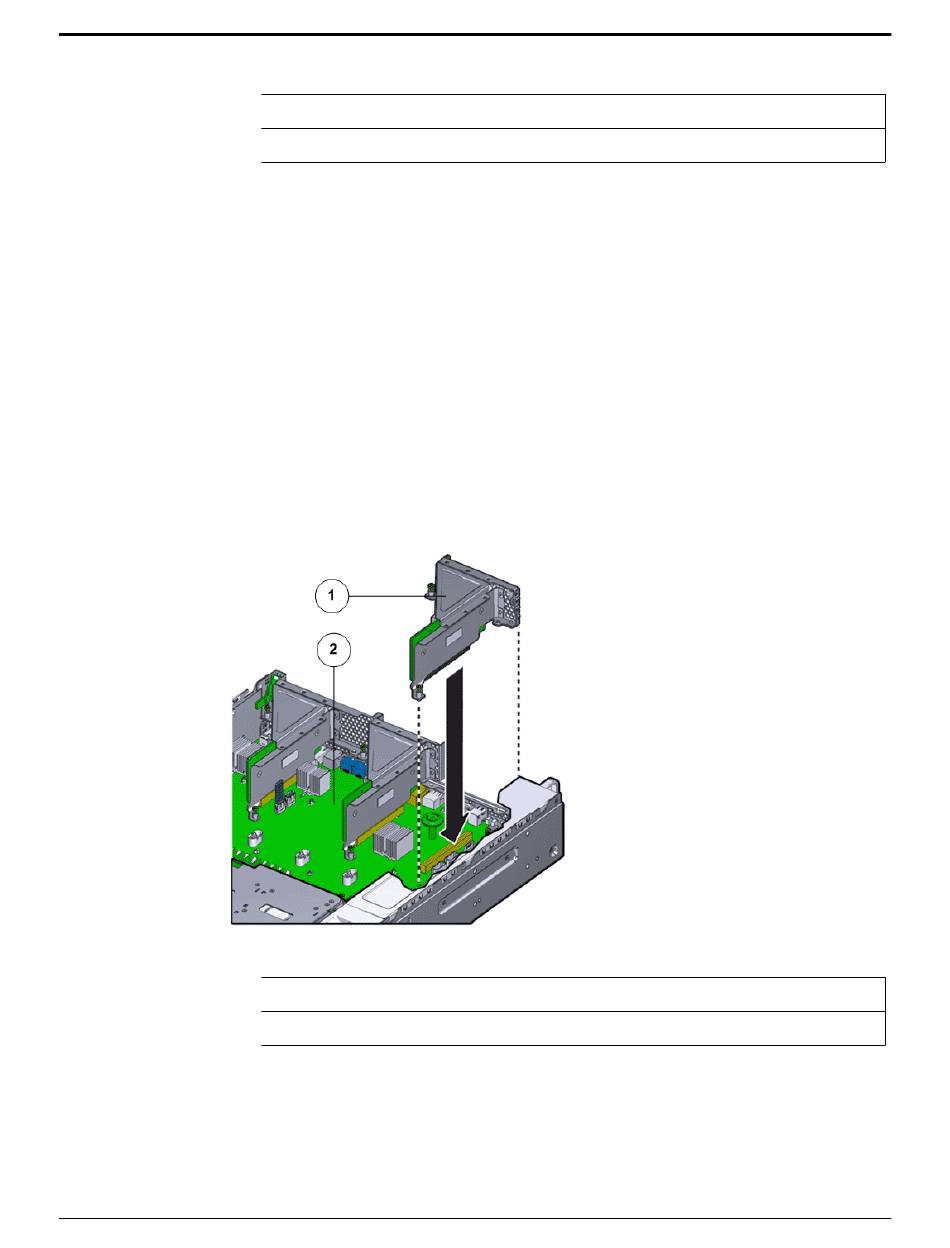

Figure 84: Insert riser

Legend
2 After the riser is seated properly inside the Controller, tighten the two
captive Phillips screws on both sides of the riser to secure the riser on the
Controller motherboard.
1 Riser
2 Controller motherboard
1 Riser
2 Controller motherboard
